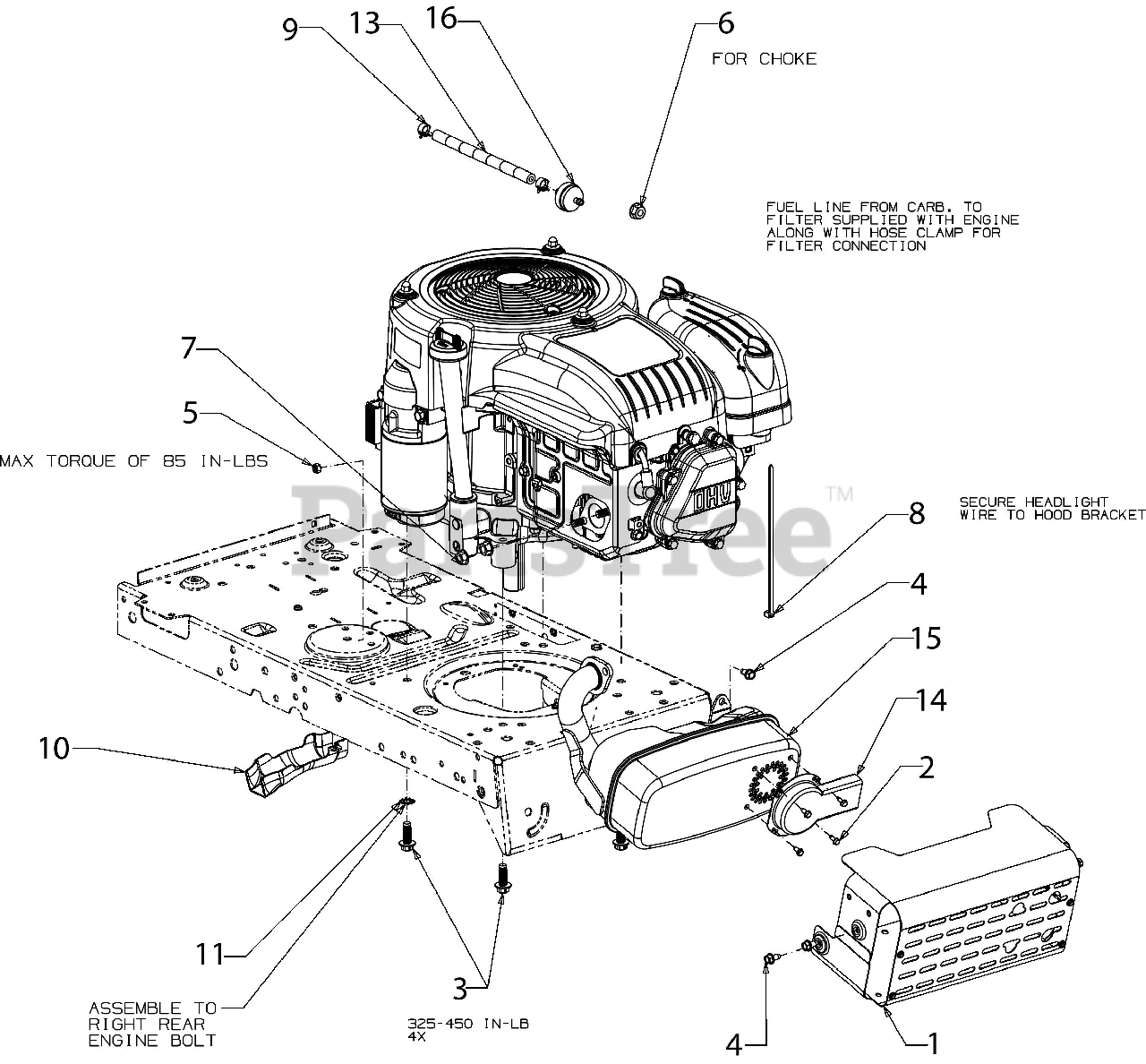

247.273740 (13A878XT099) - Craftsman T1500 Lawn Tractor (2017) Engine Accessories Parts Diagram

T1500 Lawn Tractor

Engine Accessories Parts Diagram

  • Title

1

MTD 683-04549C

MUFFLER SHIELD
(Superseded to 683-05460A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-04549C-0606

SHIELD-MUFFLER - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

MTD 683-04549C-0637

Muffler Shield - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

2

MTD 710-0227

HEX SCREW WASHER HD #8-18 x 0.500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, only 4 left!

0

4

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

5

MTD 912-0691

HEX NUT
(Superseded to 712-0691)

$

$

Not available

6

MTD 912-3005

HEX FLANGE NUT
(Superseded to 712-3005)

$6.99

$

Usually ships in 3-6 days

0

7

MTD 712-3086

HEX FLANGE NUT M8X

$4.49

$

In Stock, only 2 left!

0

8

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

9

MTD 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 20+

0

10

MTD 731-05628

OIL DRAIN SLEEVE

$8.49

$

In Stock, only 1 left!

0

11

MTD 736-0148

LOCK WASHER 3/8

$3.99

$

In Stock, Qty 20+

0

13

MTD 751-10349-13

FUEL HOSE LOW PERMEATION

$17.99

$

In Stock, only 3 left!

0

14

MTD 751-11053A

EXHAUST DELECTOR
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

15

MTD 951-14585

MUFFLER (SINGLE)

$118.99

$

Usually ships in 3-6 days

0

16

MTD 951-3013

FUEL FILTER

$5.49

$

In Stock, Qty 20+

0
