247.273300 (13BP78XS099) - Craftsman T3000 Lawn Tractor (2018) Fuel Tank Parts Diagram

T3000 Lawn Tractor

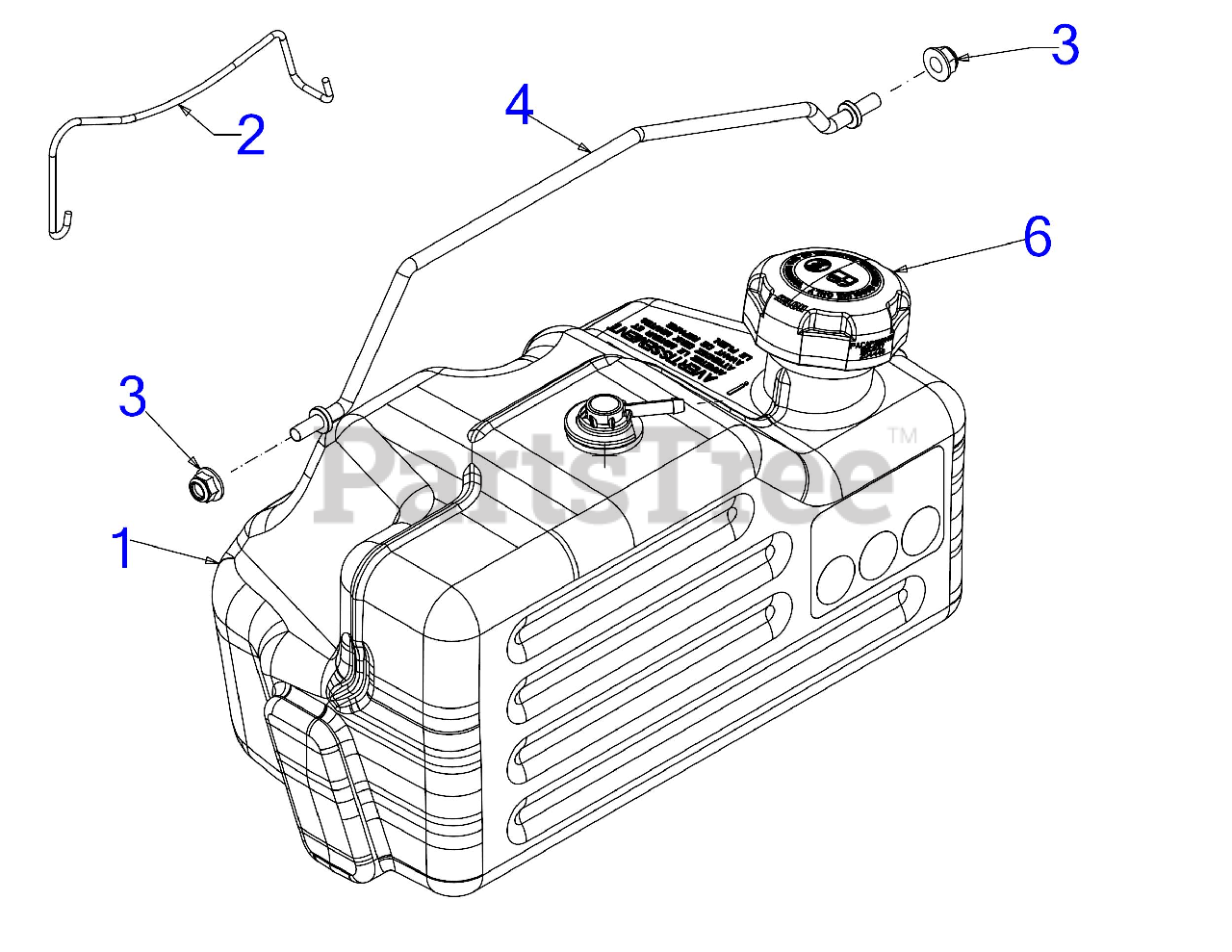

Fuel Tank Parts Diagram

  • Title

1

MTD 951-04295A

FUEL TANK ASSEMBLY

$186.99

$

Usually ships in 3-6 days

0

1

MTD 735-04081

RUBBER GROMMET 23.0 ID x 35.5 OD

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

1

MTD 751-12118

ROLLOVER FUEL VALVE

Note: (Not Shown)

$35.99

$

In Stock, only 2 left!

0

2

MTD 683-04448-0637

BATTERY ROD ASSEMBLY

$10.99

$

In Stock, Qty 13

0

3

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

MTD 747-05373

FUEL TANK CLAMP ROD

$11.99

$

Usually ships in 3-6 days

0

6

MTD 951-12179C

FUEL CAP W/TETHER

$38.99

$

In Stock, only 4 left!

0

MTD 751-12089-34

VENT HOSE 3/16 ID

Note: (Not Shown)

$10.99

$

In Stock, only 1 left!

0
