247.270480 (14A7A5ZQ099) - Craftsman G8200 Garden Tractor (2017) Drive Parts Diagram

G8200 Garden Tractor

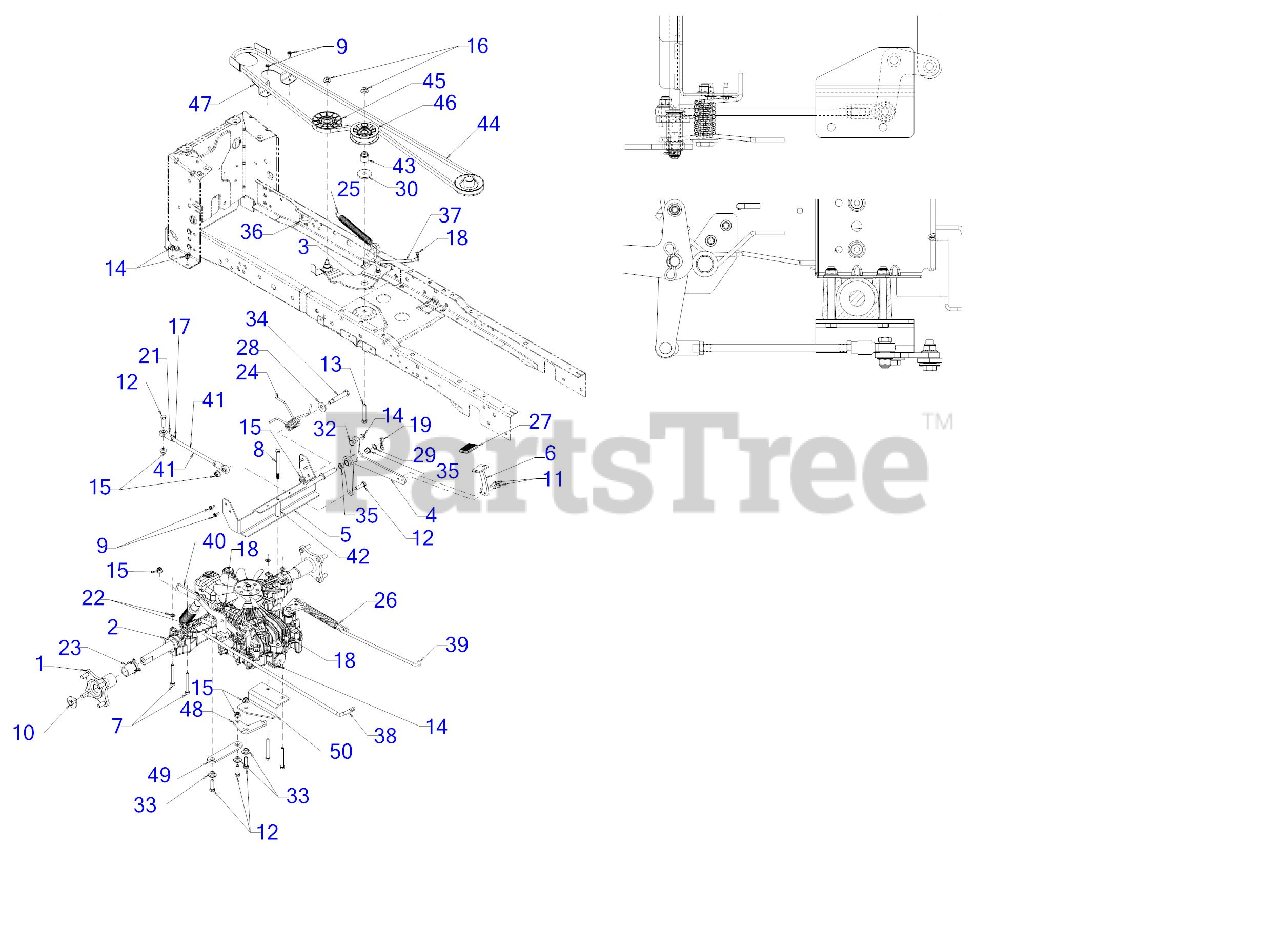

Drive Parts Diagram

  • Title

1

MTD 918-04317

WHEEL HUB ASSEMBLY

$116.99

$

Usually ships in 3-6 days

0

1

MTD 710-0852

STUD 7/16-14 x 1.6

Note: (Not Shown)

$6.49

$

In Stock, only 4 left!

0

2

MTD 918-06075

HYDRO TRANS ASSEMBLY

Note: (See Separate Breakdown)

$2191.99

$

Usually ships in 3-6 days

0

3

MTD 983-05090A

IDLER BRACKET ASSEMBLY

$73.99

$

In Stock, only 2 left!

0

3

MTD 750-0890

SPACER

Note: (Not Shown)

$6.99

$

In Stock, Qty 6

0

4

MTD 683Z05301

DIFF PEDAL PIVOT ASSEMBLY (PLATED)

$73.99

$

Usually ships in 3-6 days

0

5

MTD 683-05303

TRANSMISSION MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-05303-0637

BRKT-TRNSMSN MTG - POWDER BLACK (0637)

$81.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

6

MTD 683Z05323

DIFF LOCK PEDAL ASSEMBLY (PLATED)

$40.99

$

Usually ships in 3-6 days

0

7

MTD 710-0176

HEX SCREW 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

8

MTD 710-0190

HEX SCREW 5/16-18 x 4.00

$7.99

$

Usually ships in 3-6 days

0

9

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 13

0

10

MTD 710-06168

SCREW 3/8-16 x .75 GR5.1

$6.49

$

Usually ships in 3-6 days

0

11

MTD 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 10

0

13

MTD 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

14

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

0

18

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

19

MTD 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, only 3 left!

0

21

MTD 723-04038

ROD END 3/8 ID

$60.99

$

Usually ships in 3-6 days

0

22

MTD 726-0201

PUSH NUT

$6.99

$

Usually ships in 3-6 days

0

23

MTD 731-10547A

AXLE SLEEVE 1.02 ID x 1.60 LG

$4.49

$

Usually ships in 3-6 days

0

24

MTD 732-05080

DIFF PEDAL TORSION SPRING

$8.49

$

Usually ships in 3-6 days

0

25

MTD 732-05108A

EXTENSION SPRING .790 DIA x 8.41

$12.99

$

Usually ships in 3-6 days

0

26

MTD 732-05146

EXTENSION SPRING 0.90 DIA x 8.14

$12.99

$

Usually ships in 3-6 days

0

27

MTD 735-05173

DIFF LOCK PEDAL PAD

$15.99

$

Usually ships in 3-6 days

0

28

MTD 936-0179

FLAT WASHER
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

29

MTD 936-0616

THRUST WASHER

$4.99

$

Usually ships in 3-6 days

0

30

MTD 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

32

MTD 738-04320

SHOULDER SCREW

$5.49

$

In Stock, only 2 left!

0

33

MTD 738-04503

SHOULDER SPACER

$4.49

$

Usually ships in 3-6 days

0

34

MTD 738-1011A

SHOULDER SCREW .50 x 2.23 3/8-16

$8.49

$

In Stock, Qty 11

0

35

MTD 741-0491

NYLINER BEARING

$5.49

$

In Stock, only 3 left!

0

36

MTD 747-05608

DECK SPRING HOOK
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

37

MTD 747-06193A

IDLER BRACKET LINK ROD
(Superseded to 747-06193B)

$11.99

$

In Stock, only 1 left!

0

38

MTD 747-06713A

HYDRO CONTROL ROD (PLATED)

$55.99

$

Usually ships in 3-6 days

0

39

MTD 747-06714

BRAKE CONTROL ROD (PLATED)

$39.99

$

Usually ships in 3-6 days

0

40

MTD 747-06720A

HYDRO DISENGAGE ROD (TUFF TORQ)

$17.99

$

Usually ships in 3-6 days

0

41

MTD 747-06754

ROD .375 OD X 8.75 LG (PLATED)

$15.99

$

Usually ships in 3-6 days

0

42

MTD 748-05012

SPACER .337 ID X 2.02 LG

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 748-05012-0637

SPACER .337 ID X - POWDER BLACK (0637)

$7.49

$

Usually ships in 3-6 days

0

$5.99

$

Usually ships in 3-6 days

0

43

MTD 748-05037B

SHOULDER SPACER

$5.49

$

In Stock, Qty 11

0

44

MTD 954-05156A

V-BELT A SEC X 90.00

$87.99

$

In Stock, only 1 left!

0

45

MTD 756-05024

V-IDLER PULLEY 3.56 OD

$25.99

$

In Stock, only 2 left!

0

46

MTD 756-05032

FLAT IDLER PULLEY 3.00 OD

$26.99

$

In Stock, Qty 10

0

47

MTD 783-09170

BELT KEEPER BRACKET
(Superseded to 783-09170A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-09170-0637

BRKT-BELT KEEPER - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

48

MTD 783-09190

PIVOT BELLCRANK (PLATED)

$17.99

$

Usually ships in 3-6 days

0

49

MTD 783-09192

BELLCRANK LINK (PLATED)

$17.99

$

Usually ships in 3-6 days

0

50

MTD 783-09299

BELLCRANK MOUNTING BRACKET (PLATED)

$34.99

$

Usually ships in 3-6 days

0
