247.270380 (132PA1ZS099) - Craftsman T7800 Lawn Tractor (2017) Electrical Parts Diagram

T7800 Lawn Tractor

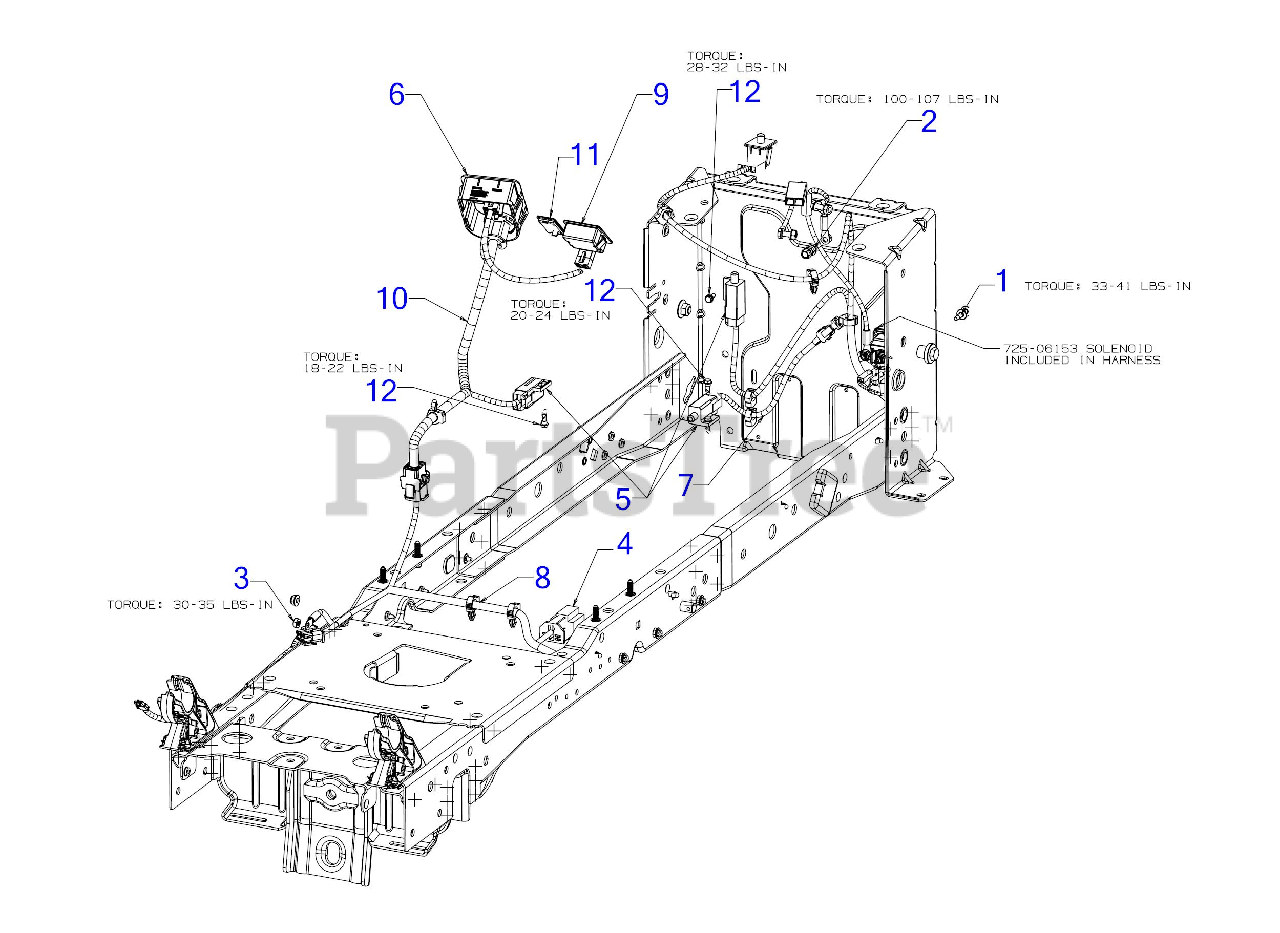

Electrical Parts Diagram

  • Title

1

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 10

0

2

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-05106

HEX NUT 1/4-20

$3.49

$

Usually ships in 3-6 days

0

4

MTD 725-04232

3 POLE SWITCH ( NC-NO-NO)

$49.99

$

In Stock, only 3 left!

0

5

MTD 725-04363

INTERLOCK SWITCH (NO/NC)

$15.99

$

In Stock, Qty 10

0

6

MTD 925-06119B

IGNITION MODULE SWITCH RMC (MAN PTO BLK)
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

7

MTD 925-06130B

MAIN HARNESS M-PTO/RMC/HRMTR
(Superseded to 925-06130E)

$194.99

$

Usually ships in 3-6 days

0

8

MTD 925-06167

REVERSE HARNESS

$13.99

$

In Stock, only 1 left!

0

9

MTD 925-06221B

SERVICE MNDR/HOUR METER- BLUETOOTH

$207.99

$

Usually ships in 3-6 days

0

10

MTD 925-06261

HARNESS

$47.99

$

Usually ships in 3-6 days

0

11

MTD 731-10634

DASH PLUG

$5.49

$

In Stock, only 1 left!

0

12

MTD 738-04237A

SHOULDER SCREW

$6.49

$

In Stock, Qty 7

0

MTD 725-06153

SOLENOID
(Superseded to 725-06153A)

Note: (Not Shown)

$42.99

$

In Stock, Qty 13

0
