247.270250 (13A4065-099) - Craftsman Lawn Tractor (2002) (Sears) Grass Catcher Assembly Parts Diagram

Lawn Tractor

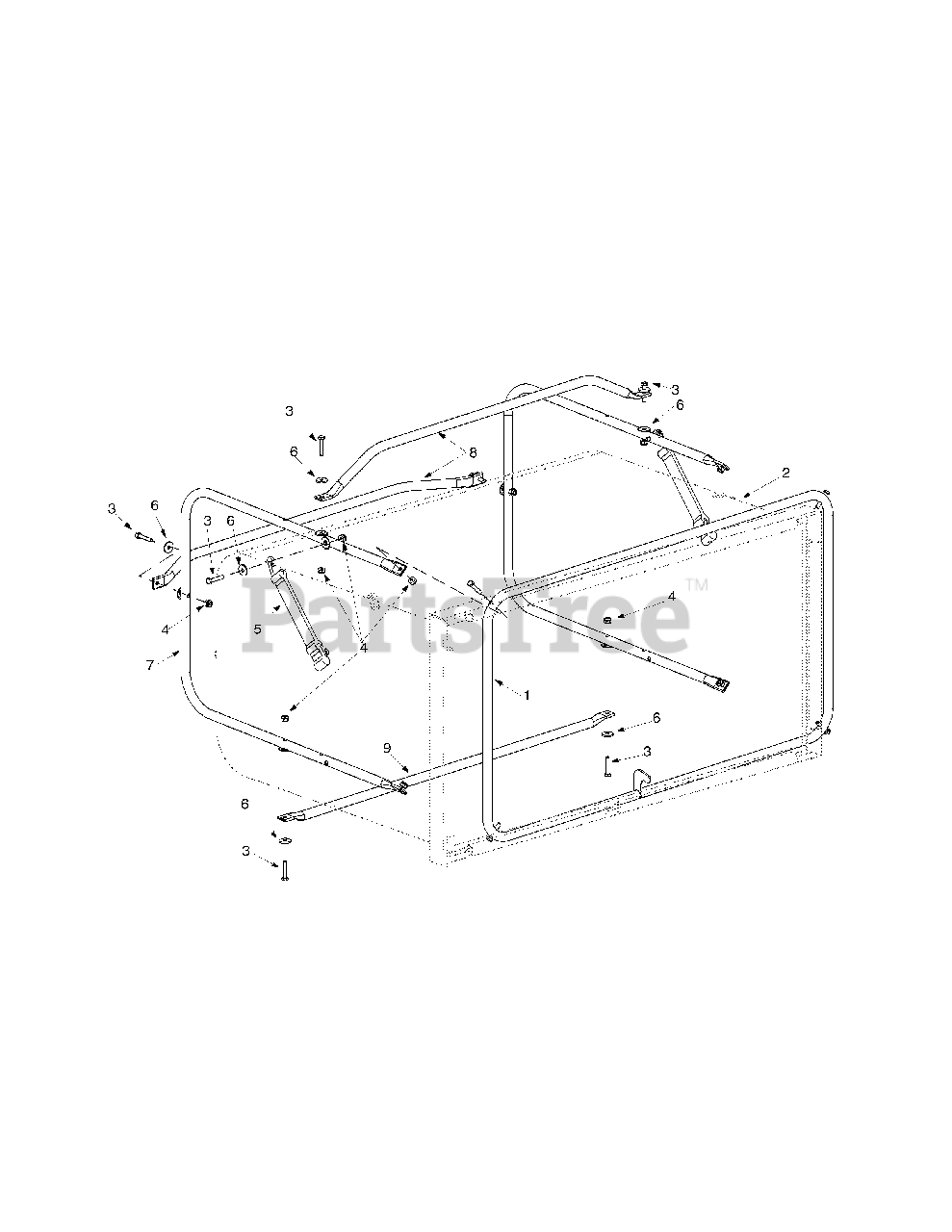

Grass Catcher Assembly Parts Diagram

  • Title
1

MTD 649-0126-0637

Tube Assembly: Front Frame

$

$

Not available

2

MTD 664-04003

Grass Catcher Bag

$

$

Not available

3

MTD 710-1194

Mach. Screw #10-24 x 1.0

$3.99

$

Usually ships in 3-6 days

0

4

MTD 712-0161

Lock Nut #10-24

$4.49

$

In Stock, Qty 20+

0

5

MTD 923-0383

Retainer Strap

$15.99

$

In Stock, Qty 5

0

6

MTD 936-0400

Flat Washer
(Superseded to 736-0400)

$

$

Not available

7

MTD 749-1260

Side Tube: Frame

$

$

Not available

8

MTD 749-1262

Bag Handle

$

$

Not available

9

MTD 749-1269

Support Tube

$

$

Not available
