247.270250 (13A4065-099) - Craftsman Lawn Tractor (2002) (Sears) Drive Assembly Parts Diagram

Lawn Tractor

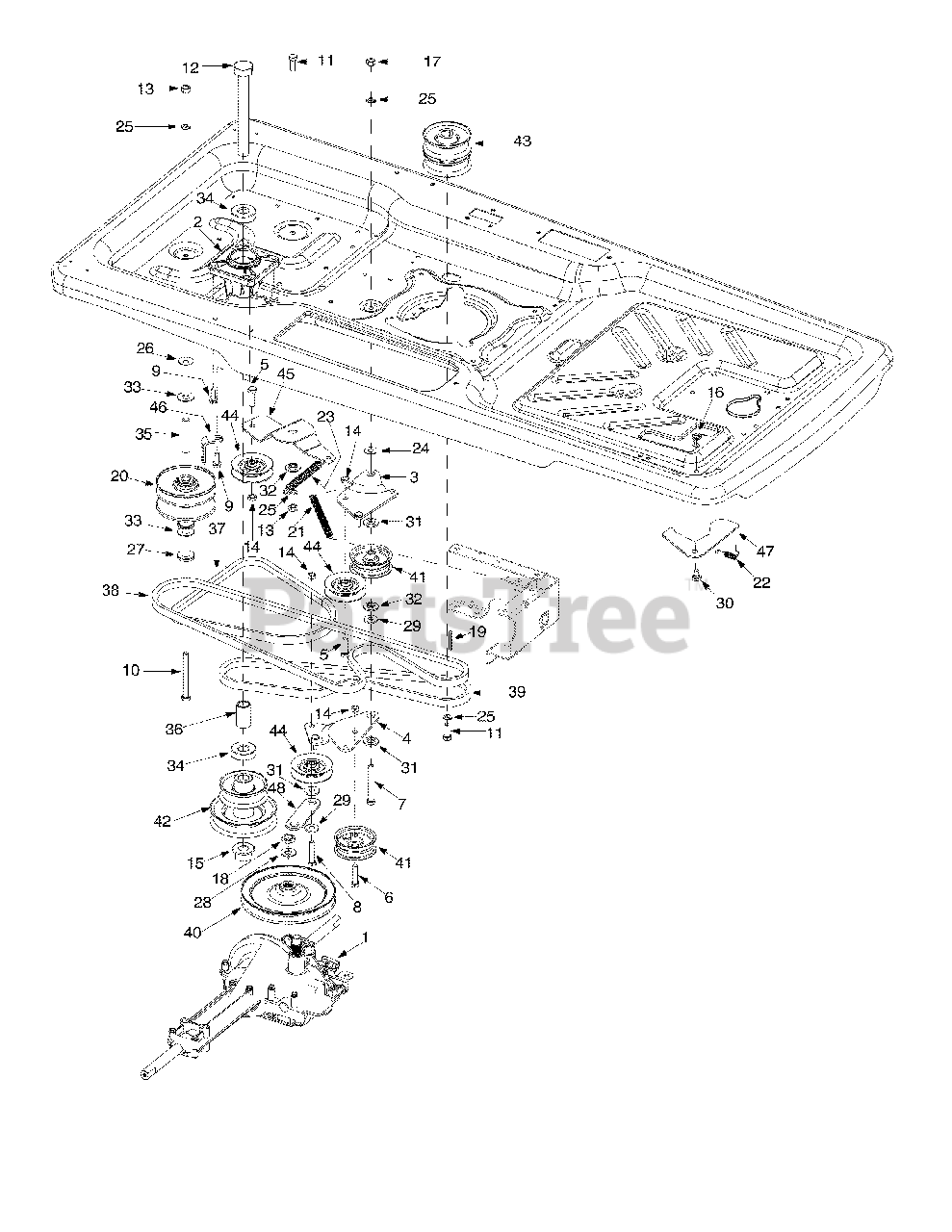

Drive Assembly Parts Diagram

  • Title

1

MTD 918-04007A

Transmission Assembly

$

$

Not available

2

MTD 619-0042A

Spindle Housing
(Superseded to 753-07015)

$57.99

$

In Stock, only 1 left!

0

3

MTD 683-0446

Idler Bracket Assembly

$

$

Not available

4

MTD 683-0447

Idler Bracket Assembly

$

$

Not available

5

MTD 710-0191

Hex Bolt 3/8-24 x 1.25"

$4.99

$

In Stock, Qty 9

0

6

MTD 710-0459A

Hex Bolt 3/8-24 x 1.50"

$6.99

$

In Stock, Qty 8

0

7

MTD 710-0521

Hex Bolt 3/8-16 x 3.0"

$5.49

$

In Stock, Qty 11

0

8

MTD 710-0539

Hex Bolt 3/8-24 x 1.75"

$4.99

$

In Stock, Qty 12

0

9

MTD 710-0650

TT Screw 5/16-18 x 0.875"

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0902

Hex Screw 3/8-24 x 3.75"

$7.99

$

Usually ships in 3-6 days

0

11

MTD 710-1039

Hex Screw 3/8-24 x 1.0"

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-1812

Hex Screw M20 x 2.5:180

$

$

Not available

13

MTD 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

14

MTD 912-0296

Jam Lock Nut 3/8-24

$2.99

$

In Stock, only 1 left!

0

15

MTD 712-0695

Hex Flange Nut M20 x 2.5

$

$

Not available

16

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

MTD 912-3017

Hex Nut 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

18

MTD 712-3035

Jam Nut 9/16-18

$6.99

$

Usually ships in 3-6 days

0

19

MTD 914-0133

Key
(Superseded to 714-0133)

$

$

Not available

20

MTD 717-0884

Variable Speed Pulley Assembly

$219.99

$

Usually ships in 3-6 days

0

21

MTD 732-0308A

Extension Spring

$11.99

$

In Stock, only 2 left!

0

22

MTD 732-0418

Extension Spring

$10.99

$

In Stock, only 3 left!

0

23

MTD 732-0814

Extension Spring

$7.99

$

In Stock, only 4 left!

0

24

MTD 936-0101

Flat Washer .406 x 1.0 x .030

$4.99

$

Usually ships in 3-6 days

0

25

MTD 936-0169

Lock Washer 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

26

MTD 936-0219

Bell Washer .39 x 1.13 x .062

$4.49

$

Usually ships in 3-6 days

0

27

MTD 736-0247

Flat Washer 3/8 x 1.25"

$9.49

$

In Stock, Qty 14

0

28

MTD 936-0427

Bell Washer .567 x 1.125 x .06

$

$

Not available

29

MTD 736-3052

Flat Washer .406 x 1.0 x .105

$4.49

$

In Stock, Qty 20+

0

30

MTD 938-0155

Shoulder Screw

$6.99

$

Usually ships in 3-6 days

0

31

MTD 938-0347

Shoulder Spacer

$10.99

$

Usually ships in 3-6 days

0

32

MTD 938-0968

Shoulder Spacer

$5.99

$

Usually ships in 3-6 days

0

33

MTD 941-0405

Thrust Bearing

$

$

Not available

34

MTD 941-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

35

MTD 750-0705

Sleeve Spacer

$

$

Not available

36

MTD 750-0952

Spacer

$7.49

$

In Stock, Qty 6

0

37

MTD 954-0453

Belt: V Type

$34.99

$

In Stock, only 2 left!

0

38

MTD 954-0493

Belt: V Type

$49.99

$

Usually ships in 3-6 days

0

39

MTD 954-0494

Belt: V Type

$54.99

$

Usually ships in 3-6 days

0

40

MTD 756-0650

Transmission Pulley

$

$

Not available

41

MTD 756-04224

Flat Idler Pulley

$26.99

$

In Stock, Qty 20+

0

42

MTD 756-1195

Jack Pulley: Double

$91.99

$

Usually ships in 3-6 days

0

43

MTD 756-1200

Engine Pulley: Double

$

$

Not available

44

MTD 756-04241

Idler Pulley

$35.99

$

Usually ships in 3-6 days

0

45

MTD 783-0528

Idler Bracket: Variable Speed

$

$

Not available

46

MTD 783-1292

Cable Bracket

$

$

Not available

47

MTD 783-1341

Bracket: Lock: Pedal

$

$

Not available

48

MTD 783-1307

Link Bracket

$

$

Not available
