247.270250 (13A4065-099) - Craftsman Lawn Tractor (2002) (Sears) Controls & Steering Parts Diagram

Lawn Tractor

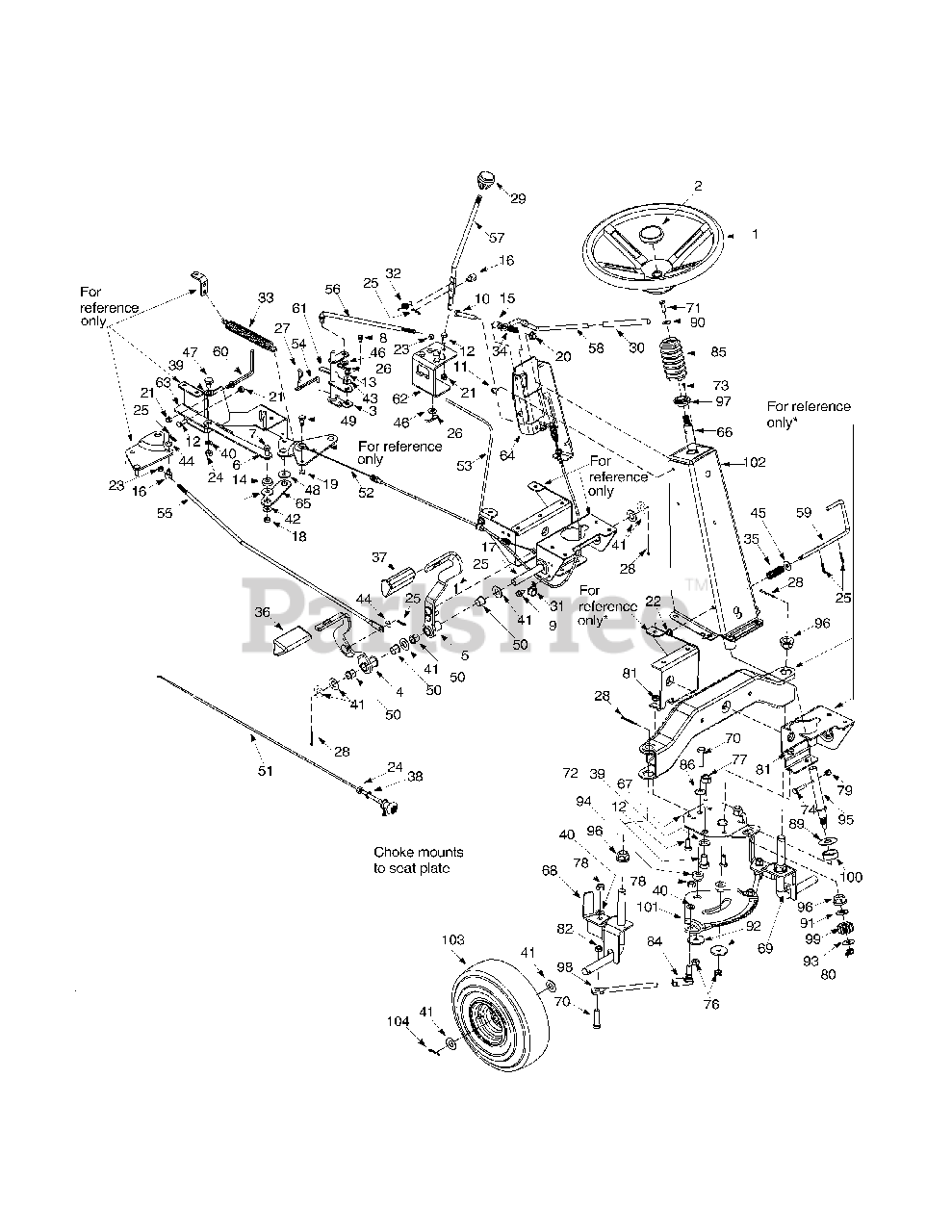

Controls & Steering Parts Diagram

  • Title

1

MTD 931-1687

Steering Wheel

$53.99

$

Usually ships in 3-6 days

0

2

MTD 731-1459A

Steering Wheel Cap

$8.49

$

Usually ships in 3-6 days

0

3

MTD 647-0055

Shift Pivot Assembly

$

$

Not available

4

MTD 683-0432

Drive Pedal Assembly

Variations

MTD 683-0432-0637

No Longer Available PEDAL ASM- - POWDER BLACK (0637)

$

$

Not available

MTD 683-0432-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

$

$

5

MTD 683-0433-0637

Brake Pedal Assembly

$

$

Not available

6

MTD 683-0592

Idler Brake Assembly

$

$

Not available

7

MTD 710-0191

Hex Bolt 3/8-24 x 1.25"

$4.99

$

In Stock, Qty 9

0

8

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0604A

TT Screw 5/16-18 x 0.625"

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0859

Hex Bolt 3/8-16 x 2.5"

$6.99

$

In Stock, Qty 16

0

11

MTD 710-1017

AB Screw 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 9

0

12

MTD 710-1681

Hex Bolt

$5.99

$

Usually ships in 3-6 days

0

13

MTD 710-3013

Hex Bolt 1/4-20 x 0.50"

$4.99

$

In Stock, Qty 11

0

14

MTD 911-0242

Spacer

$4.49

$

In Stock, Qty 9

0

15

MTD 711-0396

Spacer

$11.99

$

Usually ships in 3-6 days

0

16

MTD 711-1155

Ferrule

$11.99

$

Usually ships in 3-6 days

0

17

MTD 711-1531

Shaft

$

$

Not available

18

MTD 912-0296

Jam Nut 3/8-24

$2.99

$

In Stock, only 1 left!

0

19

MTD 712-0380

Flange Lock Nut 1/4-28

$3.99

$

In Stock, only 2 left!

0

20

MTD 912-0431

Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

21

MTD 712-0692

Nylon Lock Nut

$6.99

$

In Stock, only 1 left!

0

22

MTD 712-0714

Flange Lock Nut 5/16-18

$3.99

$

Usually ships in 3-6 days

0

23

MTD 712-3007

Jam Nut 5/16-18

$6.99

$

In Stock, only 3 left!

0

24

MTD 912-3017

Hex Nut 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

25

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

26

MTD 914-0145

Click Pin
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

27

MTD 914-0149B

Hairpin Clip
(Superseded to 714-0149B)

$

$

Not available

28

MTD 914-0470

Cotter Pin
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

29

MTD 920-0232

Shift Knob

$10.99

$

In Stock, Qty 10

0

30

MTD 720-0269

Clutch Grip

$4.99

$

In Stock, only 1 left!

0

31

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

32

MTD 732-0445

Extension Spring

$8.99

$

In Stock, only 2 left!

0

33

MTD 932-0594A

Extension Spring

$14.99

$

In Stock, Qty 20+

0

34

MTD 732-1167

Compression Spring

$

$

Not available

35

MTD 732-3091

Compression Spring

$

$

Not available

36

MTD 735-0283

Drive Pad

$

$

Not available

37

MTD 735-3049A

Brake Pad

$12.99

$

In Stock, only 1 left!

0

38

MTD 736-0148

Lock Washer

$3.99

$

In Stock, Qty 20+

0

39

MTD 936-3013

Flat Washer.53 x 1.0 x .032
(Superseded to 736-3013)

$4.49

$

In Stock, only 3 left!

0

40

MTD 936-0169

Lock Washer 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

41

MTD 736-0187

Flat Washer

$4.49

$

In Stock, Qty 20+

0

42

MTD 936-0267

Flat Washer
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

43

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

44

MTD 936-0314

Thrust Washer
(Superseded to 736-0314)

$

$

Not available

45

MTD 736-0701

Flat Washer

$6.49

$

Usually ships in 3-6 days

0

46

MTD 736-0692

Flat Washer

$

$

Not available

47

MTD 938-0183

Shoulder Screw .50 x .21: 3/8-16

$

$

Not available

48

MTD 938-0347

Shoulder Spacer

$10.99

$

Usually ships in 3-6 days

0

49

MTD 938-0826

Shoulder Screw 1/4-28 x .375

$12.99

$

In Stock, Qty 5

0

50

MTD 741-0495

Flange Bearing

$4.99

$

In Stock, Qty 20+

0

51

MTD 746-1089

Choke Control

$

$

Not available

52

MTD 946-1127

Deck Cable

$74.99

$

Usually ships in 3-6 days

0

53

MTD 746-1129

Brake Cable

$

$

Not available

54

MTD 747-1228A

Shift Rod

$

$

Not available

55

MTD 747-1240

Variable Control Rod

$

$

Not available

56

MTD 747-1249

Control Rod

$

$

Not available

57

MTD 747-1254

Shift Rod

$

$

Not available

58

MTD 747-1255

PTO Lever

$

$

Not available

59

MTD 747-04024

Brake Lock -Out Rod

$

$

Not available

60

MTD 747-1262

Belt Keeper Rod

$

$

Not available

61

MTD 783-1142

Shift Switch Bracket

$

$

Not available

62

MTD 783-1253

Shift Index Bracket

$

$

Not available

63

MTD 783-1287

Brake Mounting Bracket

$

$

Not available

64

MTD 783-1293

Cont. Bracket: PTO

$

$

Not available

65

MTD 783-1307

Link Bracket

$

$

Not available

66

MTD 650-0007-0637

Steering Tube Assembly

$

$

Not available

67

MTD 683-0033A

Steering Support Bracket

$

$

Not available

68

MTD 683-0178A

Front Axle RH
(Superseded to 983-0178A)

$

$

Not available

69

MTD 983-0179A

Front Axle LH

$

$

Not available

70

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 8

0

71

MTD 710-0643

Hex Bolt 5/16-18 x 1.0"

$6.99

$

In Stock, Qty 5

0

72

MTD 710-0689

Hex Bolt 1/2-13 x 0.75"

$6.99

$

Usually ships in 3-6 days

0

73

MTD 710-0837

AB Screw #10-16 x 0.625"

$4.49

$

In Stock, Qty 5

0

74

MTD 710-0958

Hex Bolt 1/4-20 x 1.25"
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

76

MTD 912-0116

Jam Lock Nut 3/8-24
(Superseded to 712-0116)

$

$

Not available

77

MTD 912-0206

Hex Nut 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

78

MTD 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

79

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

80

MTD 912-0411

Hex Lock Nut 5/16-24
(Superseded to 712-0411)

$

$

Not available

81

MTD 712-0692

Hex Lock Nut

$6.99

$

In Stock, only 1 left!

0

82

MTD 712-0711

Jam Nut

$4.49

$

In Stock, Qty 20+

0

84

MTD 923-0156

Ball Joint 3/8-24

$16.99

$

In Stock, Qty 20+

0

85

MTD 731-0559B

Steering Bellow

$

$

Not available

86

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

89

MTD 736-0196

Flat Washer.628 x 1.56 x .036

$

$

Not available

90

MTD 736-0242

Bell Washer .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

91

MTD 936-0272

Flat Washer .510 x 1.0 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

92

MTD 736-0320

Flat Washer 3/8 x 1.37

$6.99

$

In Stock, Qty 7

0

93

MTD 736-3078

Flat Washer .344 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

94

MTD 938-0541

Spacer

$

$

Not available

95

MTD 738-3089A

Steering Adapter

$

$

Not available

96

MTD 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

97

MTD 741-0356

Bearing: Steering Column
(Superseded to 741-0356A)

$7.49

$

In Stock, only 3 left!

0

98

MTD 747-0955

Tie Rod

$

$

Not available

99

MTD 948-0290

Pinion Gear

$

$

Not available

100

MTD 950-0532

Spacer

$

$

Not available

101

MTD 783-1302

Steering Gear

$

$

Not available

102

MTD 683-0591

Steering Column

Variations

MTD 683-0591-0638

BRACKET ASM-COLUMN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0591-0689

BRACKET ASM-COLUMN - POLO GREEN (0689)

$

$

Not available

$

$

103

MTD 634-0147

Wheel Assembly: Front

$

$

Not available

103

MTD 634-0170A

Rim Assembly
(Superseded to 634-0147)

Variations

MTD 634-0170A-0499

Wheel Assembly, Complete - CUB BEIGE (0499)

$

$

Not available

MTD 634-0170A-0662

Wheel Assembly, Complete - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0170A-0674

No Longer Available RIM ASM Y - YARDMAN YELLOW (0674)

$

$

Not available

$

$

103

MTD 934-0255

Valve

$4.49

$

In Stock, Qty 20+

0

103

MTD 741-0487C

Fl. Bearing

$7.49

$

Usually ships in 3-6 days

0

103

MTD 941-0706

Fl. Bearing w/Fitting

$8.49

$

In Stock, Qty 7

0

104

MTD 914-0115

Cotter Pin
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0
