247.255890 (13AL79XT299) - Craftsman T2600 Lawn Tractor (2018) Fuel Tank Parts Diagram

T2600 Lawn Tractor

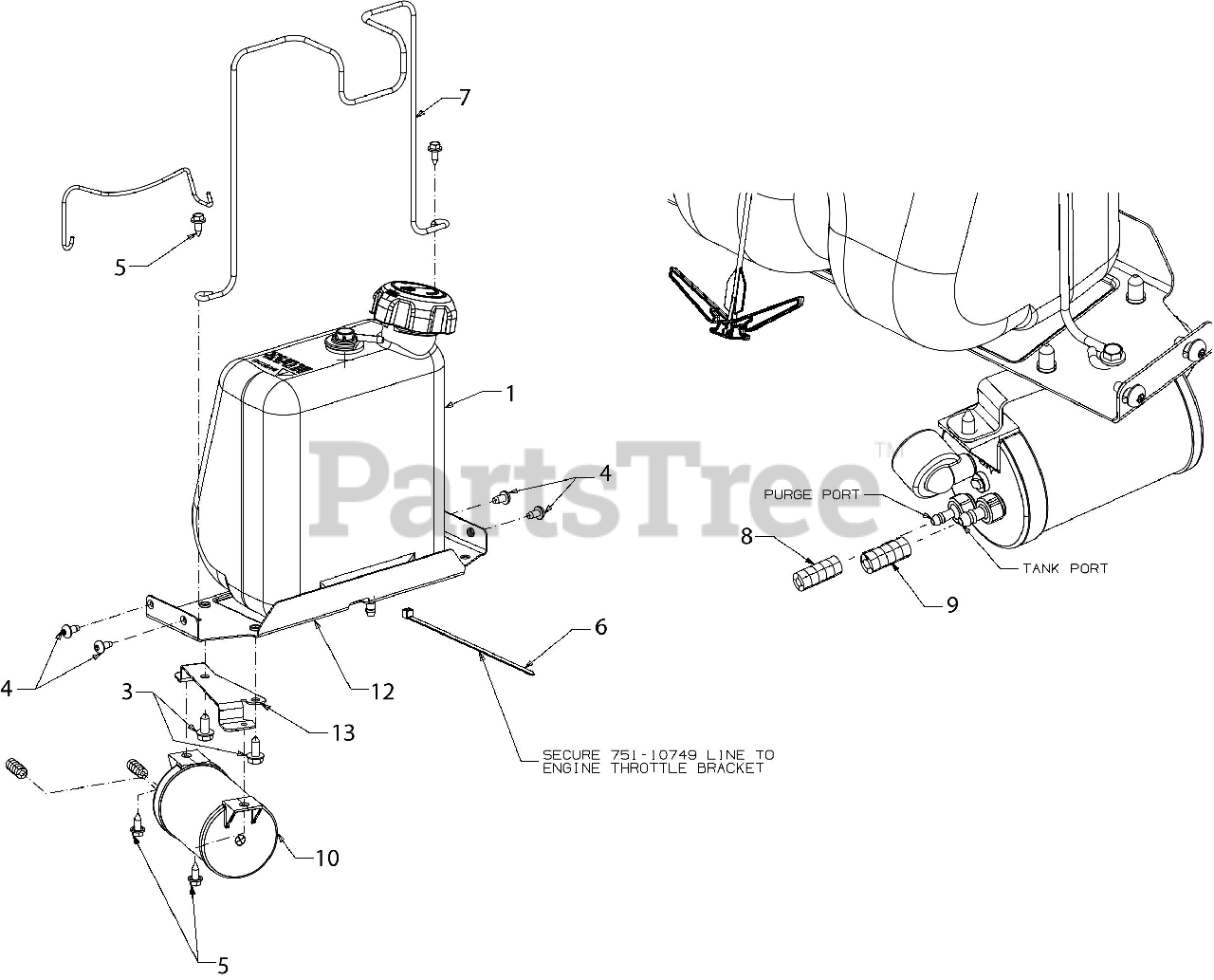

Fuel Tank Parts Diagram

  • Title

1

MTD 951-04304

FUEL TANK ASSEMBLY
(Superseded to 951-04304B)

$111.99

$

In Stock, only 1 left!

0

1

MTD 735-04081

RUBBER GROMMET 23.0 ID x 35.5 OD

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

1

MTD 951-04304

FUEL TANK ASSEMBLY
(Superseded to 951-04304B)

Note: (Not Shown)

$111.99

$

In Stock, only 1 left!

0

1

MTD 751-12118

ROLLOVER FUEL VALVE

Note: (Not Shown)

$35.99

$

In Stock, only 2 left!

0

2

MTD 683-04448-0637

BATTERY ROD ASSEMBLY

$10.99

$

In Stock, Qty 14

0

3

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-05070A

SCREW 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

5

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

6

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

7

MTD 747-05371

FUEL TANK SUPPORT ROD -

$13.99

$

Usually ships in 3-6 days

0

8

MTD 751-10749-30

FUEL HOSE LOW PERMEATION

$36.99

$

Usually ships in 3-6 days

0

9

MTD 751-10750-28

FUEL HOSE LOW PERMEATION

$

$

Not available

10

MTD 951-12372

CARBON CANISTER
(Superseded to 951-12372A)

$71.99

$

Usually ships in 3-6 days

0

11

MTD 951-12426A

FUEL CAP W/TETHER
(Superseded to 951-12426B)

$41.99

$

Usually ships in 3-6 days

0

12

MTD 783-07083A

FUEL TANK BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-07083A-0637

Fuel Tank Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

13

MTD 783-09337

CARBON CANISTER BRACKET

Variations

MTD 783-09337-0637

BRKT-CARBON CNSTR - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0
