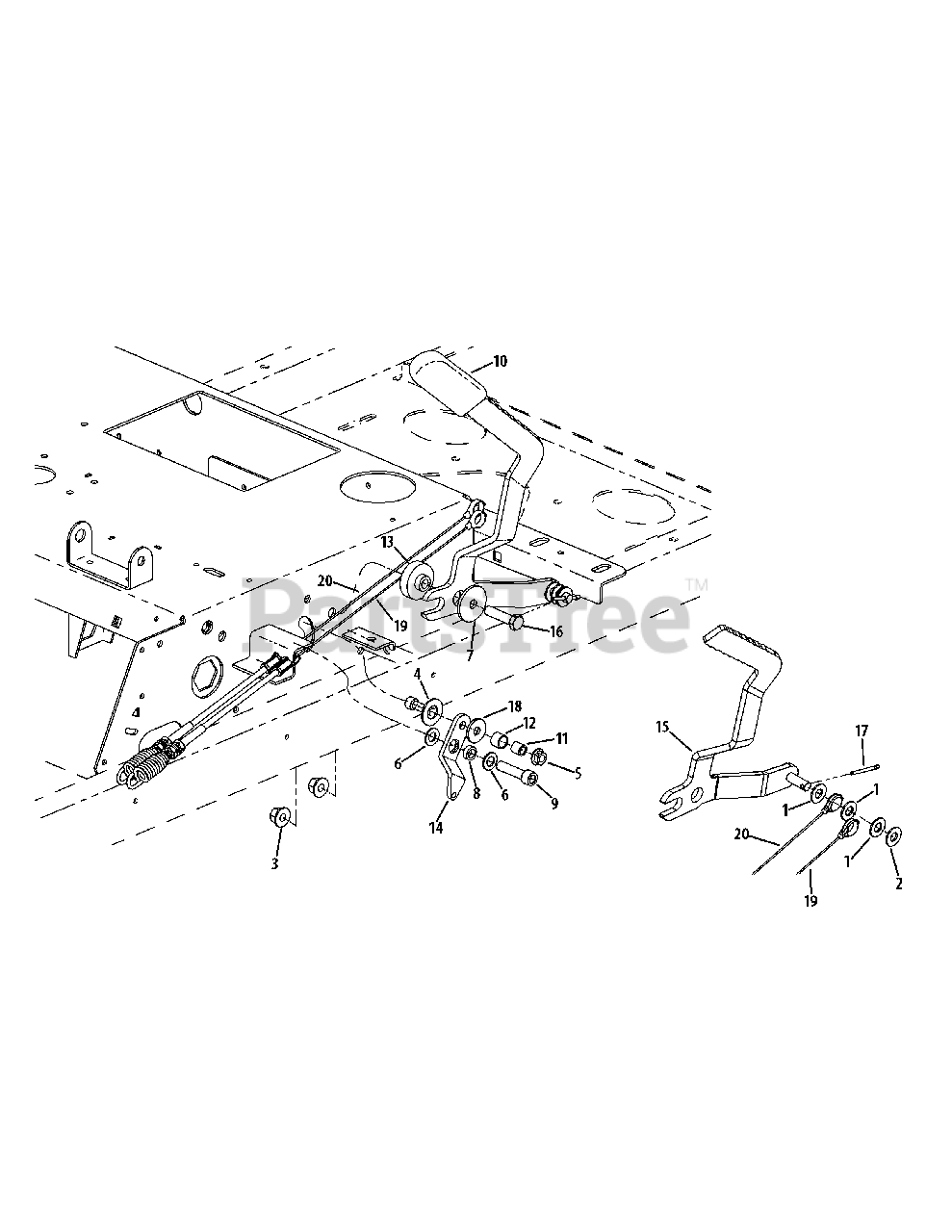

247.250030 (17AL3AGV099) - Craftsman ZTL7500 Zero-Turn Mower (2012) (Sears) Brake Parts Diagram

ZTL7500 Zero-Turn Mower

Brake Parts Diagram

  • Title

1

MTD 00005530

Flat Washer, .406 x .812 x .062
(Superseded to 736-04070)

$

$

Not available

2

MTD 00012158

Flat Washer,3/8

$4.49

$

In Stock, Qty 9

0

3

MTD 00022560

Hex Nut,3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

MTD 01000101

Slide Washer
(Superseded to 936-0414)

$

$

Not available

5

MTD 712-3004A

Flange Lock Nut,5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 01002710

Washer, .375 x .738 x .063

$6.49

$

Usually ships in 3-6 days

0

7

MTD 01009253

Flat Washer, .390 x 1.5 x .134
(Superseded to 936-0227)

$

$

Not available

8

MTD 02002885

Spacer, .380 x .563 x .196

$6.49

$

Usually ships in 3-6 days

0

9

MTD 02003717

Socket Head Cap Screw, 3/8-16 x 1.50
(Superseded to 710-06024)

$4.49

$

Usually ships in 3-6 days

0

10

MTD 02003740

Parking Brake Grip

$10.99

$

In Stock, only 1 left!

0

11

MTD 02003839

Spacer, .322 x .438 x .44

$12.99

$

Usually ships in 3-6 days

0

12

MTD 02003840

Spacer, .442 x .563 x .405

$

$

Not available

13

MTD 02004045

Step Hub, .379 x 1.5 x .257/.400

$

$

Not available

14

MTD 02004174

Lockout Lever Plate

$16.99

$

Usually ships in 3-6 days

0

15

MTD 680-00049

Brake Handle

$

$

Not available

16

MTD 710-0520

Hex Head Cap Screw,3/8-16 x 1.50

$4.49

$

In Stock, Qty 6

0

17

MTD 914-0474

Cotter Pin, 1/8 x .75
(Superseded to 714-0474)

$

$

Not available

18

MTD 736-3089

Washer, .345 x 1.00 x .100

$

$

Not available

19

MTD 946-04564

Left Hand Brake Cable

$42.99

$

Usually ships in 3-6 days

0

20

MTD 946-04565

Right Hand Brake Cable

$

$

Not available
