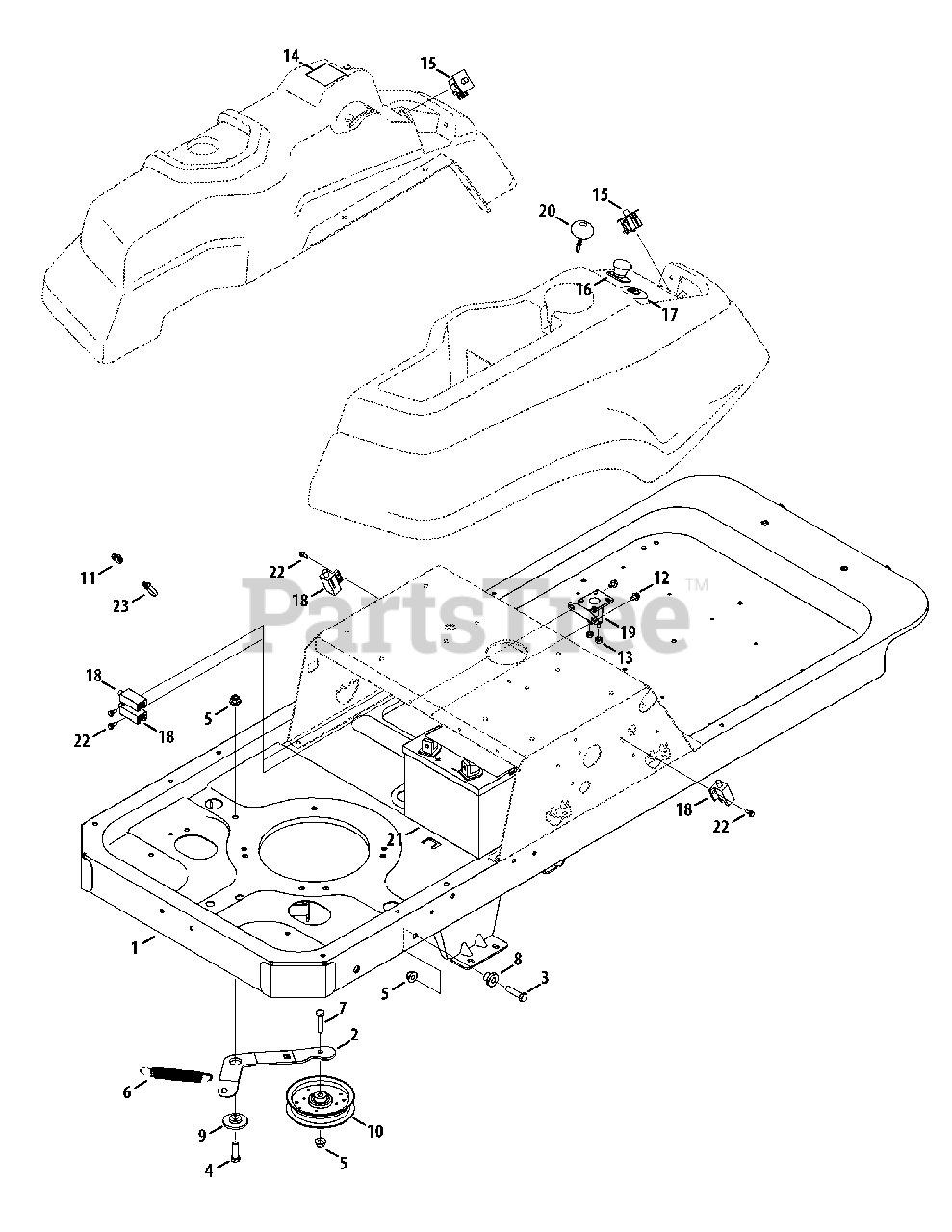

247.250020 (17AK2ACP099) - Craftsman ZTL7000 Zero-Turn Mower (2013) Electrical Parts Diagram

ZTL7000 Zero-Turn Mower

Electrical Parts Diagram

  • Title

1

MTD 603-04680A-0637

Frame Assembly

$897.99

$

Usually ships in 3-6 days

0

2

MTD 703-05829

Drive Idler Arm

Variations

MTD 703-05829-0637

Idler Arm - POWDER BLACK (0637)

$42.99

$

In Stock, only 1 left!

0

$42.99

$

In Stock, only 1 left!

0

3

MTD 710-05097

Hex Screw, 3/8-16 x 1.5

$4.99

$

Usually ships in 3-6 days

0

4

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

5

MTD 712-04065

Flange Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

MTD 732-0626

Extension Spring, .75 x 5.06

$12.99

$

In Stock, only 1 left!

0

7

MTD 710-0520

Hex Screw, 3/8-16 x 1.5

$4.49

$

In Stock, Qty 6

0

8

MTD 738-04058

Shoulder Spacer, .39 x 1.0 x .7

$4.49

$

In Stock, only 3 left!

0

9

MTD 738-04162A

Shoulder Spacer, .884 x .19
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

10

MTD 756-04129B

Idler Pulley, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

11

MTD 925-04847C

Wire Harness

$178.99

$

In Stock, Qty 6

0

12

MTD 710-0653

Hex Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

13

MTD 712-0271

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

14

MTD 925-04022B

Hour Meter

$146.99

$

In Stock, Qty 5

0

15

MTD 925-04165

Neutral Switch

$32.99

$

In Stock, only 4 left!

0

16

MTD 925-04174

PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

17

MTD 925-04228

Ignition Switch

$39.99

$

In Stock, Qty 20+

0

18

MTD 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 14

0

19

MTD 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

20

MTD 925-2054A

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

21

MTD 925-1707D

Battery

$

$

Not available

22

MTD 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

23

MTD 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0
