247.250020 (17AK2ACP099) - Craftsman ZTL7000 Zero-Turn Mower (2013) Drive Assembly Parts Diagram

ZTL7000 Zero-Turn Mower

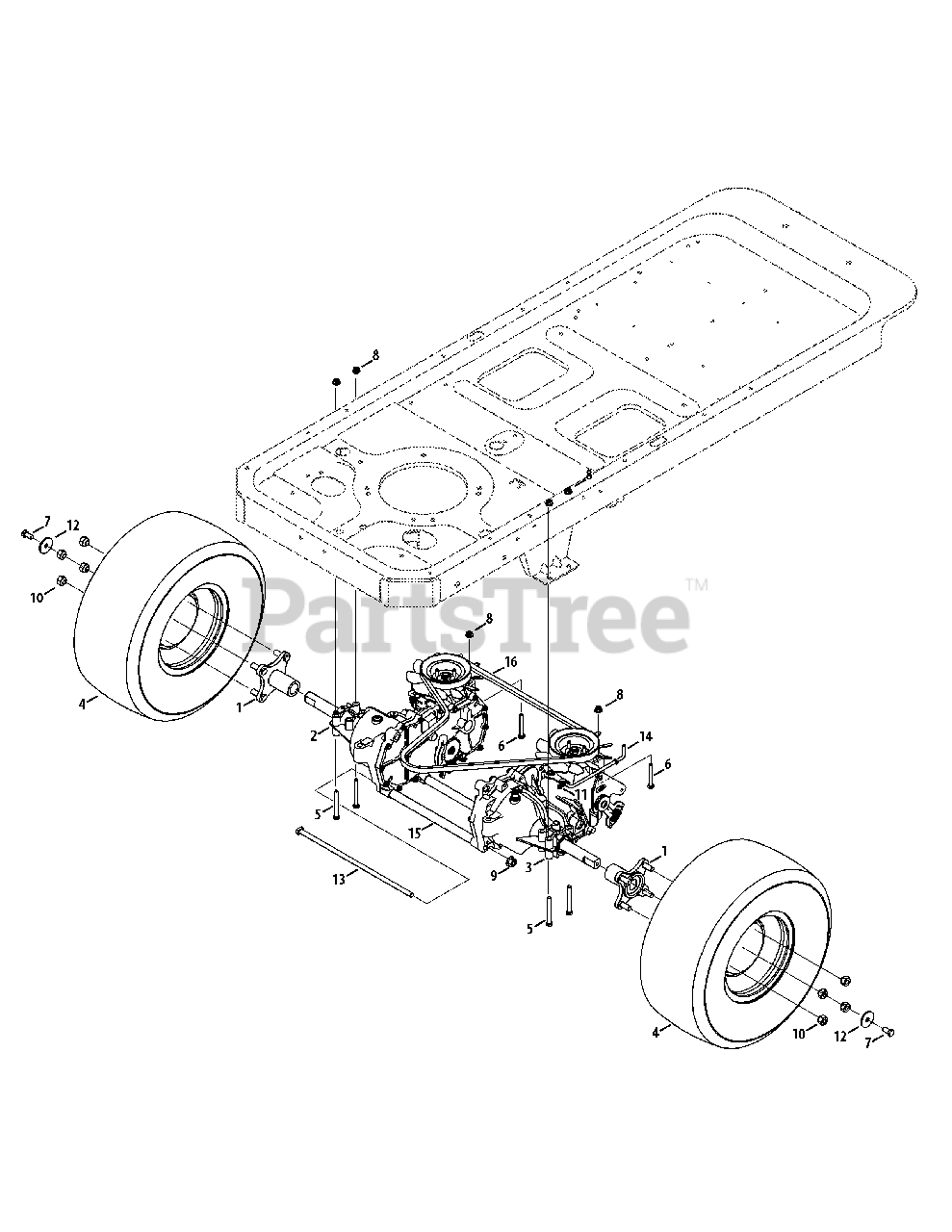

Drive Assembly Parts Diagram

  • Title

1

MTD 918-04317

Wheel Hub, 7/16-14 x 1.6

$116.99

$

In Stock, only 1 left!

0

2

MTD 918-04431B

Transmission Assembly, LH

$1719.99

$

Usually ships in 3-6 days

0

3

MTD 918-04432B

Transmission Assembly, RH

$1805.99

$

Usually ships in 3-6 days

0

4

MTD 634-04128

Wheel Assembly, 18 x 9.5-8

Variations

MTD 634-04128-0961

WHEEL ASM COMPLETE - Carlisle Gray (0961)

$266.99

$

Usually ships in 3-6 days

0

MTD 634-04128-0966

WHEEL ASM COMPLETE - Kenda Gray (0966)

$266.99

$

Usually ships in 3-6 days

0

MTD 634-04128-0499

Wheel Assembly, Complete - CUB BEIGE (0499)

$

$

Not available

MTD 634-04128-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

MTD 634-04128-0936

Wheel Assembly, Beige - Kenda Beige (0936)

$

$

Not available

MTD 634-04128-0662

Wheel Assembly, Gray - OYSTER GRAY (0662)

$

$

Not available

MTD 634-04128-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$

$

Not available

MTD 634-04128-0916

Wheel Assembly, Gray - Kenda Gray (0916)

$

$

Not available

$286.99

$

In Stock, only 2 left!

0

5

MTD 710-0176

Hex Cap Screw,5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

6

MTD 710-0395

Hex Cap Screw,5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

7

MTD 710-3119

Hex Cap Screw, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

8

MTD 712-04063

Hex Flange Nut,5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0459

Hex Flange Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, only 1 left!

0

11

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

MTD 936-0227

Flat Washer, .39 x 1.5
(Superseded to 736-0227)

$

$

Not available

13

MTD 738-04192B

Rod, .405 x 14

$21.99

$

Usually ships in 3-6 days

0

14

MTD 747-04217C-0637

Bypass Rod

$21.99

$

Usually ships in 3-6 days

0

15

MTD 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$26.99

$

In Stock, only 1 left!

0

16

MTD 954-04043B

V-Belt

$42.99

$

In Stock, Qty 20+

0
