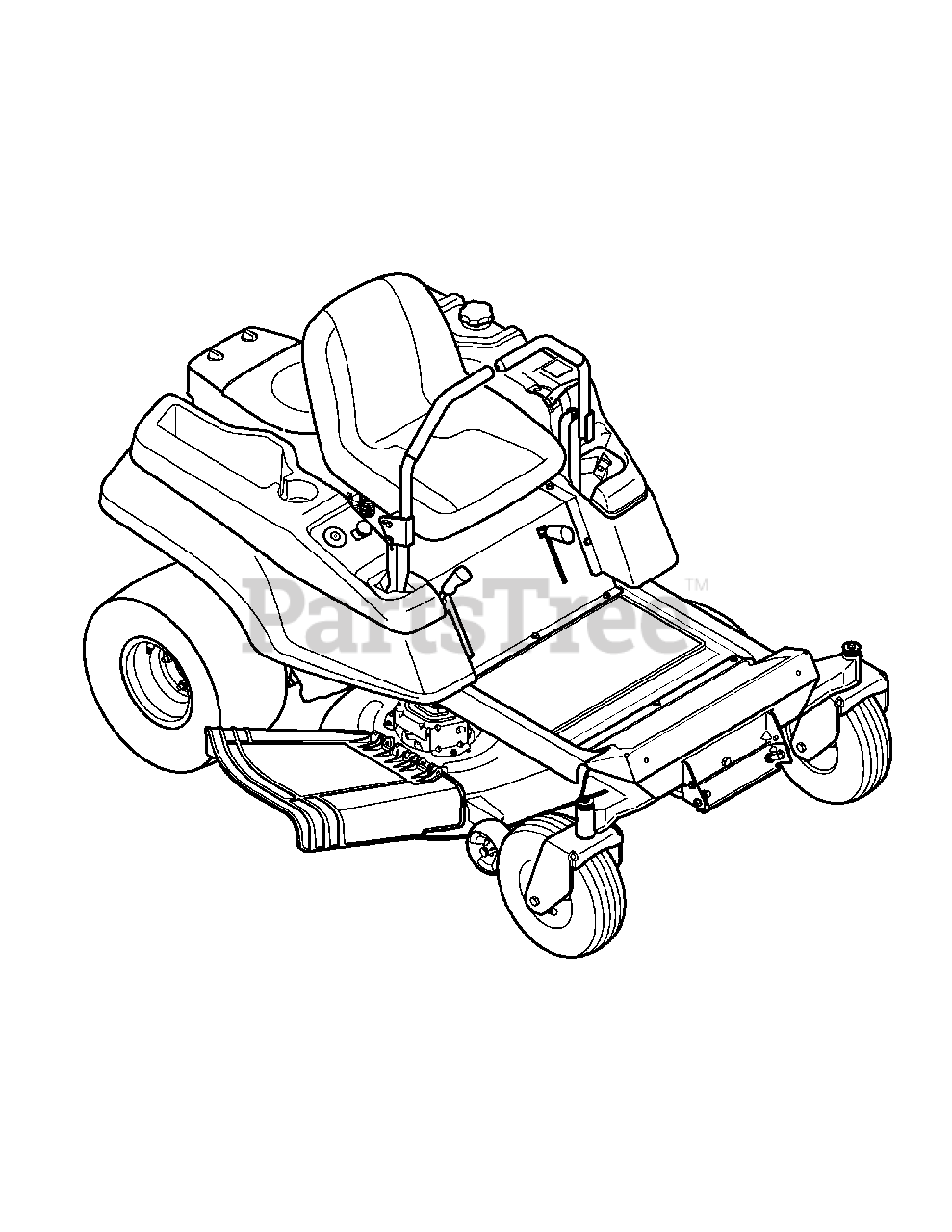

247.250010 (17AK2ACS099) - Craftsman ZTL7000 Zero-Turn Mower (2013) .Quick Reference Parts Diagram

ZTL7000 Zero-Turn Mower

.Quick Reference Parts Diagram

  • Title

MTD BS-696854

Oil Filter

$13.99

$

In Stock, Qty 20+

0

MTD BS-792105

Air Filter

$28.99

$

In Stock, Qty 20+

0

MTD BS-792303

Pre Filter

$10.99

$

In Stock, only 1 left!

0

MTD 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

MTD BS-695666

Fuel Filter
(Superseded to BS-84001895)

$7.99

$

In Stock, Qty 20+

0

MTD 951-12428

Fuel Cap

$43.99

$

In Stock, Qty 15

0

MTD 942-04308

Blades
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

MTD 712-3078

Blade Nuts

$9.99

$

In Stock, Qty 20+

0

MTD 954-04043A

Drive Belt
(Superseded to 954-04043B)

$42.99

$

In Stock, Qty 20+

0

MTD 954-04137A

PTO/Deck Spindle Belt
(Superseded to 954-04137B)

$44.99

$

In Stock, only 3 left!

0

MTD 918-04822A

Deck Spindles
(Superseded to 918-04822B)

$121.99

$

In Stock, only 1 left!

0

MTD 625-04124

Ignition Keys
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

MTD 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

MTD 746-04539

Throttle Cable
(Superseded to 746P04539)

$42.99

$

In Stock, only 2 left!

0

MTD 734-04155

Deck Wheels

$20.99

$

In Stock, Qty 20+

0

MTD 725-04363

Safety Switch - Deck/PTO

$15.99

$

In Stock, Qty 14

0

MTD 725-04363

Safety Switch - Brake/Clutch

$15.99

$

In Stock, Qty 14

0

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

MTD 631-04288

Discharge Chute
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

MTD 19A30006OEM

MULCH KIT

Note: Attachment

$102.99

$

Usually ships in 3-6 days

0

MTD 19A70020OEM

BAGGER
(Superseded to 19C70020OEM)

Note: Attachment

$557.99

$

Usually ships in 3-6 days

0

MTD 19A-115-100

BUMPER KIT

Note: Attachment

$

$

Not available
