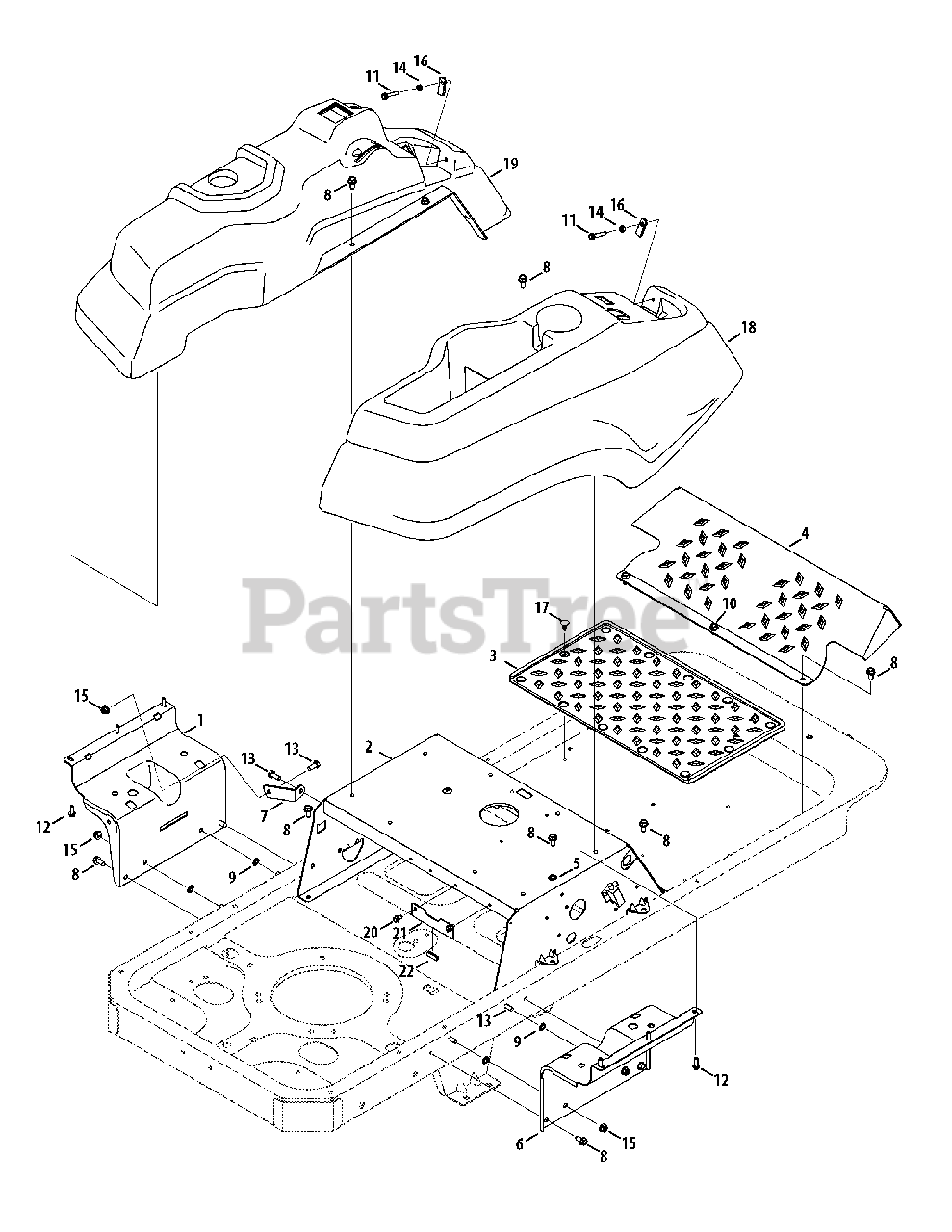

247.250010 (17AK2ACS099) - Craftsman ZTL7000 Zero-Turn Mower (2012) (Sears) Fenders Parts Diagram

ZTL7000 Zero-Turn Mower

Fenders Parts Diagram

  • Title

1

MTD 603-04564

Console Mount Bracket

Variations

MTD 603-04564-0606

BRACKET-LH CONSOLE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 603-04564-0637

BRACKET-LH CONSOLE - POWDER BLACK (0637)

$

$

Not available

MTD 603-04564-0638

BRACKET-LH CONSOLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 603-04564-0650

BRACKET-LH CONSOLE - RED METALLIC (0650)

$

$

Not available

MTD 603-04564-0691

BRACKET-LH CONSOLE - BLACK JACK (0691)

$

$

Not available

MTD 603-04564-4015

BRACKET-LH CONSOLE - FIRE RED (4015)

$

$

Not available

MTD 603-04564-4021

BRACKET-LH CONSOLE - CUB YELLOW 2 (4021)

$

$

Not available

MTD 603-04564-4033

BRACKET-LH CONSOLE - FLINT MICA (4033)

$

$

Not available

MTD 603-04564-4038

BRACKET-LH CONSOLE - DAY ORANGE (4038)

$

$

Not available

$

$

2

MTD 603-04946-0637

Seat Frame

$

$

Not available

3

MTD 735-04082C

Foot Pad

$50.99

$

Usually ships in 3-6 days

0

4

MTD 703-05373B

Foot Rest

Variations

MTD 703-05373B-0606

BRACKET:FOOT REST - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 703-05373B-0637

BRACKET:FOOT REST - POWDER BLACK (0637)

$

$

Not available

MTD 703-05373B-0638

BRACKET:FOOT REST - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 703-05373B-0650

BRACKET:FOOT REST - RED METALLIC (0650)

$

$

Not available

MTD 703-05373B-0674

BRACKET:FOOT REST - YARDMAN YELLOW (0674)

$

$

Not available

MTD 703-05373B-0691

BRACKET:FOOT REST - BLACK JACK (0691)

$

$

Not available

MTD 703-05373B-0709

BRACKET-FOOT REST - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 703-05373B-0716

BRACKET:FOOT REST - CUB YELLOW-99 (0716)

$

$

Not available

MTD 703-05373B-4015

BRACKET:FOOT REST - FIRE RED (4015)

$

$

Not available

MTD 703-05373B-4021

BRACKET-FOOT REST - CUB YELLOW 2 (4021)

$

$

Not available

MTD 703-05373B-4033

BRACKET-FOOT REST - FLINT MICA (4033)

$

$

Not available

$

$

5

MTD 736-0148

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

6

MTD 703-06451

Console Mount Bracket

Variations

MTD 703-06451-4021

BRACKET-RH CONSOLE - CUB YELLOW 2 (4021)

$

$

Not available

MTD 703-06451-0606

BRACKET-RH CONSOLE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 703-06451-0637

BRACKET-RH CONSOLE - POWDER BLACK (0637)

$

$

Not available

MTD 703-06451-0638

BRACKET-RH CONSOLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 703-06451-0650

BRACKET-RH CONSOLE - RED METALLIC (0650)

$

$

Not available

MTD 703-06451-0691

BRACKET-RH CONSOLE - BLACK JACK (0691)

$

$

Not available

MTD 703-06451-4015

BRACKET-RH CONSOLE - FIRE RED (4015)

$

$

Not available

MTD 703-06451-4033

BRACKET-RH CONSOLE - FLINT MICA (4033)

$

$

Not available

MTD 703-06451-4038

BRACKET-RH CONSOLE - DAY ORANGE (4038)

$

$

Not available

$

$

7

MTD 703-06623-0637

Fuel Tank Support Bracket

$

$

Not available

8

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

MTD 726-0201

Speed Nut, .3125

$6.99

$

In Stock, only 2 left!

0

10

MTD 710-0604A

Hex Washer Screw, 5/16-18 x .825

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0778

Hex Washer Screw, 1/4-20 x 1.500

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

13

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

MTD 912-0298

Jam Nut, 1/4-20

$6.49

$

Usually ships in 3-6 days

0

15

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04092

U-Type Nut, 1/4-20

$5.99

$

In Stock, only 2 left!

0

17

MTD 726-3046

Ratchet Clip, .250

$3.99

$

In Stock, Qty 16

0

18

MTD 731-06233

RH Console

$

$

Not available

19

MTD 731-06263B

LH Console

$117.99

$

Usually ships in 3-6 days

0

20

MTD 710-0599

Hex Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

21

MTD 703-05894-0637

Battery Hold-Down

$29.99

$

In Stock, only 2 left!

0

22

MTD 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0
