247.250000 (13A226JD099) - Craftsman R1000 Rear-Engine Riding Mower (2012) (Sears) Steering & Front Wheels Parts Diagram

R1000 Rear-Engine Riding Mower

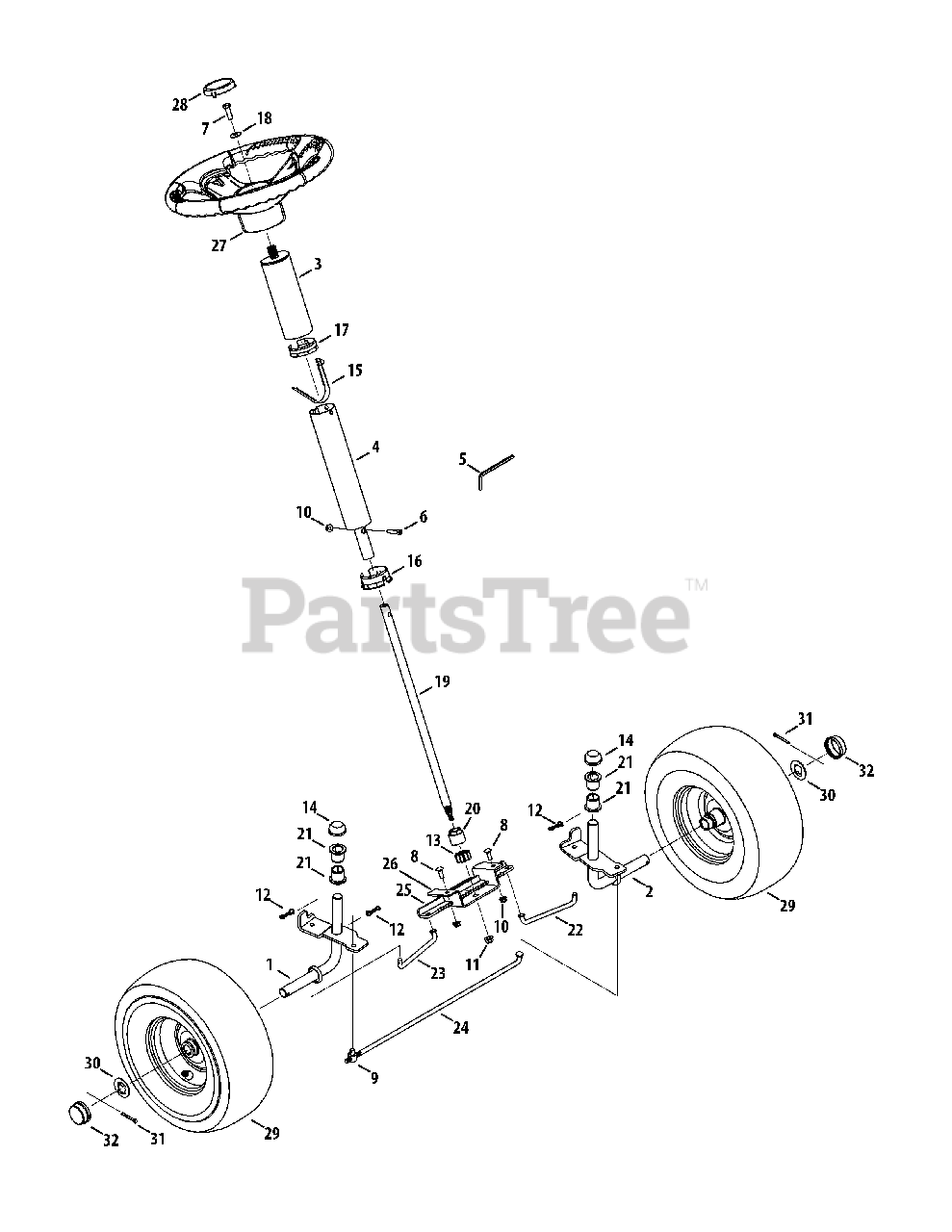

Steering & Front Wheels Parts Diagram

  • Title

1

MTD 683-04726-0637

Front Axle Assembly, RH

$36.99

$

In Stock, only 1 left!

0

2

MTD 683-04727-0637

Front Axle Assembly, LH

$36.99

$

In Stock, only 1 left!

0

3

MTD 683-04761

Upper Tube Assembly

$46.99

$

Usually ships in 3-6 days

0

4

MTD 683-04762

Lower Tube Assembly

$67.99

$

In Stock, only 1 left!

0

5

MTD 710-05046

Allen Wrench, 3/16

$3.99

$

Usually ships in 3-6 days

0

6

MTD 710-05386

Screw, 1/4-20 X 1.25

$3.99

$

Usually ships in 3-6 days

0

7

MTD 710-0643

Hex Head Screw, 5/16-18x1.00

$6.99

$

In Stock, Qty 5

0

8

MTD 710-0703

Carriage Screw, 1/4-20x.75

$4.49

$

In Stock, Qty 15

0

9

MTD 711-04448

Ferrule, 5/16-24 X .312 Dia.

$10.99

$

In Stock, only 2 left!

0

10

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

13

MTD 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

14

MTD 726-0341

Push Cap, 3/4

$4.99

$

In Stock, Qty 20+

0

15

MTD 726-04127

Snap Butt

$11.99

$

Usually ships in 3-6 days

0

16

MTD 731-08690

Lower Steering Collar

$3.99

$

In Stock, Qty 14

0

17

MTD 731-08691

Upper Steering Collar

$3.99

$

In Stock, Qty 7

0

18

MTD 736-0242

Bevel Washer, .340X.872X.060

$4.49

$

In Stock, Qty 20+

0

19

MTD 738-04537

Steering Shaft, .625 OD X 18.03
(Superseded to 738-04537A)

$37.99

$

In Stock, Qty 20+

0

20

MTD 741-04542

Hex Flange Bearing, 5/8
(Superseded to 741-04542A)

$4.99

$

In Stock, Qty 20+

0

21

MTD 741-0660A

Flange Bearing, .760 X .941 X 1.0

$3.49

$

In Stock, Qty 10

0

22

MTD 747-05514

Steering Rod, LH

$14.99

$

In Stock, only 1 left!

0

23

MTD 747-05585

Steering Rod, RH

$14.99

$

In Stock, only 1 left!

0

24

MTD 747-05686

Front Tie Rod

$14.99

$

Usually ships in 3-6 days

0

25

MTD 783-06988

Steering Rack Plate
(Superseded to 753-11064C)

$72.99

$

In Stock, Qty 20+

0

26

MTD 783-07239

Lower Steering Bracket
(Superseded to 753-11064C)

$72.99

$

In Stock, Qty 20+

0

27

MTD 631-04008A

Steering Wheel
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

28

MTD 731-06825

Steering Cap
(Superseded to 731-06825A)

$5.49

$

In Stock, Qty 13

0

29

MTD 634-04726-0961

Complete Wheel Assembly
(Superseded to 634-05059)

$103.99

$

In Stock, Qty 19

0

29

MTD 734-04640

Tire-13 X 5.0 X 6

Note: (not shown)

$73.99

$

In Stock, only 2 left!

0

29

MTD 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

29

MTD 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0

30

MTD 736-04228A

Washer, .781 x 1.59
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

31

MTD 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

32

MTD 931-0484A

Hub Cap

$6.49

$

In Stock, Qty 20+

0
