247.250000 (13A226JD099) - Craftsman R1000 Rear-Engine Riding Mower (2012) (Sears) Drive & Rear Wheels Parts Diagram

R1000 Rear-Engine Riding Mower

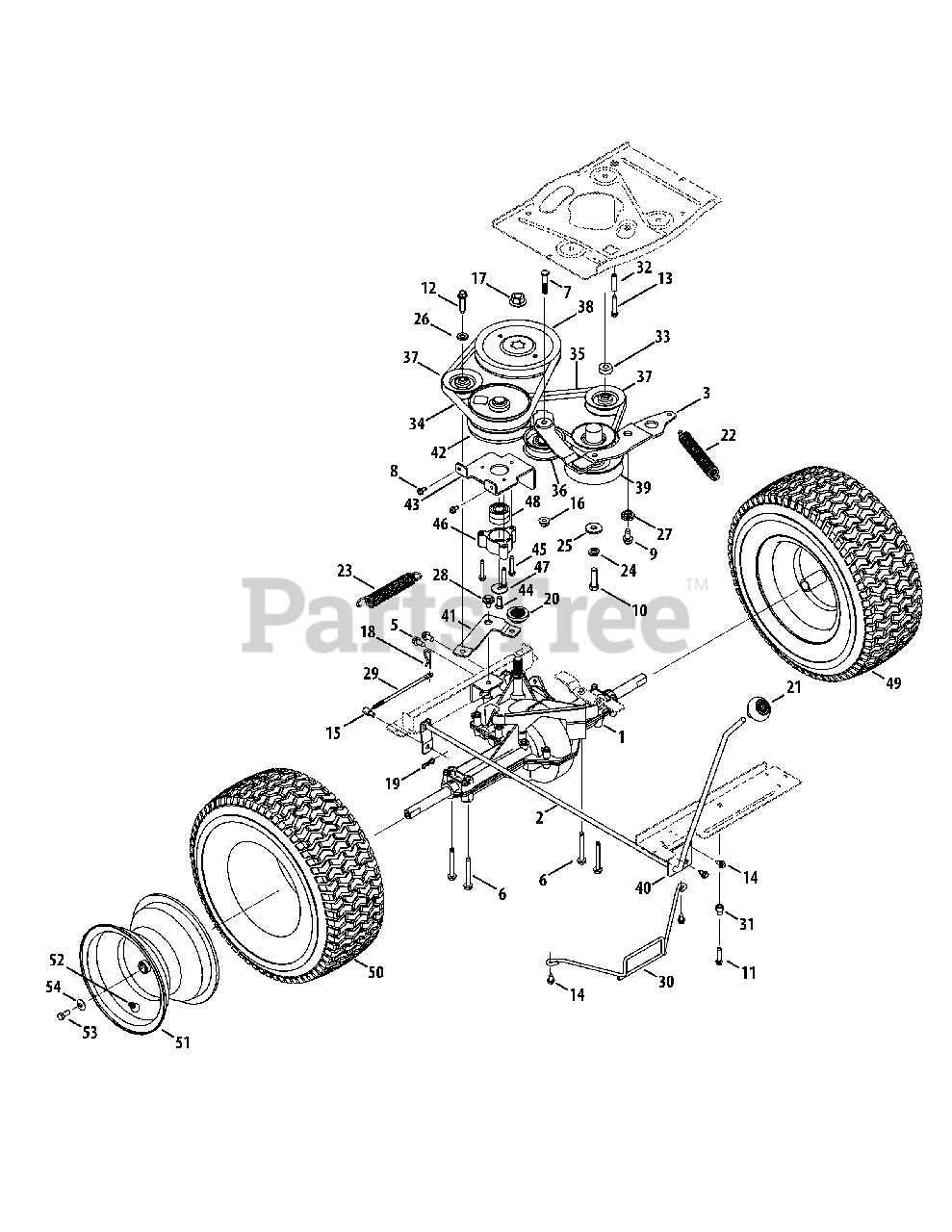

Drive & Rear Wheels Parts Diagram

  • Title

1

MTD 918-05056

Transmission Assembly
(Superseded to 918-05056C)

$636.99

$

In Stock, only 1 left!

0

2

MTD 647-04262

Shift Handle Assembly
(Superseded to 647-05114)

$48.99

$

In Stock, only 1 left!

0

3

MTD 683-04768

Drive Assembly Idler

Variations

MTD 683-04768-0637

Idler Assembly Drive - POWDER BLACK (0637)

$19.99

$

In Stock, only 1 left!

0

$15.99

$

Usually ships in 3-6 days

0

5

MTD 710-04484

Tap Screw, 5/16-18x.750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-05378

Tap Screw, 5/16-18x2.50

$3.99

$

Usually ships in 3-6 days

0

7

MTD 710-05415A

Hex Head Scew, 3/8-16x1.62

$3.99

$

Usually ships in 3-6 days

0

8

MTD 710-0599

Tap Scew, 1/4-20x0.500

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0623

Tap Screw, 3/8-16x0.750

$4.49

$

In Stock, only 2 left!

0

10

MTD 710-0757

Hex Head Screw, 7/16-20x1.50

$9.99

$

In Stock, only 1 left!

0

11

MTD 710-0809

Tap Screw, 1/4-20x1.250

$6.99

$

In Stock, Qty 19

0

12

MTD 710-1007

SEMS Tap Screw, 3/8-16x1.500

$6.49

$

In Stock, only 1 left!

0

13

MTD 710-1325

Tap Screw, 1/4-20x1.625

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-1652

Tap Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

15

MTD 711-0736

Adjustable Ferrule, 1/4-20 X 1.00

$13.99

$

In Stock, only 2 left!

0

16

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-0700

Flange Nut, 9/16-18

$10.99

$

In Stock, only 1 left!

0

18

MTD 914-0209

Internal Cotter Pin, .125 Dia.

$3.99

$

In Stock, only 2 left!

0

19

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

20

MTD 718-04407

Pulley Hub, 5/8 Spline

$12.99

$

In Stock, Qty 20+

0

21

MTD 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

22

MTD 732-0459C

Extension Spring, .94 Dia. X 6.74 Lg.

$18.99

$

In Stock, only 3 left!

0

23

MTD 732-04934

Extension Spring, .97 OD X 6.18

$7.99

$

In Stock, only 1 left!

0

24

MTD 936-0171

Split Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

25

MTD 736-0322

Flat Washer, .450X1.250X.164

$9.49

$

In Stock, Qty 8

0

26

MTD 736-3010

Flat Washer, .407X.812X.135

$4.99

$

In Stock, only 1 left!

0

27

MTD 738-0372B

Shoulder Spacer, 1.00 X .38 X .38

$9.49

$

In Stock, Qty 20+

0

28

MTD 738-0930

Shoulder Spacer, .560x.165x5/16-18

$6.99

$

In Stock, only 1 left!

0

29

MTD 747-05593

Shift Rod

$5.99

$

In Stock, only 4 left!

0

30

MTD 747-05617A

Deck Belt Keeper, 30"

$

$

Not available

31

MTD 950-04099

Stepped Spacer, .265 ID X .750

$

$

Not available

32

MTD 750-04456

Spacer, .260 X .372 X 1.420

$7.49

$

In Stock, only 3 left!

0

33

MTD 750-3119

Spacer, .406 ID X 1.00 OD X .38

$11.99

$

In Stock, only 4 left!

0

34

MTD 954-0241A

V-Belt, 5L:35.25
(Superseded to 954-05040)

$45.99

$

In Stock, Qty 7

0

35

MTD 954-04331

V-Belt, 5L:35.28

$45.99

$

In Stock, only 4 left!

0

36

MTD 756-04224

Flat Idler Pulley, 2.75 OD

$26.99

$

In Stock, Qty 20+

0

37

MTD 756-04325

V-Type Idler Pulley, 3.06

$24.99

$

In Stock, Qty 20+

0

38

MTD 756-04464

V-Type Pulley, 6.56

$20.99

$

Usually ships in 3-6 days

0

39

MTD 756-04479A

Engine Pulley, 4.46 / 3.39
(Superseded to 756-06043)

$67.99

$

Usually ships in 3-6 days

0

40

MTD 783-07207

Front Support Shift Bracket

$

$

Not available

41

MTD 783-07248

Rear Idler Arm Bracket
(Superseded to 783-07248A)

$8.49

$

In Stock, only 1 left!

0

42

MTD 956-04015A

Variable Speed Pulley Assembly
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

43

MTD 683-04779

Variable Bracket
(Superseded to 683-05057A)

$106.99

$

In Stock, only 1 left!

0

44

MTD 710-0627

Hex Head Lock Screw, 5/16-24:.750

$4.49

$

In Stock, Qty 20+

0

45

MTD 710-0778

Tap Screw, 1/4-20:1.500

$4.49

$

In Stock, only 1 left!

0

46

MTD 718-04261

Bearing Cup

$20.99

$

In Stock, only 1 left!

0

47

MTD 736-0362

Flat Washer, .330x1.250x.060

$4.49

$

In Stock, Qty 7

0

48

MTD 941-0600

Ball Bearing, 17 X 40 X 12

$25.99

$

In Stock, Qty 20+

0

49

MTD 634-0139-0911

Complete Wheel Assembly

$319.99

$

Usually ships in 3-6 days

0

50

MTD 734-04641

Tire, 16 x 6.5 x 8 Sq. Shoulder
(Superseded to 734-1727)

$56.99

$

Usually ships in 3-6 days

0

51

MTD 634-04319-4042

Rim Assembly, 8.0 x 5.38
(Superseded to 934-04319-4042)

$49.99

$

Usually ships in 3-6 days

0

52

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

53

MTD 710-0627

Hex Head Screw, 5/16-24, 7.50

$4.49

$

In Stock, Qty 20+

0

54

MTD 736-0242

Beveled Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0
