247.23000 (21AB47M6099) - Craftsman Tiller (2011) (Sears) Handle & Tine Shield Parts Diagram

Tiller

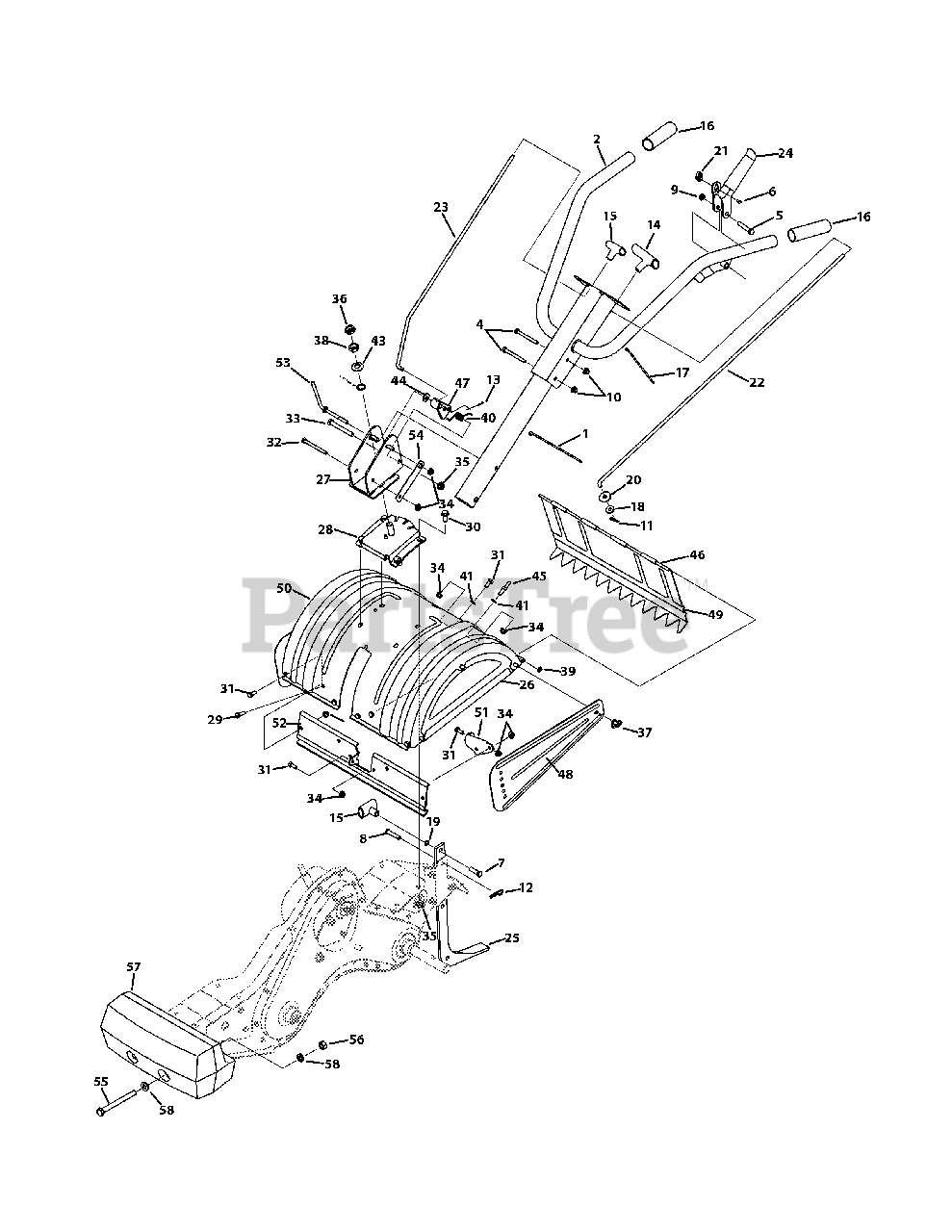

Handle & Tine Shield Parts Diagram

  • Title

1

MTD 2725

Cable Tie

$3.99

$

Usually ships in 3-6 days

0

2

MTD 649-04101-0691

Upper Handle Assembly

$79.99

$

Usually ships in 3-6 days

0

2

MTD 649-04102-0691

Lower Swing Handle Tube Assembly

$31.99

$

Usually ships in 3-6 days

0

4

MTD 710-0189

Hex Screw, 5/16-18 x 3.00

$6.49

$

In Stock, Qty 5

0

5

MTD 710-0331

Hex Screw, 3/8-24 x 2.25

$6.99

$

In Stock, Qty 7

0

6

MTD 710-0919

Hex Screw, #10-16 x 0.440

$4.99

$

In Stock, Qty 7

0

7

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

8

MTD 911-0415

Clevis Pin, 3/8 x 1.75
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-0262

Jam Lock Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 914-0104

Cotter Pin, .072 x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-0147

Cotter Pin, .125 x 1.75

$4.99

$

In Stock, Qty 6

0

13

MTD 914-0507

Cotter Pin, 3/32 x .750

$4.49

$

In Stock, Qty 17

0

14

MTD 720-0209

T-Knob

$21.99

$

In Stock, only 1 left!

0

15

MTD 720-0210A

T-Knob

$15.99

$

In Stock, only 2 left!

0

16

MTD 720-04083

Round Grip

$14.99

$

In Stock, only 2 left!

0

17

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

18

MTD 735-0127

Rubber Washer, .33 x .87 x .125

$6.99

$

Usually ships in 3-6 days

0

19

MTD 936-0117

Flat Washer, .385 x .620 x .033

$7.49

$

In Stock, only 1 left!

0

20

MTD 936-0133

Flat Washer, .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

21

MTD 946-0605

Cable Barrel Holder

$4.49

$

In Stock, Qty 20+

0

22

MTD 747-0664

Clutch Rod

$23.99

$

Usually ships in 3-6 days

0

23

MTD 747-0666

Clutch Rod

$25.99

$

Usually ships in 3-6 days

0

24

MTD 984-0202B

Clutch Assembly Lever
(Superseded to 684-04399A-0637)

$33.99

$

In Stock, only 4 left!

0

25

MTD 786-0120-0637

Tiller Depth Control

$66.99

$

In Stock, only 1 left!

0

26

MTD 686-0044B-0691

End Cover Assembly

$84.99

$

Usually ships in 3-6 days

0

27

MTD 686-04141-0691

Handle Pivot Bracket Assembly

$41.99

$

Usually ships in 3-6 days

0

28

MTD 686-04142-0691

Handle Pivot Base Bracket Assembly

$41.99

$

Usually ships in 3-6 days

0

29

MTD 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

30

MTD 710-04482

Hex Washer Screw, 3/8-16 x .875

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

32

MTD 710-3056

Hex Screw, 5/16-18 x 3.25

$10.99

$

In Stock, only 1 left!

0

33

MTD 710-3130

Hex Screw, 3/8-16 x 3.25

$10.99

$

In Stock, only 4 left!

0

34

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

35

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

36

MTD 912-0413

Jam Lock Nut, 5/8-18
(Superseded to 712-0413)

$

$

Not available

37

MTD 712-0421

Wing Nut w/ Bell Washer, 5/16-18

$6.99

$

In Stock, Qty 20+

0

38

MTD 712-3056

Jam Nut, 5/8-18

$4.99

$

In Stock, Qty 13

0

39

MTD 926-0106

Cap Speed Nut, 1/4
(Superseded to 726-0106)

$

$

Not available

40

MTD 732-0493

Torsion Spring, .415 x .95

$16.99

$

Usually ships in 3-6 days

0

41

MTD 736-0204

Flat Washer, .344 x .62 x .033

$4.49

$

In Stock, Qty 20+

0

42

MTD 936-0256

Flat Washer, .635 x .930 x .033

$7.49

$

Usually ships in 3-6 days

0

43

MTD 736-0317

Bell Washer, .63 x 1.25 x .18

$7.99

$

In Stock, Qty 20+

0

44

MTD 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

45

MTD 938-0849

Hex Screw, 5/16-18 x .75

$10.99

$

Usually ships in 3-6 days

0

46

MTD 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

47

MTD 748-0375

Swing Handle Link

$20.99

$

Usually ships in 3-6 days

0

48

MTD 786-0090A-0691

Side Shield

$36.99

$

Usually ships in 3-6 days

0

49

MTD 786-0113A-0691

Rear Tine Shield

$90.99

$

Usually ships in 3-6 days

0

50

MTD 786-0178A-0691

Tine Shield

$112.99

$

Usually ships in 3-6 days

0

51

MTD 786-0179-0637

Front Tine Shield Bracket

$49.99

$

Usually ships in 3-6 days

0

52

MTD 786-0180-0637

Front Tine Shield Scraper Bracket

$47.99

$

Usually ships in 3-6 days

0

53

MTD 786-0340B

Handle Adjustment Crank

$19.99

$

Usually ships in 3-6 days

0

54

MTD 786-04358

Hex Flange Retainer Bracket

$10.99

$

Usually ships in 3-6 days

0

55

MTD 710-0382

Hex Screw, 1/2-13 x 5.00

$12.99

$

In Stock, only 2 left!

0

56

MTD 912-0206

Hex Nut, 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

57

MTD 723-0381

40 lb. Counterweight

$

$

Not available

58

MTD 936-0326

Flat Washer, .510 x 1.000 x .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

MTD 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

Note: Not shown

$4.49

$

In Stock, Qty 6

0
