247.204470 (1417A3ZW099) - Craftsman G8600 Garden Tractor (2016) Pivot Axle Parts Diagram
G8600 Garden Tractor

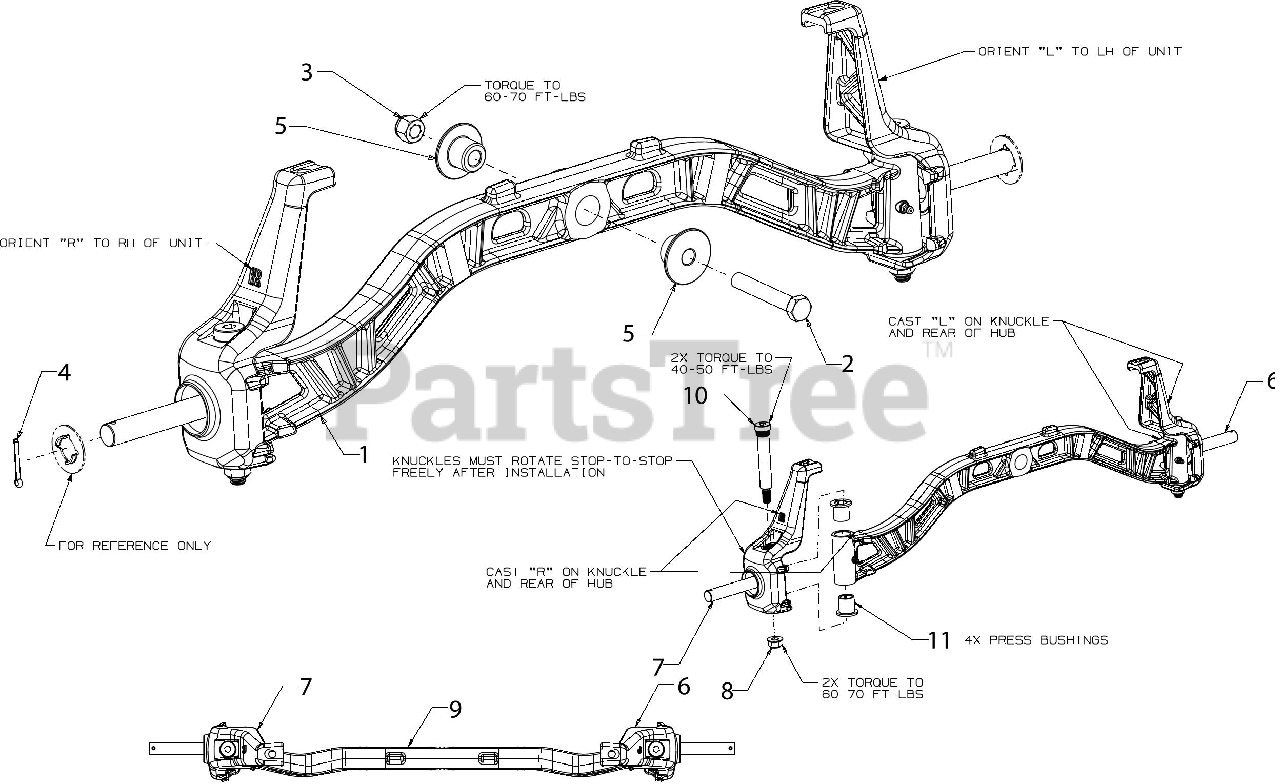

Pivot Axle Parts Diagram
1
N/A
FRONT AXLE ASSEMBLY
Note: (Components Only)
$
$
Not available
$7.99
$
In Stock, only 2 left!
MTD 712-3083
HEX LOCK NUT NYLON
$4.49
$
In Stock, Qty 20+
MTD 714-0162
COTTER PIN-5/32 DIA
$4.99
$
In Stock, Qty 20+
MTD 738-05056
SHOULDER SPACER
$8.49
$
In Stock, Qty 20+
MTD 619-05177-4028
EPS STEERING AXLE ASSEMBLY (LH)
$232.99
$
Usually ships in 3-6 days
MTD 619-05178-4028
EPS STEERING AXLE ASSEMBLY (RH)
$232.99
$
In Stock, only 1 left!
MTD 712-04150
NUT
$4.49
$
In Stock, Qty 20+
$11.99
$
Usually ships in 3-6 days
MTD 919-05069A
CAST PIVOT BAR AXLE
$374.99
$
In Stock, only 2 left!
MTD 738-05197
SHOULDER BOLT .75X3.92 1/2-13
$29.99
$
Usually ships in 3-6 days
MTD 741-05082
FLANGE BEARING .75 x 1.00 x 1.12
$7.49
$
Usually ships in 3-6 days
