247.204470 (1417A3ZW099) - Craftsman G8600 Garden Tractor (2016) Hood & Grille Parts Diagram

G8600 Garden Tractor

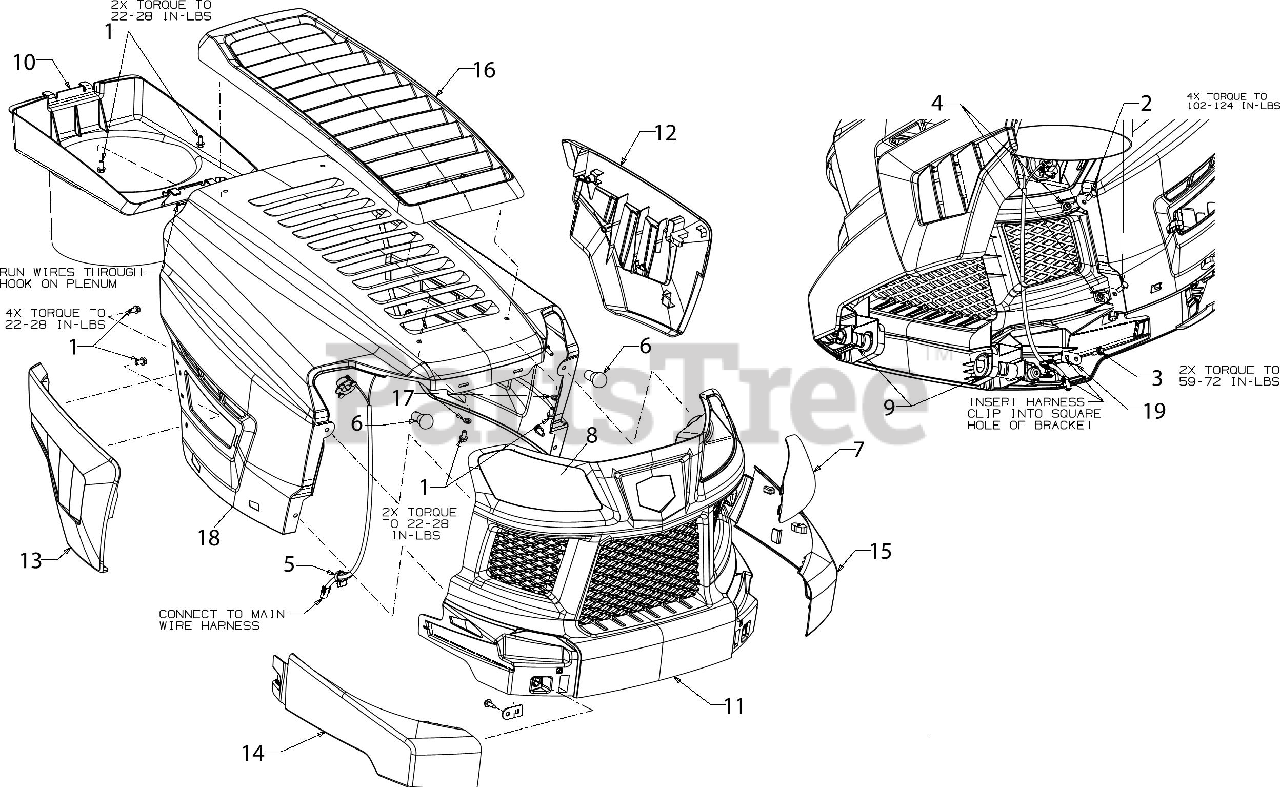

Hood & Grille Parts Diagram

  • Title

1

MTD 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 20+

0

2

MTD 710-0433

SCREW 1/4-20 x .62 SPEC GR5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-05118

SQUARE NUT 1/4-20

$5.49

$

In Stock, only 2 left!

0

5

MTD 925-06463

HEADLIGHT HARNESS

$26.99

$

In Stock, only 1 left!

0

6

MTD 925-0963

MINIATUURE BULB 12V

$7.49

$

In Stock, only 1 left!

0

7

MTD 731-09756A

GRILLE LENS (LH)

$9.49

$

In Stock, Qty 20+

0

8

MTD 731-09757A

GRILLE LENS (RH)

$9.49

$

In Stock, Qty 20+

0

9

MTD 731-10070A

HOOD PIVOT PIN

$5.99

$

In Stock, Qty 20+

0

10

MTD 731-10958A

HOOD PLENUM

$52.99

$

In Stock, Qty 9

0

11

MTD 931-10970A

GRILLE (CRAFTSMAN)

$72.99

$

In Stock, only 1 left!

0

12

MTD 731-10976A

HOOD SIDE COVER (LH)

$24.99

$

Usually ships in 3-6 days

0

13

MTD 731-10977A

HOOD SIDE COVER (RH)

$24.99

$

Usually ships in 3-6 days

0

14

MTD 731-10978

GRILLE PANEL- (RH)

$20.99

$

Usually ships in 3-6 days

0

15

MTD 731-10979

GRILLE PANEL- (LH)

$20.99

$

Usually ships in 3-6 days

0

16

MTD 731-10980

HOOD SCOOP

$53.99

$

Usually ships in 3-6 days

0

17

MTD 936-0142

FLAT WASHER .281 x .50 x .063
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

18

MTD 783-08862A-0691

HOOD

$189.99

$

Usually ships in 3-6 days

0

19

MTD 783-08881

HARNESS CLIP BRACKET

$4.49

$

In Stock, Qty 12

0
