247.204470 (1417A3ZW099) - Craftsman G8600 Garden Tractor (2016) Electrical Parts Diagram

G8600 Garden Tractor

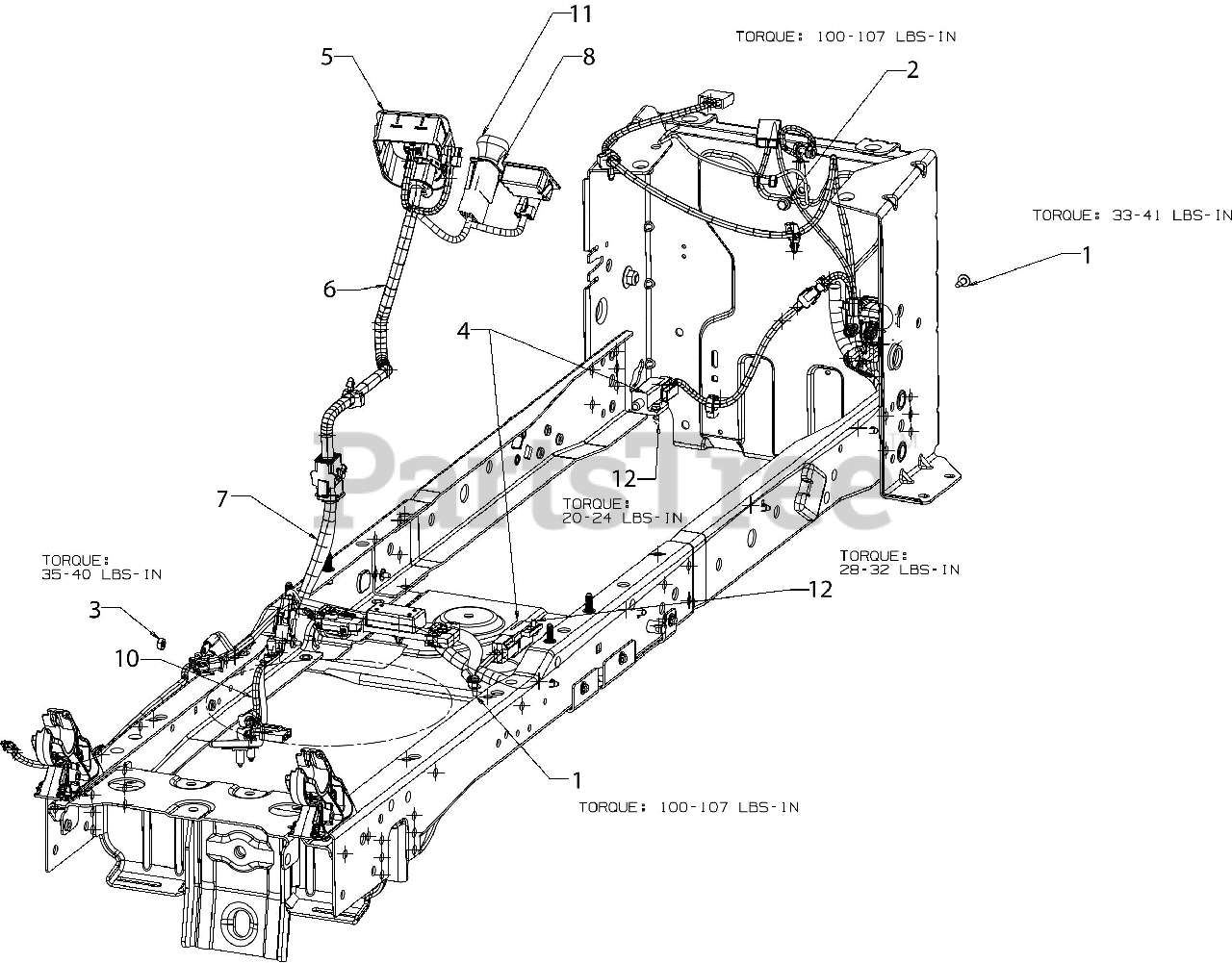

Electrical Parts Diagram

  • Title

1

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 11

0

10

MTD 710-1652

SCREW 1/4-20X.625

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-05106

HEX NUT 1/4-20

$3.49

$

Usually ships in 3-6 days

0

4

MTD 725-04363

INTERLOCK SWITCH (NO/NC)

$15.99

$

In Stock, Qty 20+

0

5

MTD 725-06102B

IGNITION MODULE SWITCH RMC (ELC PTO WHTE)
(Superseded to 725-13425)

$96.99

$

In Stock, Qty 7

0

6

MTD 925-06129

DASH HARNESS

$71.99

$

In Stock, only 1 left!

0

7

MTD 925-06134

MAIN HARNESS E-PTO/RMC/EPS

$240.99

$

Usually ships in 3-6 days

0

8

MTD 925-06170A

HOUR METER
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

9

MTD 925-06167

REVERSE HARNESS

$13.99

$

In Stock, only 1 left!

0

10

MTD 725-06173

CLUTCH HARNESS 11"

$30.99

$

In Stock, only 1 left!

0

10

MTD 729-0359

HARNESS CLIP

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

10

MTD 783-08656-0637

CLUTCH STOP BRACKET

Note: (Not Shown)

$9.49

$

In Stock, only 1 left!

0

10

MTD 710-06133

SCREW M6-1 x .625

Note: (Not Shown)

$3.99

$

In Stock, Qty 11

0

11

MTD 925-3233A

PTO SWITCH (YELLOW KNOB)

$51.99

$

In Stock, Qty 12

0

12

MTD 738-04237A

SHOULDER SCREW

$6.49

$

In Stock, Qty 7

0
