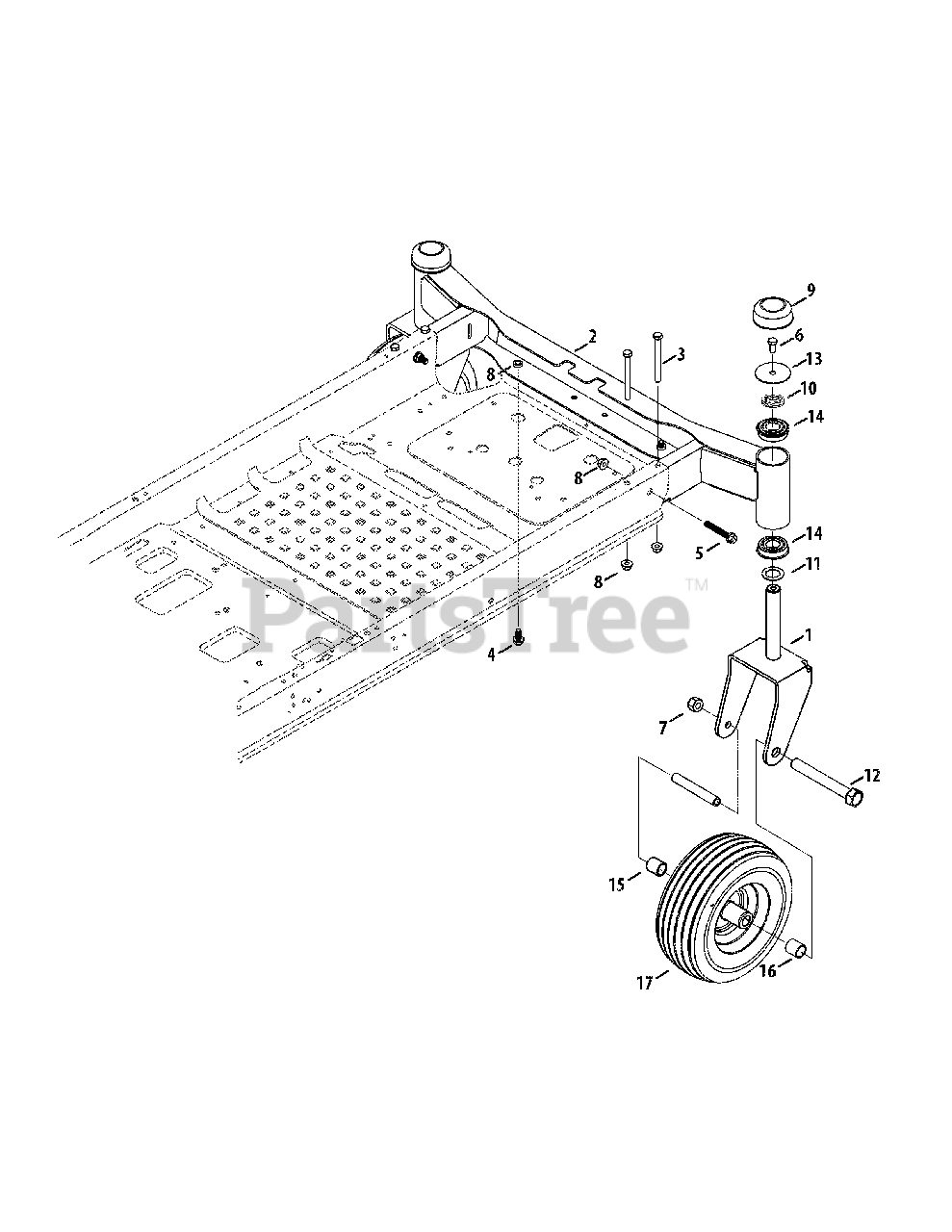

247.204460 (17ARCACT099) - Craftsman Z6400 Zero-Turn Mower (2014) Front Axle Parts Diagram

Z6400 Zero-Turn Mower

Front Axle Parts Diagram

  • Title

1

MTD 603-05058B-4044

Caster Wheel Bracket Assembly
(Superseded to 603-05058C-4044)

$110.99

$

Usually ships in 3-6 days

0

2

MTD 603-05135-4044

Front Axle

$414.99

$

Usually ships in 3-6 days

0

3

MTD 710-04576

Hex Screw, 3/8-16 x 1.00

$4.99

$

Usually ships in 3-6 days

0

4

MTD 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-06093

Hex Flange Screw, 3/8-16 x 2.00

$4.99

$

Usually ships in 3-6 days

0

6

MTD 710-3119

Hex Screw, 3/8-16 x .750

$6.99

$

In Stock, only 1 left!

0

7

MTD 912-3058

Hex Lock Nut, 1/2-13

$5.99

$

In Stock, Qty 16

0

8

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

9

MTD 731-09347

Shaft Cap

$5.99

$

In Stock, Qty 8

0

10

MTD 736-05033A

Wave Washer, .375 x 1.030 x .300

$4.99

$

In Stock, Qty 15

0

11

MTD 736-0745

Thrust Washer, 1.010 x 1.560 x .060

$12.99

$

Usually ships in 3-6 days

0

12

MTD 710-04652

Bolt, 1/2-20 x 7.25
(Superseded to 710-11661)

$6.49

$

In Stock, only 2 left!

0

13

MTD 738-05091

Shoulder Spacer, 2.500 x .200

$8.49

$

In Stock, only 3 left!

0

14

MTD 941-05022A

Ball Bearing 25 x 52 x 6205

$20.99

$

In Stock, only 2 left!

0

15

MTD 750-04775A

Spacer, .51 x .75 x 5.825

$28.99

$

In Stock, Qty 20+

0

16

MTD 750-04792

Hub, .76 x 1.23 x .92

$7.99

$

In Stock, Qty 20+

0

17

MTD 634-04711-0961

Wheel Assembly, 13 x 5-6
(Superseded to 634-04711A-0966)

$174.99

$

Usually ships in 3-6 days

0

17

MTD 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

17

MTD 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0
