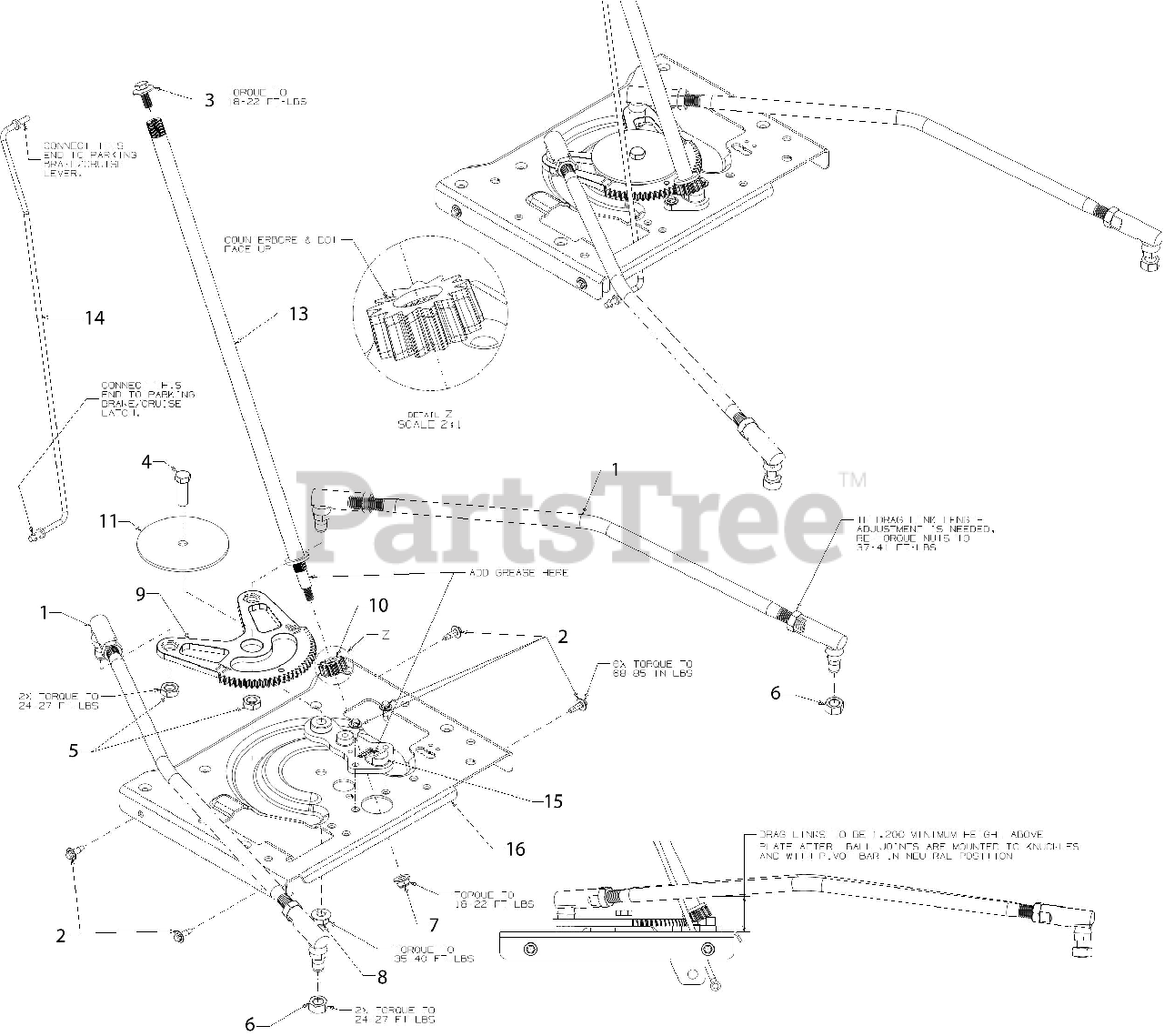

247.204450 (14A7A3ZW099) - Craftsman G8400 Garden Tractor (2016) Steering Parts Diagram

G8400 Garden Tractor

Steering Parts Diagram

  • Title

1

MTD 712-3029

NUT

Note: (Not Shown)

$6.99

$

In Stock, Qty 6

0

1

MTD 723-05013

BALL JOINT 7/16-20

Note: (Not Shown)

$33.99

$

In Stock, only 2 left!

0

1

MTD 947-05058

STEERING TIE ROD ASSEMBLY
(Superseded to 947-05058A)

$51.99

$

Usually ships in 3-6 days

0

2

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

Usually ships in 3-6 days

0

3

MTD 710-06154B

SCREW 5/16-24 x .85 GR5

$4.49

$

In Stock, Qty 11

0

4

MTD 710-3005

HEX SCREW 3/8-16X1.25

$3.99

$

In Stock, Qty 20+

0

5

MTD 912-0240

JAM NUT 7/16-20

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-3078

HEX NUT FLANGE 3/4

$9.99

$

In Stock, Qty 20+

0

7

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

9

MTD 717-05156A

STEERING GEAR SEGMENT
(Superseded to 717-05156C)

$81.99

$

In Stock, only 4 left!

0

10

MTD 717-05193B

STEERING PINION GEAR 13T

$11.99

$

In Stock, only 4 left!

0

11

MTD 736-05125A

FLAT WASHER .385 x 3.75 x .120 THK

$9.49

$

Usually ships in 3-6 days

0

13

MTD 738-05043

STEERING SHAFT .625 x 20

$55.99

$

Usually ships in 3-6 days

0

14

MTD 747-06192

CRUISE/BRAKE ROD
(Superseded to 747-06192A)

$16.99

$

Usually ships in 3-6 days

0

15

MTD 748-05071

STEERING SUPPORT PLATE
(Superseded to 748-05071B)

$63.99

$

In Stock, only 1 left!

0

16

MTD 783-08386D-0637

STEERING MOUNTING PLATE

$44.99

$

Usually ships in 3-6 days

0
