247.204450 (14A7A3ZW099) - Craftsman G8400 Garden Tractor (2015) Hood & Grille Parts Diagram

G8400 Garden Tractor

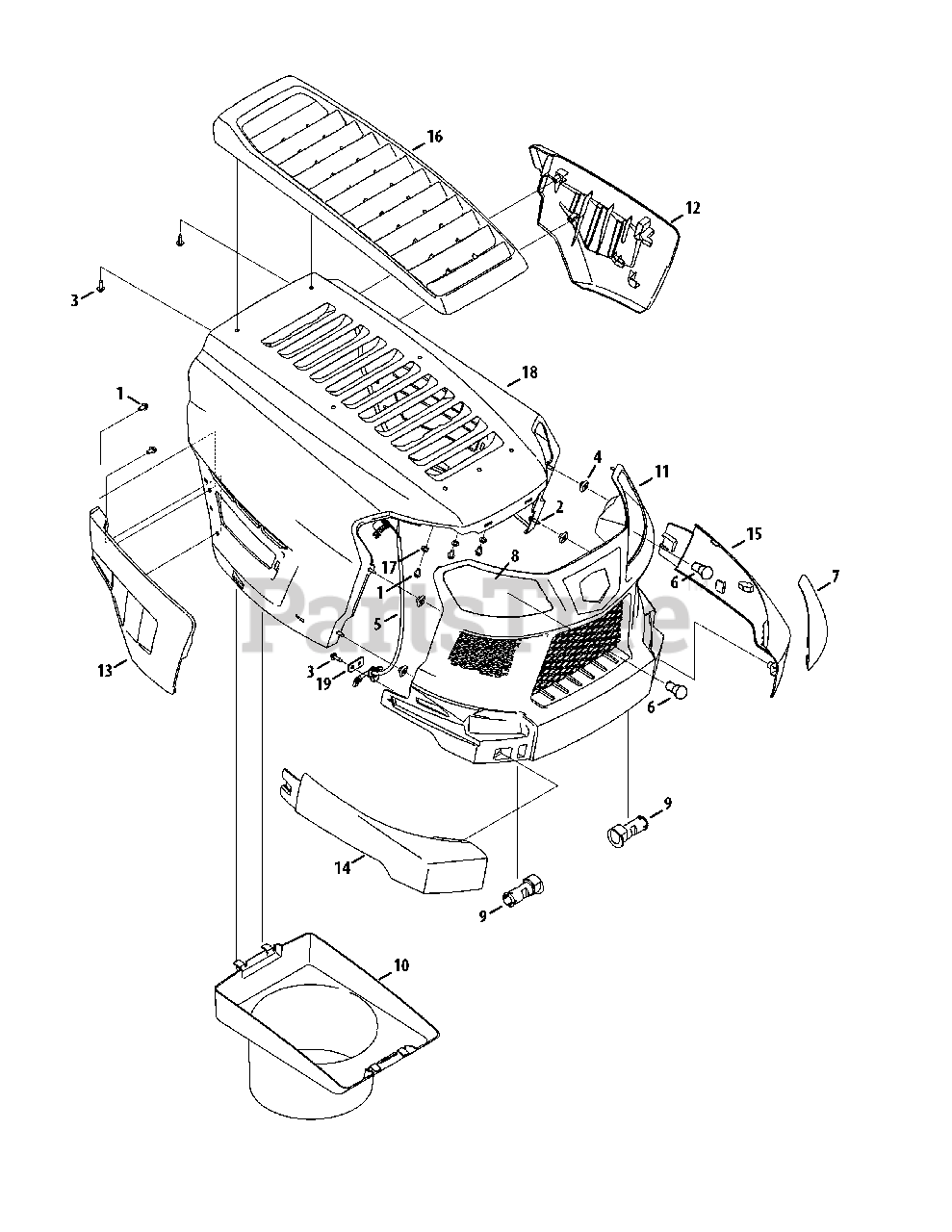

Hood & Grille Parts Diagram

  • Title

1

MTD 710-04187A

Screw, 1/4-15 x 0.50

$6.99

$

In Stock, Qty 20+

0

2

MTD 710-0433

Hex Cap Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-06147

Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-05118

Nut, 1/4-20, .433 x .170

$5.49

$

In Stock, only 2 left!

0

5

MTD 925-06132

Headlight Harness
(Superseded to 925-06463)

$26.99

$

In Stock, only 1 left!

0

6

MTD 925-0963

Miniature lamp 12V socket

$7.49

$

In Stock, only 1 left!

0

7

MTD 731-09756A

Grill Lens - LH

$9.49

$

In Stock, Qty 20+

0

8

MTD 731-09757A

Grill Lens - RH

$9.49

$

In Stock, Qty 20+

0

9

MTD 731-10070A

Hood Pin

$5.99

$

In Stock, Qty 20+

0

10

MTD 731-10958

Plenum
(Superseded to 731-10958A)

$52.99

$

In Stock, Qty 9

0

11

MTD 931-10970

Grill

$72.99

$

Usually ships in 3-6 days

0

12

MTD 731-10976

Side Cover, LH
(Superseded to 731-10976A)

$24.99

$

Usually ships in 3-6 days

0

13

MTD 731-10977

Side Cover, RH
(Superseded to 731-10977A)

$24.99

$

Usually ships in 3-6 days

0

14

MTD 731-10978

Grill Panel, RH

$20.99

$

Usually ships in 3-6 days

0

15

MTD 731-10979

Grill Panel, LH

$20.99

$

Usually ships in 3-6 days

0

16

MTD 731-10980

Hood Scoop

$53.99

$

Usually ships in 3-6 days

0

17

MTD 936-0142

Flat Washer, .281 x .500 x .063
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

18

MTD 783-08862-0691

Hood
(Superseded to 783-08862A-0691)

$189.99

$

Usually ships in 3-6 days

0

19

MTD 783-08881

Harness Bracket

$4.49

$

In Stock, Qty 12

0
