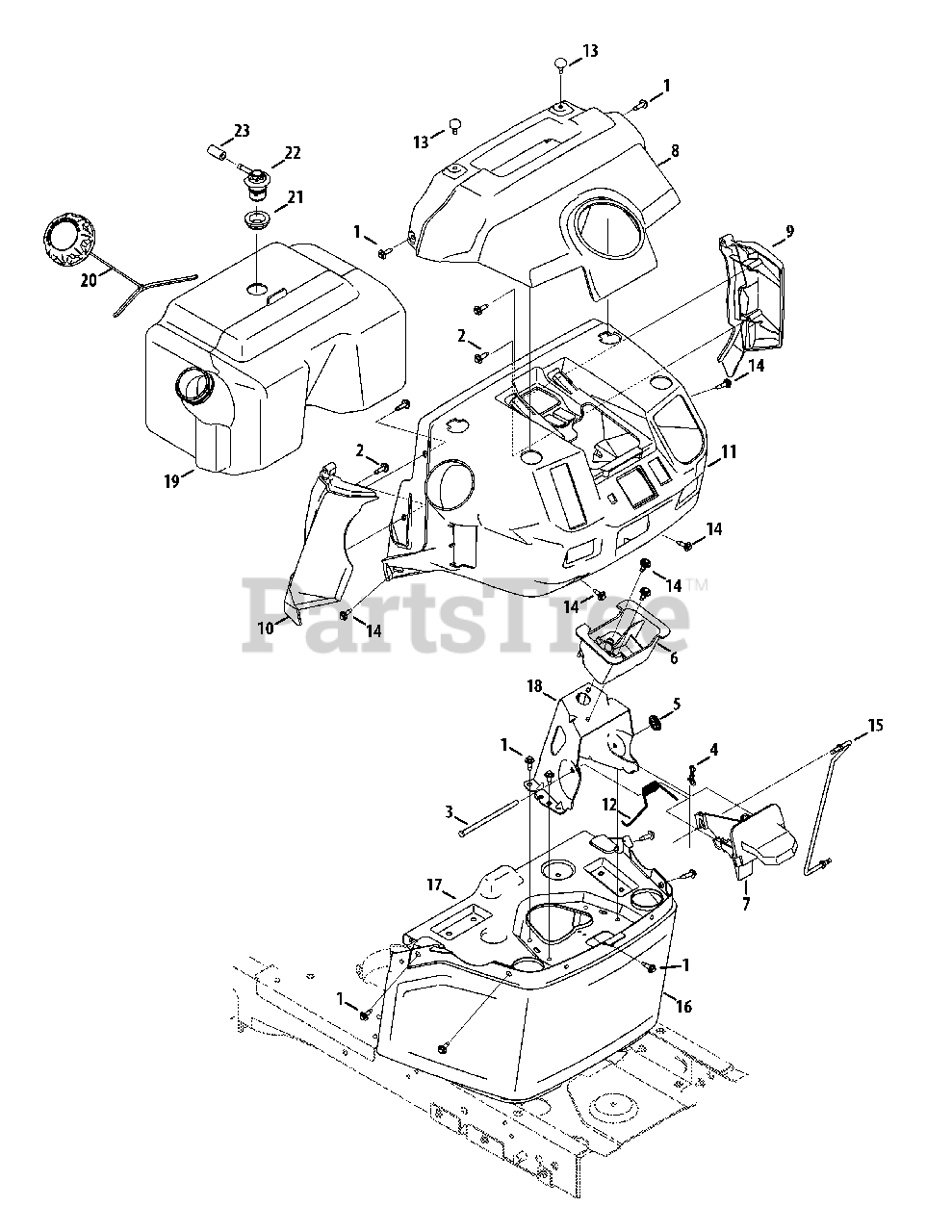

247.204450 (14A7A3ZW099) - Craftsman G8400 Garden Tractor (2015) Fuel Tank & Lower Dash Parts Diagram

G8400 Garden Tractor

Fuel Tank & Lower Dash Parts Diagram

  • Title
1

MTD 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 13

0

2

MTD 710-06147

Screw, 1/4-10 x .75

$3.99

$

In Stock, only 4 left!

0

3

MTD 711-06378

Hinge Pin, .25 Dia x 4.50 LG

$3.99

$

Usually ships in 3-6 days

0

4

MTD 714-04040

Pin, Cotter, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

5

MTD 926-04012

Push Nut, .25 dia.
(Superseded to 726-04012)

$

$

Not available

6

MTD 731-10618

Steering Shaft Bearing

$14.99

$

Usually ships in 3-6 days

0

7

MTD 731-10636B

Dash Lever
(Superseded to 731-10636C)

$12.99

$

Usually ships in 3-6 days

0

8

MTD 931-10973

Dash Cap

$45.99

$

Usually ships in 3-6 days

0

9

MTD 731-10974

Dash Cap, RH

$16.99

$

Usually ships in 3-6 days

0

10

MTD 731-10975

Dash Cap, LH

$16.99

$

Usually ships in 3-6 days

0

11

MTD 931-11066

Upper Dash
(Superseded to 931-11066B)

$63.99

$

Usually ships in 3-6 days

0

12

MTD 732-05199

Torsion Spring, .330 ID

$3.49

$

Usually ships in 3-6 days

0

13

MTD 735-0271A

Bumper, .62 Dia x .3

$8.99

$

In Stock, only 4 left!

0

14

MTD 738-05090

Shoulder Screw, .368 x .115, M6-1

$3.49

$

In Stock, Qty 20+

0

15

MTD 747-06192

Control Rod
(Superseded to 747-06192A)

$16.99

$

Usually ships in 3-6 days

0

16

MTD 783-08391-0691

Lower Dash
(Superseded to 783-08391B-0691)

$48.99

$

Usually ships in 3-6 days

0

17

MTD 783-08453-0637

Dash Plate
(Superseded to 783-09546B-0637)

$24.99

$

Usually ships in 3-6 days

0

18

MTD 783-08538-0637

Steering Bearing Mounting Bracket
(Superseded to 783-08538A-0637)

$31.99

$

Usually ships in 3-6 days

0

19

MTD 951-05101

Tank, Fuel, 3 Gal.
(Superseded to 951-05101C)

$162.99

$

Usually ships in 3-6 days

0

20

MTD 951-14767

Fuel Cap
(Superseded to 751P15242A)

$38.99

$

In Stock, only 1 left!

0

21

MTD 735-04081

Grommet, Rubber, 23.0 ID

$4.99

$

In Stock, Qty 20+

0

22

MTD 751-12118

Valve, Rollover Grommet

$35.99

$

In Stock, only 1 left!

0

23

MTD 751-12089-45

Hose, Vent

$12.99

$

In Stock, only 1 left!

0
