247.204440 (13A7A1ZW099) - Craftsman T8400 Lawn Tractor (2015) Brake Pedal Parts Diagram

T8400 Lawn Tractor

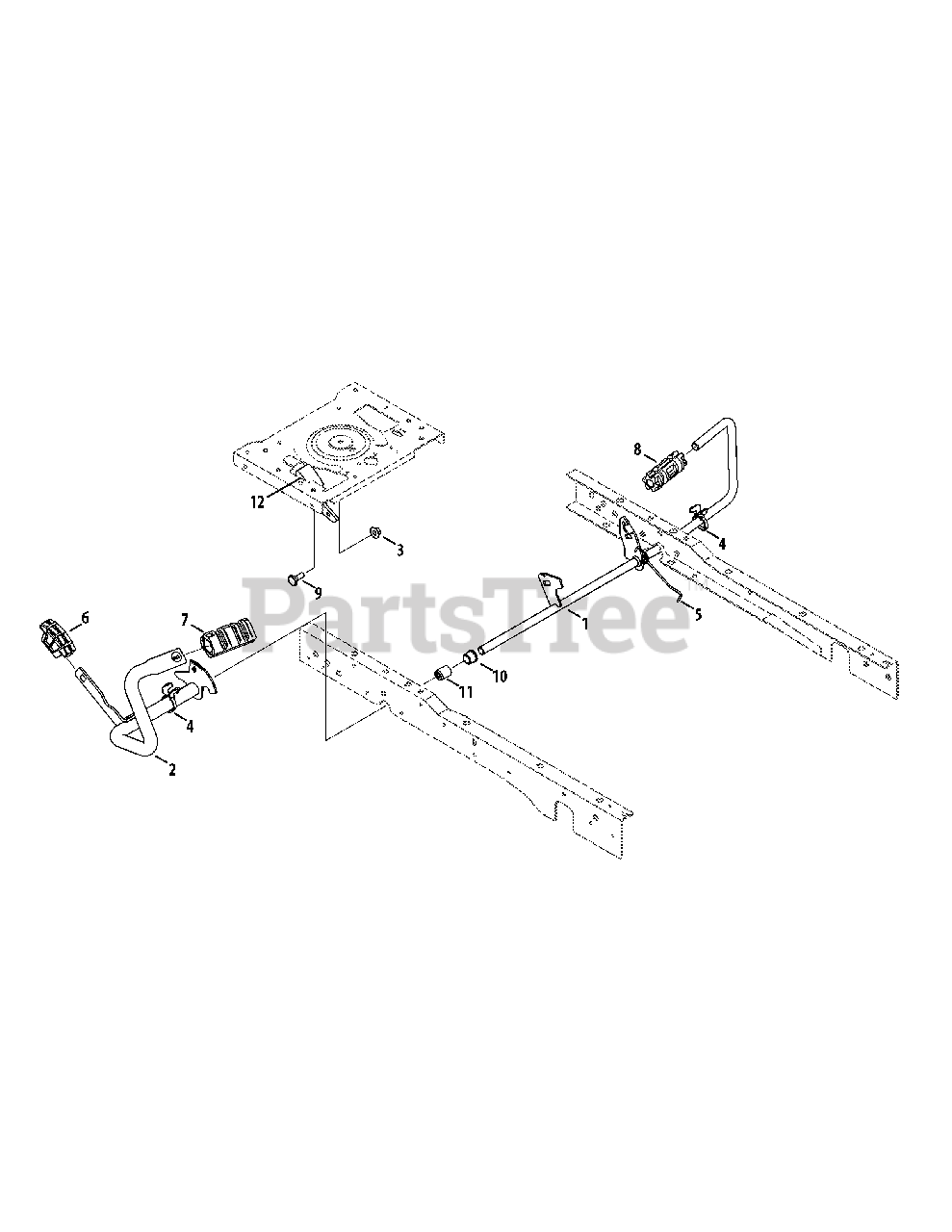

Brake Pedal Parts Diagram

  • Title

1

MTD 947-05033

Brake Pedal Assembly

$82.99

$

Usually ships in 3-6 days

0

2

MTD 949-05026

FWD/REV Pedal Assembly

$

$

Not available

3

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-09957A

Clip

$4.49

$

In Stock, Qty 5

0

5

MTD 732-05155

Torsion Spring, .725 ID

$5.49

$

In Stock, only 1 left!

0

6

MTD 735-05028

Reverse Pedal Pad

$6.49

$

In Stock, Qty 11

0

7

MTD 735-05030

Forward Pedal Pad

$12.99

$

In Stock, only 1 left!

0

8

MTD 735-05051

Brake Pedal Pad

$11.99

$

In Stock, only 1 left!

0

9

MTD 938-0380

Shoulder Screw, .50 x .27, 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

10

MTD 741-05074A

Flange Bearing, .63 x .84 x .71
(Superseded to 741-05074B)

$2.99

$

In Stock, Qty 6

0

11

MTD 741-05085A

Plastic Sleeve Bearing

$3.49

$

In Stock, Qty 6

0

12

MTD 748-04203

Cruise Latch

$14.99

$

Usually ships in 3-6 days

0
