247.204430 (14A7A3ZQ099) - Craftsman G8300 Garden Tractor (2015) Seat Assembly Parts Diagram

G8300 Garden Tractor

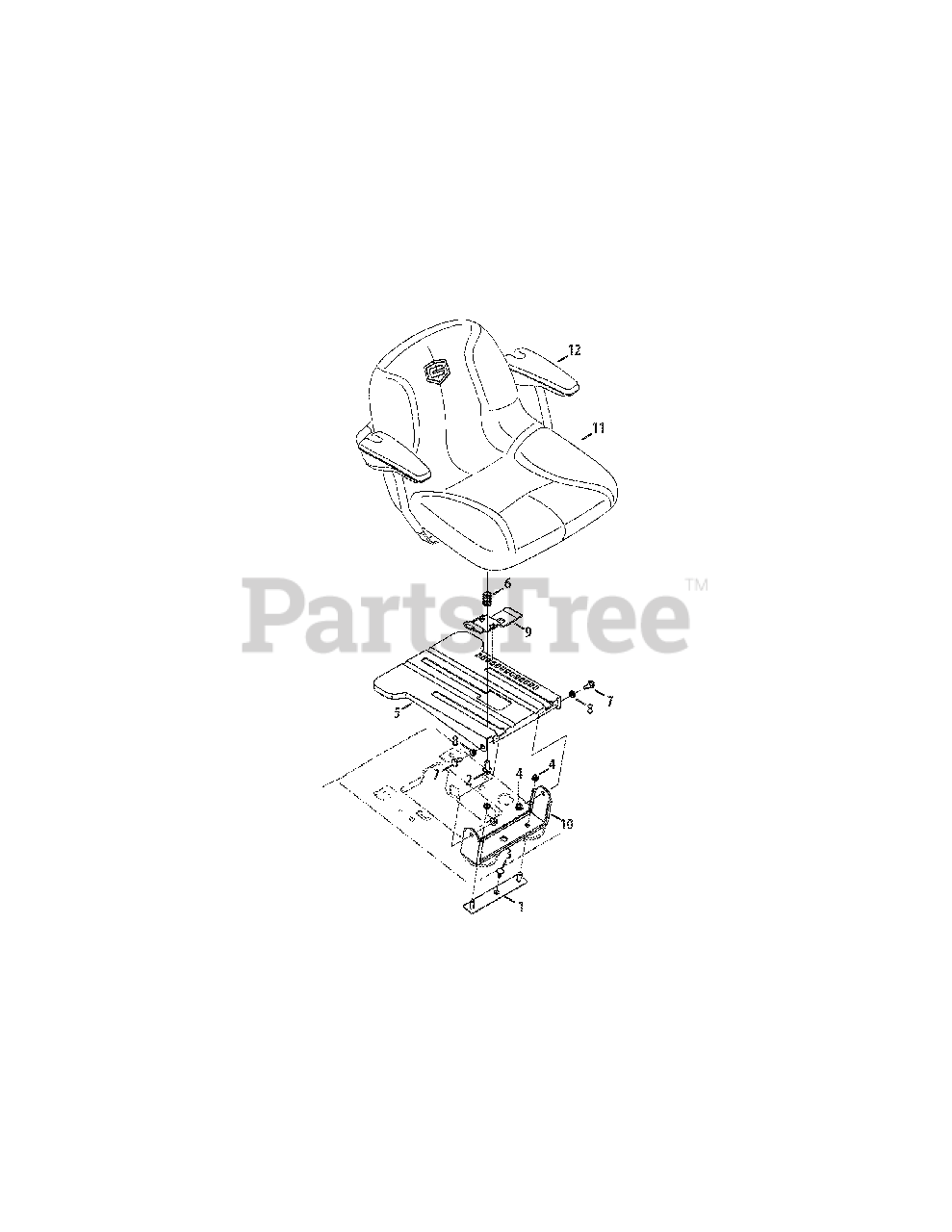

Seat Assembly Parts Diagram

  • Title

1

MTD 983-05111A

Seat Pivot Plate Assembly

$14.99

$

Usually ships in 3-6 days

0

2

MTD 710-04482

Hex Flange Screw, 3/8/16, .875, Gr5

$4.49

$

In Stock, Qty 14

0

3

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

4

MTD 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

Usually ships in 3-6 days

0

5

MTD 783-08452-0637

Bracket, Mounting, Seat

$44.99

$

Usually ships in 3-6 days

0

6

MTD 732-04563

Compression Spring, .68 x 1.065 x .055

$5.49

$

In Stock, Qty 20+

0

7

MTD 938-0140

Shoulder Screw, .435 x .178, 5/16 x .56
(Superseded to 738-0140)

$

$

Not available

8

MTD 741-05128

Flange Bearing, .4385 ID

$3.99

$

Usually ships in 3-6 days

0

9

MTD 783-06050

Seat Lever

$10.99

$

In Stock, only 1 left!

0

10

MTD 783-08563-0637

Pivot Bracket, Tall

$21.99

$

Usually ships in 3-6 days

0

11

MTD 757-05048

Seat
(Superseded to 757-05241)

Note: (without arm rests)

$303.99

$

Usually ships in 3-6 days

0

11

MTD 925-05013

Seat Switch

Note: (not shown)

$31.99

$

In Stock, only 2 left!

0

11

MTD 783-06448

Collar, Retaining

Note: (not shown)

$5.99

$

In Stock, only 3 left!

0

12

MTD 759-04252

Arm Rest Kit

$157.99

$

Usually ships in 3-6 days

0
