247.204430 (14A7A3ZQ099) - Craftsman G8300 Garden Tractor (2015) Fenders Parts Diagram

G8300 Garden Tractor

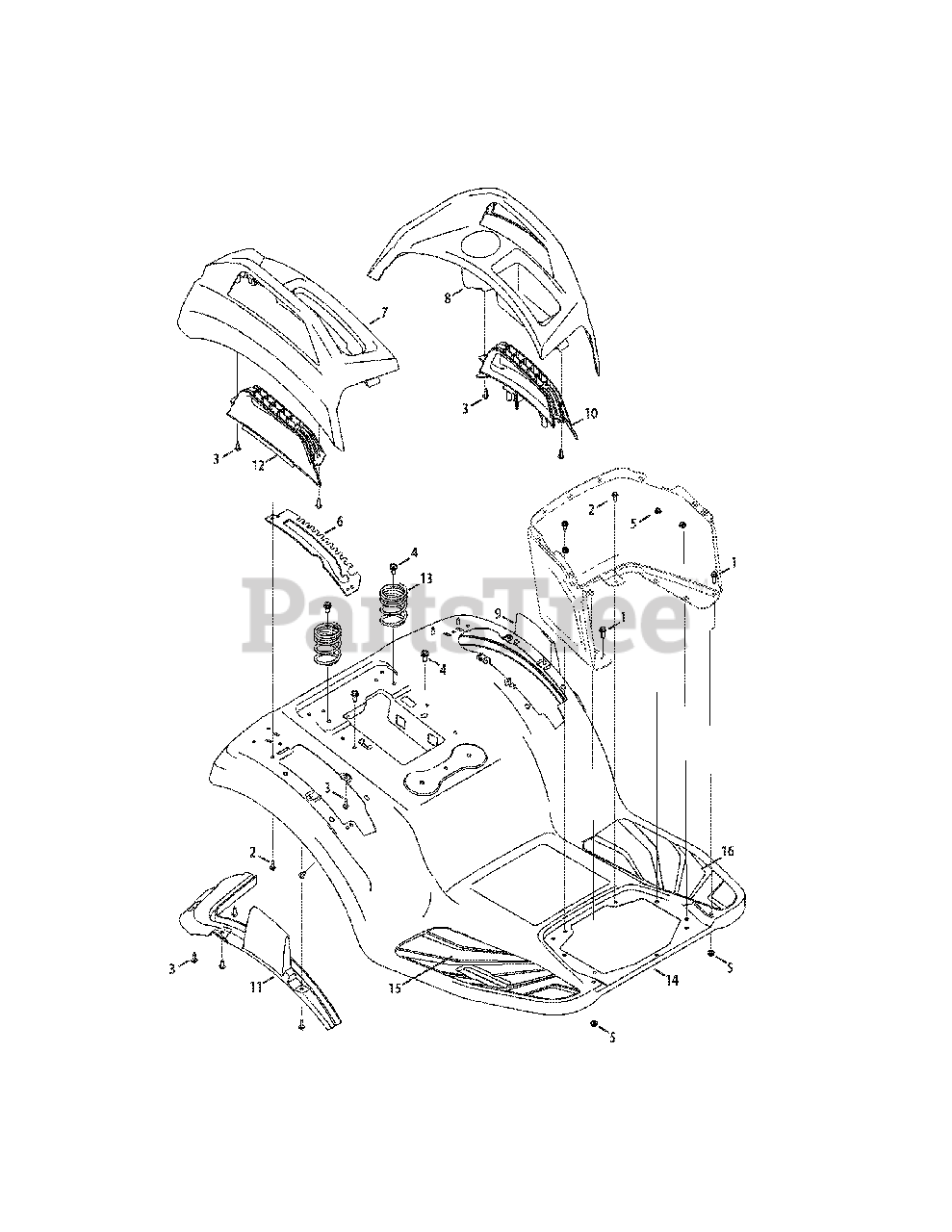

Fenders Parts Diagram

  • Title

1

MTD 710-04666

Hex flange Screw, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

2

MTD 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 11

0

3

MTD 710-06147

Screw, 1/4-10 x .75

$3.99

$

In Stock, only 4 left!

0

4

MTD 710-0623

Screw, Self-tapping, 3/8-16, 0.750,

$4.49

$

In Stock, only 2 left!

0

5

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

6

MTD 783-08559

Lift Index Bracket

Variations

MTD 783-08559-0637

Lift Index Bracket - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

7

MTD 631-05258

Upper Cover, RH
(Superseded to 631-05258A)

$58.99

$

In Stock, only 1 left!

0

8

MTD 731-09768

Upper Cover, LH

$55.99

$

Usually ships in 3-6 days

0

9

MTD 731-10354

Lower Cover, LH

$23.99

$

In Stock, only 1 left!

0

10

MTD 731-10434

Cover Handle, LH

$18.99

$

Usually ships in 3-6 days

0

11

MTD 731-10523

Lower Cover, RH

$23.99

$

In Stock, only 1 left!

0

12

MTD 731-10524

Cover Handle. RH

$18.99

$

In Stock, only 1 left!

0

13

MTD 732-05182A

Compression Spring, 2.50 x 3.951 x .207

$11.99

$

In Stock, only 1 left!

0

14

MTD 783-08279A-0691

Fender
(Superseded to 783-08279C-0691)

$420.99

$

Usually ships in 3-6 days

0

15

MTD 731-09812

Pad, Foot, RH
(Superseded to 731-09812A)

$17.99

$

In Stock, only 1 left!

0

16

MTD 731-09731

Pad, Foot, LH
(Superseded to 731-09731A)

$16.99

$

Usually ships in 3-6 days

0
