247.204420 (13AQA1ZT099) - Craftsman T8200 Lawn Tractor (2015) Wheel Assembly Parts Diagram

T8200 Lawn Tractor

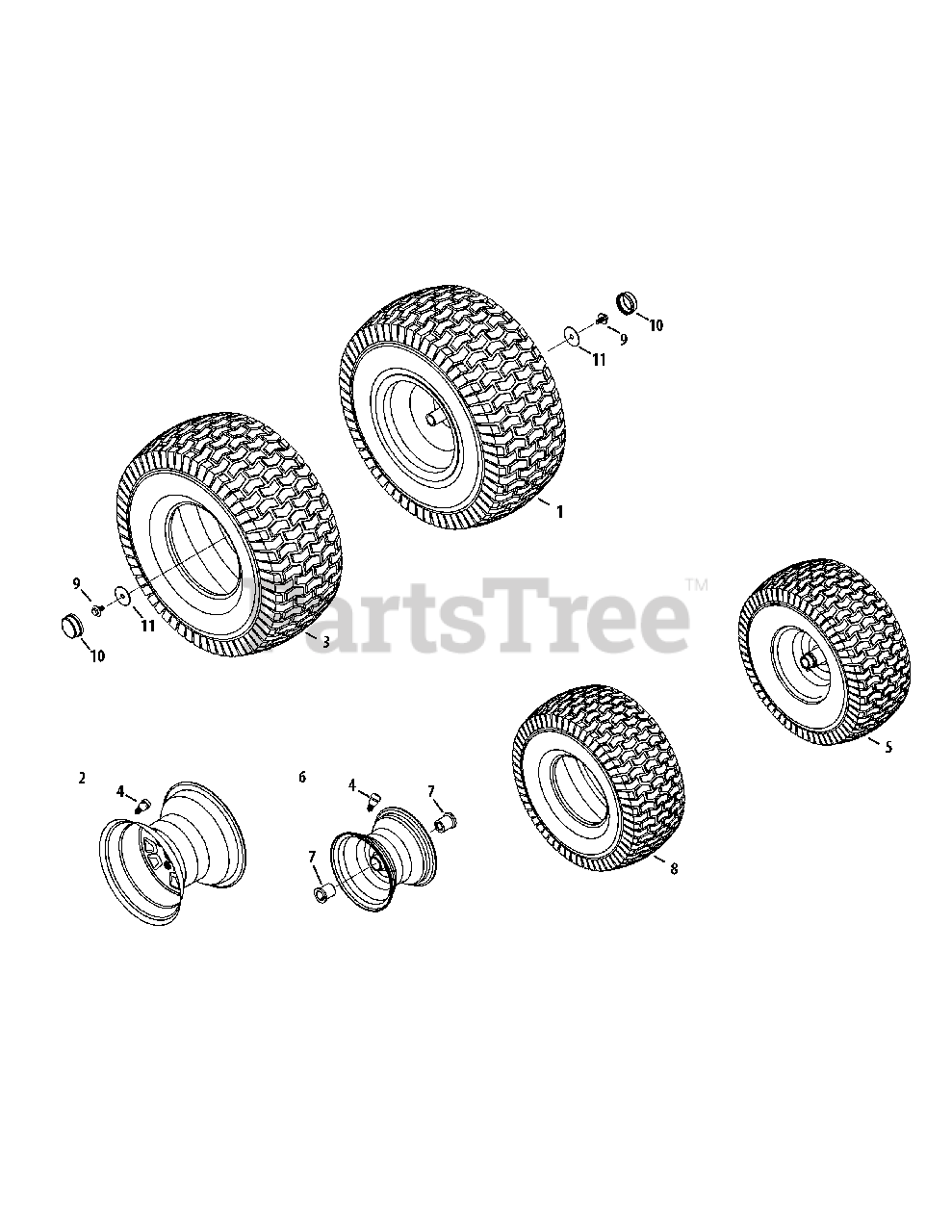

Wheel Assembly Parts Diagram

  • Title

1

MTD 634-0104-4028

Wheel, Complete, 20 x 8 x 8
(Superseded to 934-0104-4028)

$550.99

$

Usually ships in 3-6 days

0

2

MTD 634-04369-4028

Rim Ass’y, 8.0 x 7.0 x .750 ID

$165.99

$

Usually ships in 3-6 days

0

3

MTD 734-1730-0901

Tire, 20 x 8 x 8 Sq Shoulder

$99.99

$

In Stock, only 1 left!

0

4

MTD 934-0255

Valve, Tubeless Air

$4.49

$

In Stock, Qty 20+

0

5

MTD 634-05178-4028

Wheel, Complete, 15 x 6 x 6
(Superseded to 634Z05178-4028)

$215.99

$

Usually ships in 3-6 days

0

6

MTD 634-05177-4028

Rim Ass’y, 6.0 x 4.5, Flnge Bearings

$

$

Not available

7

MTD 741-05094

Bearing, Flange, .760 ID

$7.49

$

In Stock, Qty 13

0

8

MTD 734-1731-0901

Tire, 15 x 6 x 6 Sq Shoulder

$49.99

$

Usually ships in 3-6 days

0

9

MTD 710-06154B

Screw, 5/16-24 x .850

$4.49

$

In Stock, Qty 11

0

10

MTD 931-0484A

Hub Cap

$6.49

$

In Stock, Qty 20+

0

11

MTD 736-0430

Flat Washer, .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0
