247.204420 (13AQA1ZT099) - Craftsman T8200 Lawn Tractor (2015) Frame Assembly Parts Diagram

T8200 Lawn Tractor

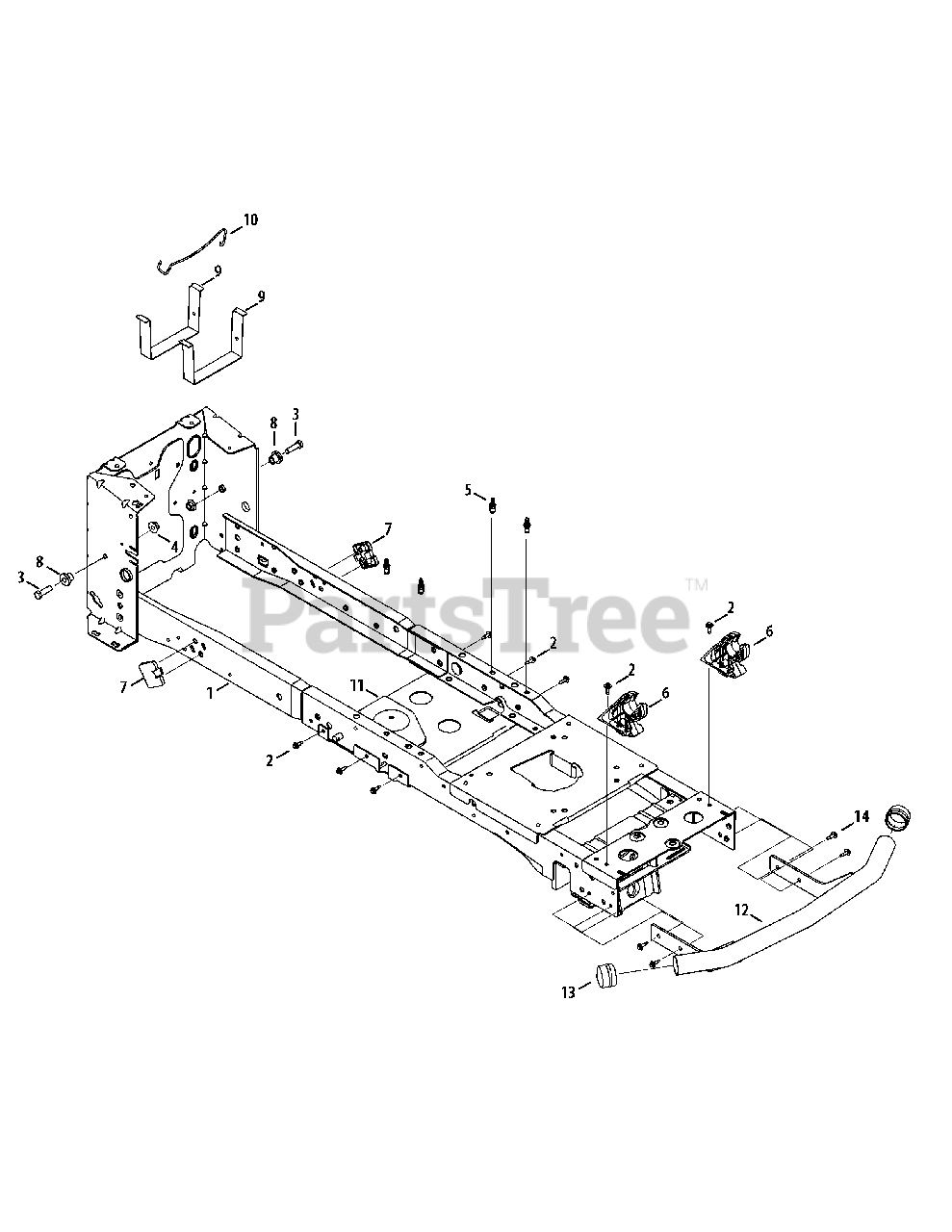

Frame Assembly Parts Diagram

  • Title

1

MTD 983-05067A

Frame Assembly
(Superseded to 983-05067F)

$456.99

$

Usually ships in 3-6 days

0

2

MTD 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 10

0

3

MTD 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

5

MTD 728-05015

Rivet, 1/4-20 x .750

$5.49

$

In Stock, only 1 left!

0

6

MTD 731-10069C

Pivot Bracket
(Superseded to 731-10069D)

$11.99

$

In Stock, Qty 20+

0

7

MTD 731-10281A

Wear Pad

$4.49

$

In Stock, only 2 left!

0

8

MTD 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.49

$

In Stock, only 1 left!

0

9

MTD 783-08567-0637

Battery Bracket

$7.49

$

Usually ships in 3-6 days

0

10

MTD 747-06329-0637

Rod, Battery
(Superseded to 747-06929-0637)

$9.49

$

In Stock, only 4 left!

0

11

MTD 783-08276

Lower Frame Brace Bracket

Variations

MTD 783-08276-0637

Frame Bracket - POWDER BLACK (0637)

$42.99

$

In Stock, only 1 left!

0

$42.99

$

In Stock, only 1 left!

0

12

MTD 683-05155-4028

Bumper Assenbly

$90.99

$

Usually ships in 3-6 days

0

13

MTD 731-05368

Hub Cap

$5.99

$

In Stock, Qty 10

0

14

MTD 710-06012A

Hex Flange Screw, 3/8-16

$3.99

$

In Stock, Qty 7

0
