247.204420 (13AQA1ZT099) - Craftsman T8200 Lawn Tractor (2015) Fender Parts Diagram
T8200 Lawn Tractor

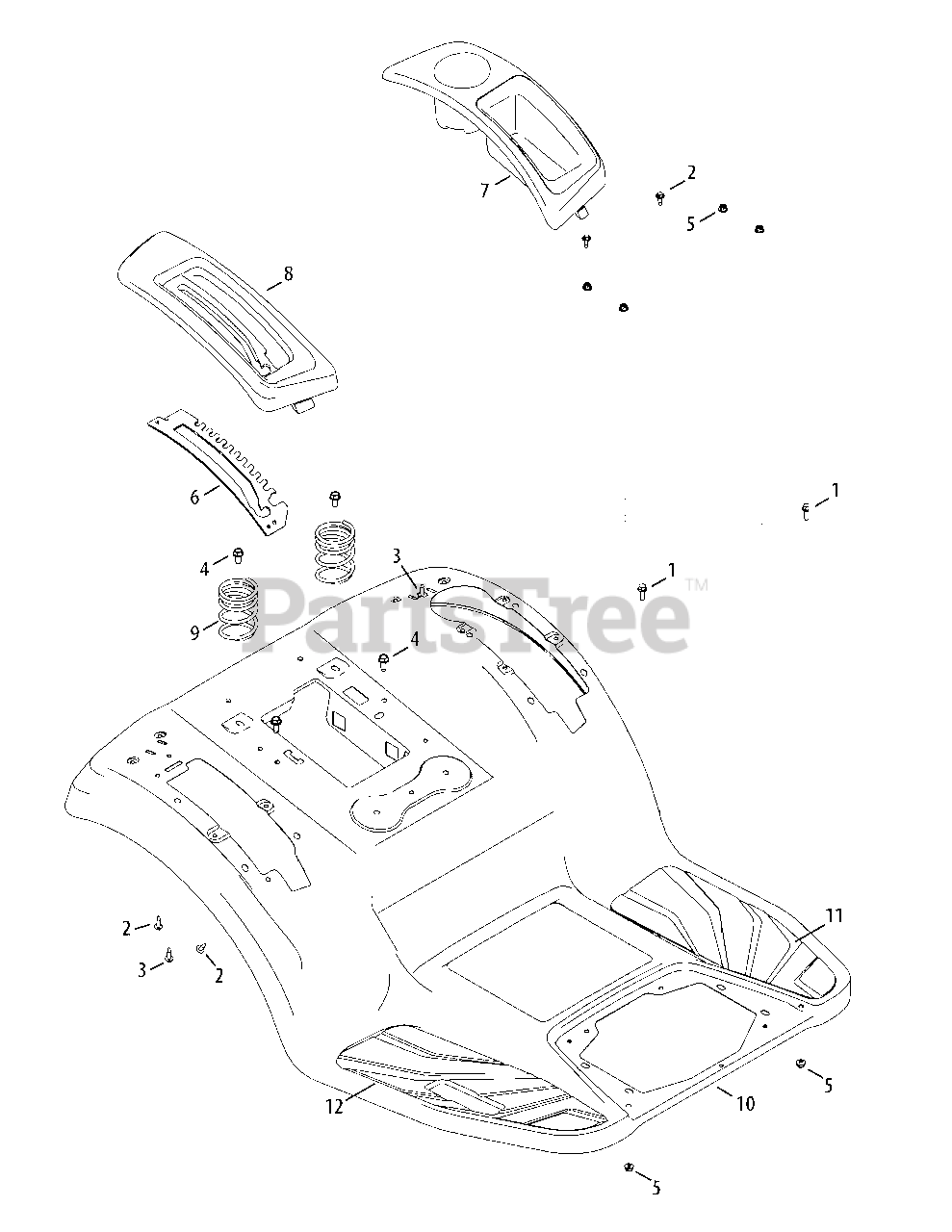

Fender Parts Diagram
MTD 710-04666
Hex flange Screw, 1/4-20 x .75
$6.99
$
In Stock, only 3 left!
MTD 710-06133
Screw, M6-1 x .625
$3.99
$
In Stock, Qty 11
MTD 710-06147
Screw, 1/4-10 x .75
$3.99
$
In Stock, only 4 left!
MTD 710-0623
Screw, Self-tapping, 3/8-16, 0.750,
$4.49
$
In Stock, only 2 left!
MTD 712-04064
Nut, Flange Lock, 1/4-20, Nylon
$3.99
$
In Stock, Qty 20+
MTD 783-08559
Lift Index Bracket
Variations
MTD 783-08559-0637
Lift Index Bracket - POWDER BLACK (0637)
$18.99
$
Usually ships in 3-6 days
$18.99
$
Usually ships in 3-6 days
MTD 731-10172A
Cover, LH
$27.99
$
Usually ships in 3-6 days
MTD 631-05259
Cover, RH, Electric PTO
$33.99
$
Usually ships in 3-6 days
MTD 732-05182A
Compression Spring, 2.50 x 3.951 x .207
$11.99
$
In Stock, only 1 left!
$420.99
$
Usually ships in 3-6 days
$16.99
$
Usually ships in 3-6 days
$17.99
$
In Stock, only 1 left!
