247.204400 (13APA1ZS099) - Craftsman T8000 Lawn Tractor (2015) PTO Assembly Parts Diagram

T8000 Lawn Tractor

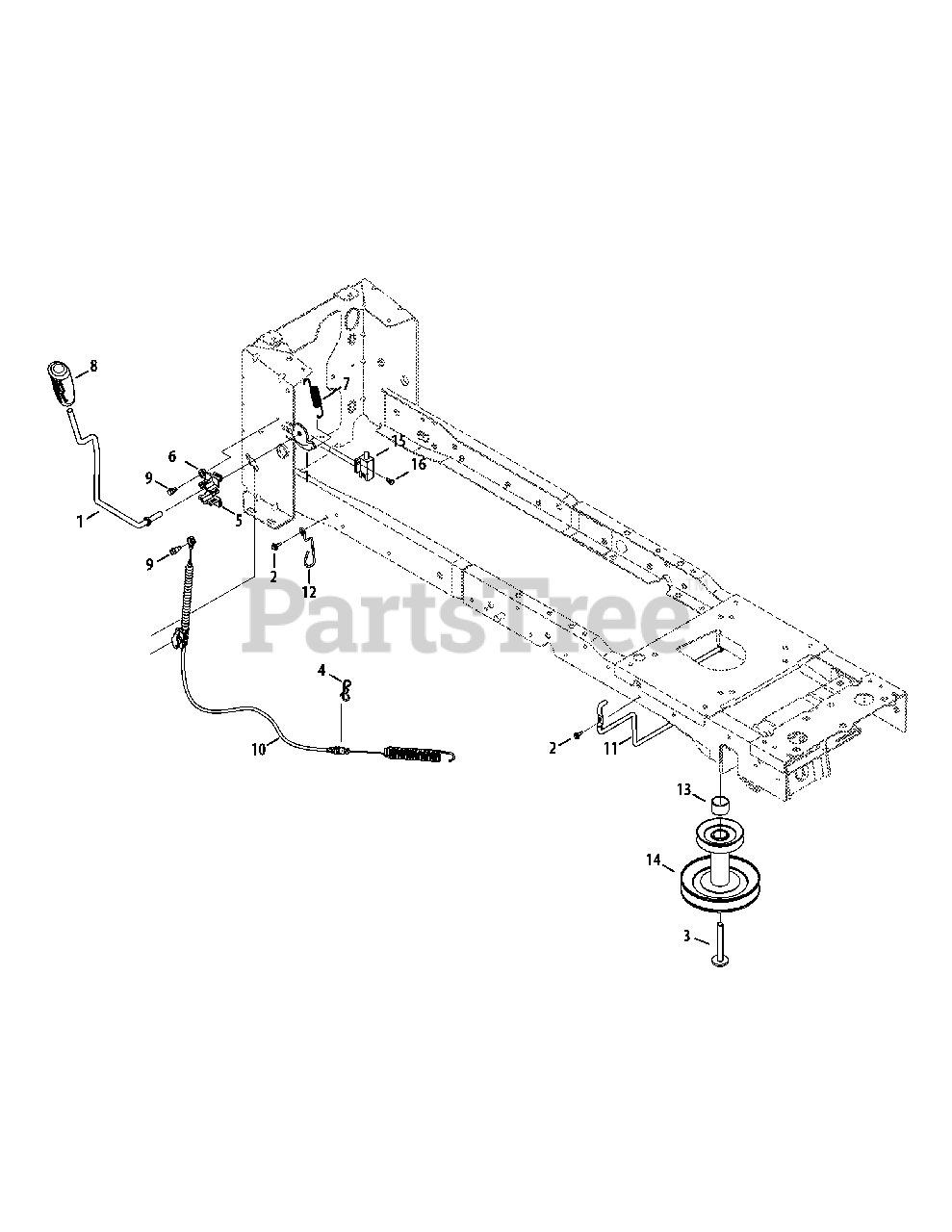

PTO Assembly Parts Diagram

  • Title

1

MTD 983-05105A

PTO Handle Assembly

$39.99

$

In Stock, Qty 20+

0

2

MTD 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 8

0

3

MTD 710-06266

Hex Cap Screw, 7/16-20 x 3.50

$13.99

$

In Stock, only 1 left!

0

4

MTD 714-05005

Bow-Tie Cotter Pin

$4.99

$

Usually ships in 3-6 days

0

5

MTD 731-10066A

PTO Handle Mount, RH

$4.49

$

In Stock, Qty 20+

0

6

MTD 731-10067A

PTO Handle Mount, Top
(Superseded to 731-10067C)

$4.49

$

In Stock, Qty 20+

0

7

MTD 732-05119

Extension Spring, .56 OD x 4.52 LG

$9.49

$

In Stock, only 1 left!

0

8

MTD 720-05086

Grip

$12.99

$

In Stock, only 1 left!

0

9

MTD 738-04425

Shoulder Screw, .342 x .335, 1/4-28

$4.49

$

In Stock, Qty 20+

0

10

MTD 946-05087A

PTO Cable
(Superseded to 946-05087D)

$37.99

$

In Stock, Qty 6

0

11

MTD 747-06239A

Engine Pulley Keeper Rod
(Superseded to 747-06239B)

$25.99

$

In Stock, Qty 5

0

12

MTD 747-06308

Cable Guide

$3.49

$

In Stock, Qty 20+

0

13

MTD 748-05078

Spacer, Engine Pulley
(Superseded to 748-05078A)

$7.49

$

In Stock, only 1 left!

0

14

MTD 956-04067A

Pulley, Engine, 3.56 x 6.12 Dia.
(Superseded to 956-04067B)

$81.99

$

In Stock, only 1 left!

0

15

MTD 725-04363

Switch, Interlock

$15.99

$

In Stock, Qty 13

0

16

MTD 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0
