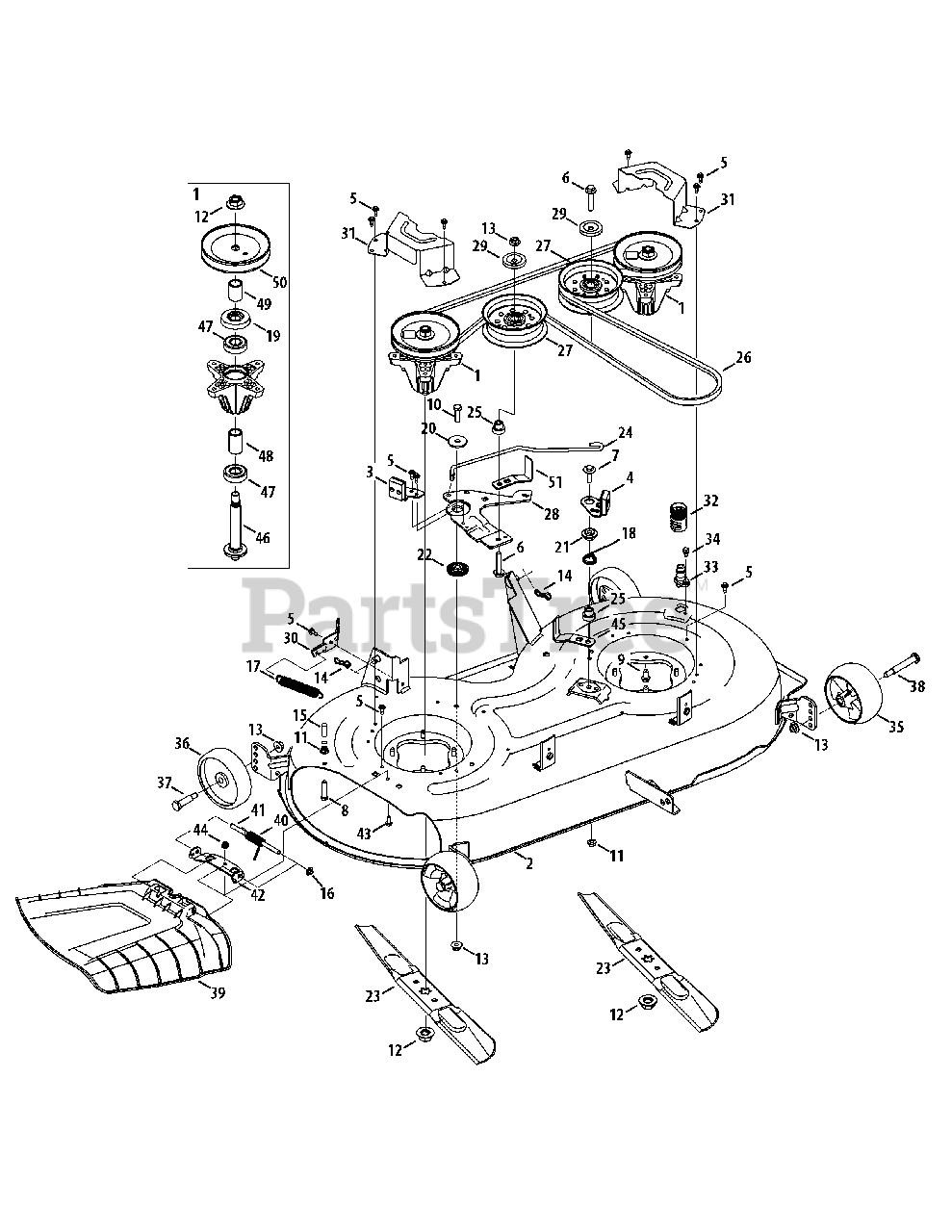

247.204400 (13APA1ZS099) - Craftsman T8000 Lawn Tractor (2015) Mower Deck Parts Diagram

T8000 Lawn Tractor

Mower Deck Parts Diagram

  • Title

1

MTD 918-06976

Spindle Ass’y, Pulley, 6.3 Dia
(Superseded to 918-06976A)

$147.99

$

In Stock, Qty 20+

0

2

MTD 983-05076-4028

Deck, 42"
(Superseded to 983-05076A-4028)

$852.99

$

Usually ships in 3-6 days

0

3

MTD 983-05182

Brake Assembly, Deck, RH
(Superseded to 983-05182B)

$99.99

$

Usually ships in 3-6 days

0

4

MTD 983-05183

Brake Assembly, Deck, LH
(Superseded to 753-09904A)

$106.99

$

In Stock, only 1 left!

0

5

MTD 710-06133

Screw, M6-1 x .625

$3.99

$

Usually ships in 3-6 days

0

6

MTD 710-06178

Hex Cap Screw, 3/8-16 x 2.00

$6.49

$

In Stock, Qty 20+

0

7

MTD 710-06213

Hex Cap Screw, 5/16-18 x 1.25

$6.49

$

In Stock, only 3 left!

0

8

MTD 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-1260A

Screw, Self-tapping, 5/16-18, 0.750,

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

13

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 16

0

14

MTD 714-05005

Bow-Tie Cotter Pin

$4.99

$

In Stock, only 2 left!

0

15

MTD 720-05010

Vinyl Cap, .29 x .50

$4.49

$

In Stock, Qty 7

0

16

MTD 726-04009

Push Cap
(Superseded to 726-04009A)

$7.49

$

In Stock, only 2 left!

0

17

MTD 732-04629

Spring, Extension, .750 x .477

$28.99

$

In Stock, Qty 5

0

18

MTD 732-05151A

Spring, Torsion, LH Brake

$4.49

$

In Stock, Qty 20+

0

19

MTD 783-08435

Bearing Shield

$7.49

$

Usually ships in 3-6 days

0

20

MTD 936-0227

Flat Washer, .39 x 1.5 x .134
(Superseded to 736-0227)

$

$

Not available

21

MTD 738-05088

Shoulder Spacer, .75 x .145

$4.49

$

In Stock, only 1 left!

0

22

MTD 738-05099

Shoulder Spacer, .854 x .191

$7.49

$

Usually ships in 3-6 days

0

23

MTD 942-04308

Blade, Cut, 21.23" 2-In-1, Cub
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

24

MTD 747-06452

Rod, Brake, Deck

$14.99

$

In Stock, only 1 left!

0

25

MTD 748-05029A

Shoulder Spacer, Idler

$4.99

$

In Stock, Qty 20+

0

26

MTD 954-05021

Belt, V-Type, A Sec x 99.75

$50.99

$

In Stock, Qty 20+

0

27

MTD 756-05034

Pulley, Idler, 4.50" Dia.
(Superseded to 756-05034A)

$45.99

$

In Stock, Qty 20+

0

28

MTD 783-08863-0637

Idler Bracket
(Superseded to 783E08863A)

$

$

Not available

29

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

30

MTD 783-08406-0637

Bracket, Cable, PTO

$9.49

$

In Stock, only 1 left!

0

31

MTD 783-08510-0691

Belt Cover
(Superseded to 783-08510D-0637)

$13.99

$

In Stock, Qty 20+

0

32

MTD 921-04041

Coupler, Water

$23.99

$

In Stock, Qty 20+

0

33

MTD 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

34

MTD 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 20+

0

35

MTD 734-04155

Wheel, Deck, 5.0 Dia. Ball

$20.99

$

In Stock, Qty 20+

0

36

MTD 734-0973

Wheel, Deck 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

37

MTD 938-0373

Bolt, Shoulder, .496 x 1.525, 3/8-16

$9.49

$

In Stock, Qty 20+

0

38

MTD 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

39

MTD 631-04354B

Chute Deflector Assembly
(Superseded to 631-04354C)

$43.99

$

In Stock, Qty 20+

0

40

MTD 732-05261

Spring, Torsion, .440 ID x 1.75

$5.99

$

In Stock, Qty 20+

0

41

MTD 747-06290B

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

42

MTD 783-08504A

Bracket, Chute, 42"
(Superseded to 783-08504B)

Variations

MTD 783-08504A-0637

Deflector Chute Mounting Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 7

0

$14.99

$

In Stock, Qty 7

0

43

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

44

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

45

MTD 783-08690-0637

Belt Keeper
(Superseded to 783-08690A-0637)

$12.99

$

In Stock, Qty 20+

0

46

MTD 738-1010A

Shaft, Spindle, 5.75

$46.99

$

In Stock, only 2 left!

0

47

MTD 941-0919B

Bearing, Ball, .787id x 1.85 Od x .551

$21.99

$

In Stock, Qty 20+

0

48

MTD 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

49

MTD 750-06142

Spacer, .800 x 1.10 x 1.470

$5.49

$

Usually ships in 3-6 days

0

50

MTD 756-05031

Pulley, Deck, 5.40 Dia.

$23.99

$

In Stock, only 3 left!

0
