247.204400 (13APA1ZS099) - Craftsman T8000 Lawn Tractor (2015) Fenders Parts Diagram

T8000 Lawn Tractor

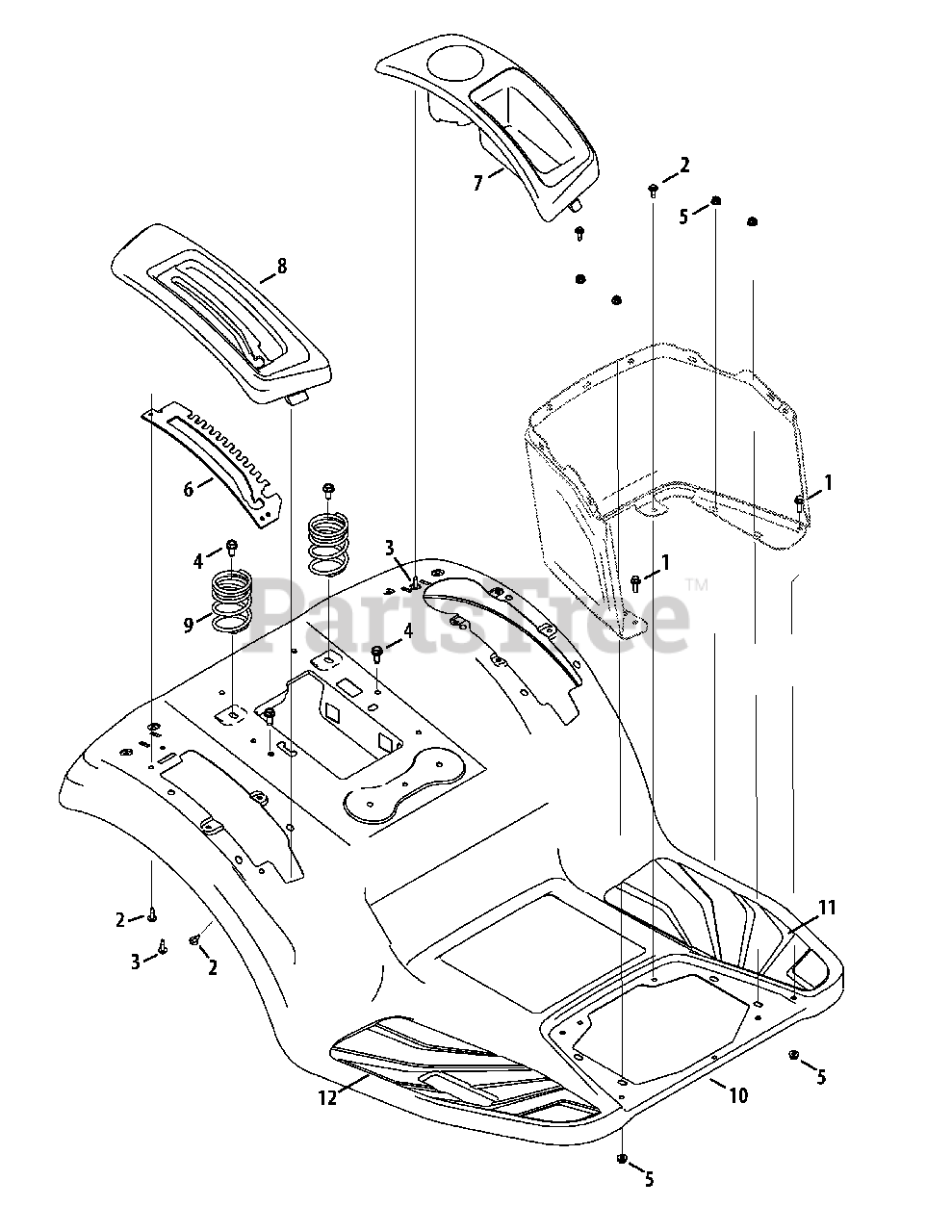

Fenders Parts Diagram

  • Title
1

MTD 710-04666

Hex flange Screw, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

2

MTD 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 10

0

3

MTD 710-06147

Screw, 1/4-10 x .75

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0623

Screw, Self-tapping, 3/8-16, 0.750,

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

6

MTD 783-08559

Lift Index Bracket

Variations

MTD 783-08559-0637

Lift Index Bracket - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

7

MTD 731-10172A

Cover, LH

$27.99

$

In Stock, only 1 left!

0

8

MTD 631-05261

Cover, RH, Manual PTO

$35.99

$

Usually ships in 3-6 days

0

9

MTD 732-05182A

Compression Spring, 2.50 x 3.951 x .207

$11.99

$

In Stock, only 1 left!

0

10

MTD 783-08279A-0691

Fender
(Superseded to 783-08279C-0691)

$420.99

$

Usually ships in 3-6 days

0

11

MTD 731-09731

Pad, Foot, LH
(Superseded to 731-09731A)

$16.99

$

Usually ships in 3-6 days

0

12

MTD 731-09812

Pad, Foot, RH
(Superseded to 731-09812A)

$17.99

$

In Stock, only 1 left!

0
