247.204240 (17ASDALD099) - Craftsman Z8600 Zero-Turn Mower (2015) Seat Assembly Parts Diagram

Z8600 Zero-Turn Mower

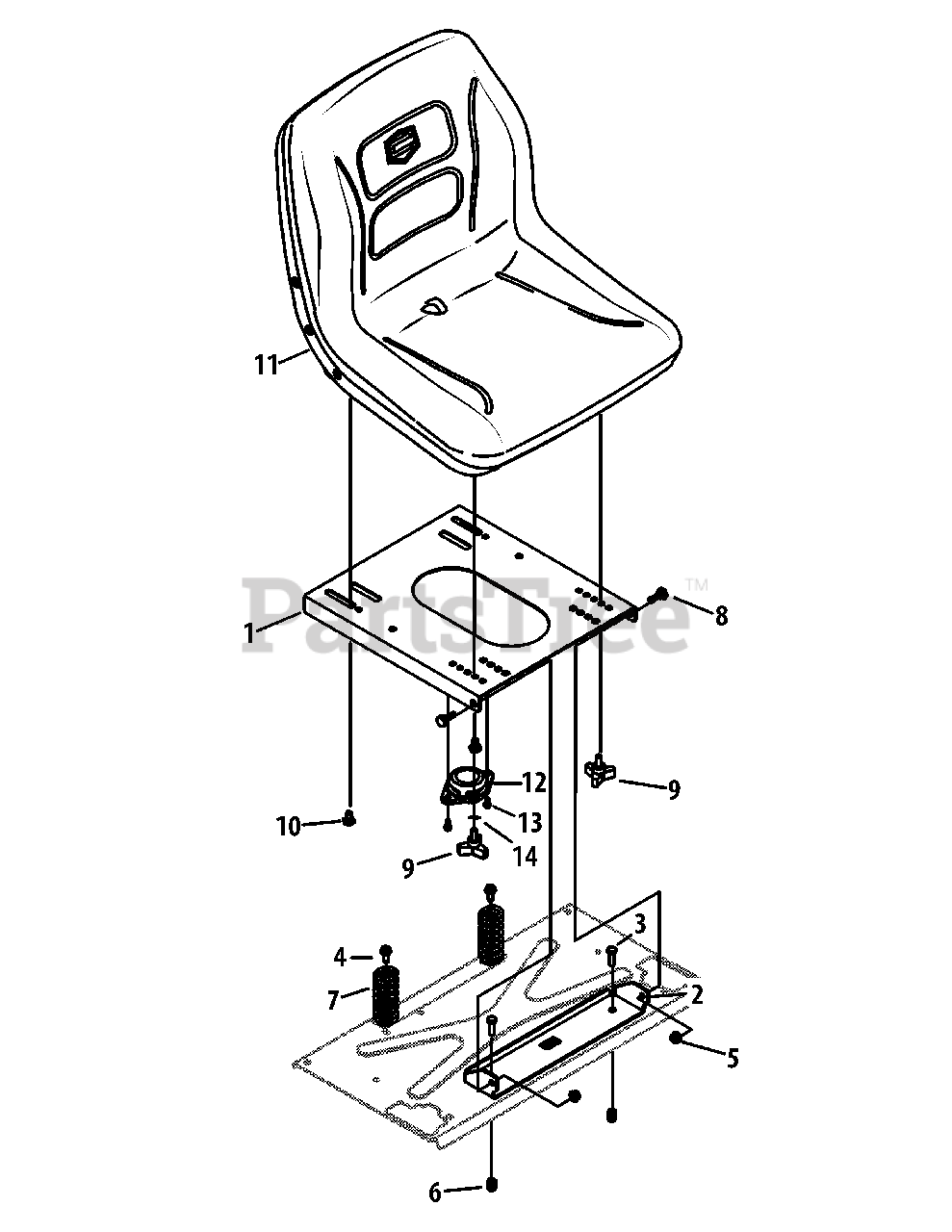

Seat Assembly Parts Diagram

  • Title

1

MTD 703-09603A-0691

Seat Plate

$84.99

$

Usually ships in 3-6 days

0

2

MTD 703-09633-0691

Seat Pivot Bracket

$29.99

$

Usually ships in 3-6 days

0

3

MTD 710-0643

Hex Screw, 5/16-18 x 1.00

$6.99

$

In Stock, Qty 5

0

4

MTD 710-1260A

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 728-04068

Lock Nut, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

7

MTD 732-04508

Compression Spring, 1.71 x 3.25 x .23

$7.99

$

Usually ships in 3-6 days

0

8

MTD 938-0296

Soulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

9

MTD 720-0170

Knob, 5/16-18

$11.99

$

In Stock, only 2 left!

0

10

MTD 938-0155

Shoulder Bolt, 5/16-18 x .435 x .160

$6.99

$

Usually ships in 3-6 days

0

11

MTD 757-05023A

Seat

$353.99

$

Usually ships in 3-6 days

0

12

MTD 725-05058

Seat Switch
(Superseded to 725P05058)

$48.99

$

Usually ships in 3-6 days

0

13

MTD 710-04261

Hex Washer Screw, #12-16 x .50

$6.49

$

In Stock, only 3 left!

0

14

MTD 736-0607

Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0
