247.204240 (17ASDALD099) - Craftsman Z8600 Zero-Turn Mower (2015) Fuel Tank Parts Diagram
Z8600 Zero-Turn Mower

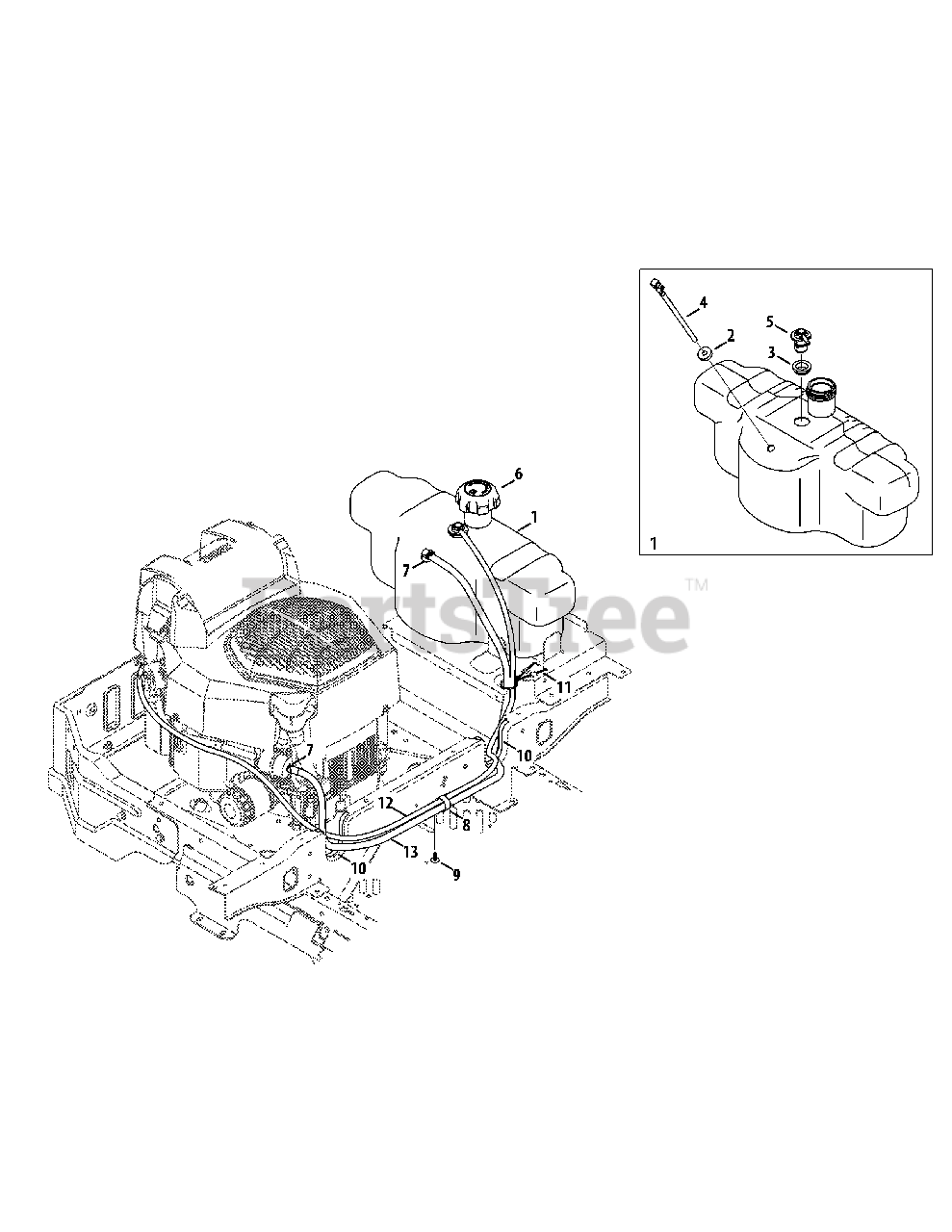

Fuel Tank Parts Diagram
$
$
Not available
MTD 935-0149
Fuel Tank Bushing
$2.99
$
In Stock, Qty 20+
MTD 735-04081
Rubber Grommet
$4.99
$
In Stock, Qty 20+
MTD 751-10442
Fuel Pickup Fitting
$32.99
$
In Stock, Qty 20+
MTD 751-12118
Rollover Valve
$35.99
$
In Stock, only 2 left!
$38.99
$
In Stock, only 2 left!
MTD 726-0205
Hose Clamp, .490 Dia.
$3.99
$
In Stock, Qty 18
MTD 726-04119
Hose Clamp, 1.0
$3.49
$
Usually ships in 3-6 days
MTD 726-3046
Ratchet Clip, .250
$3.99
$
In Stock, Qty 16
MTD 731-0511
Trim Strip
$3.99
$
Usually ships in 3-6 days
MTD 747-06306
Tank Support Rod
$5.49
$
Usually ships in 3-6 days
MTD 751-10349-45
Fuel Hose, Low Permeation, 1/4
$41.99
$
Usually ships in 3-6 days
MTD 751-12089-70
Vent Hose
$20.99
$
Usually ships in 3-6 days
