247.204240 (17ASDALD099) - Craftsman Z8600 Zero-Turn Mower (2015) Front Axle Parts Diagram

Z8600 Zero-Turn Mower

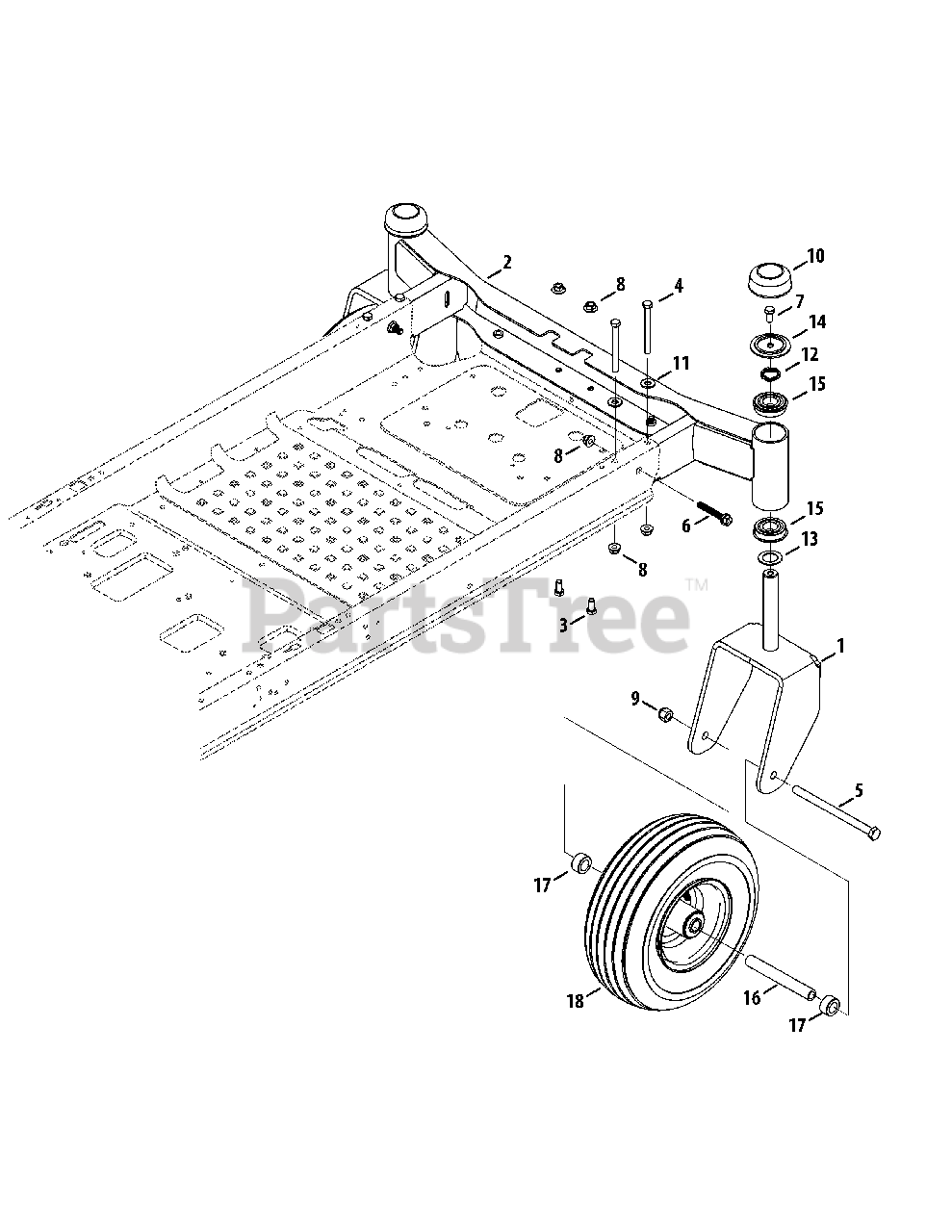

Front Axle Parts Diagram

  • Title
1

MTD 603-05080-0691

Caster Wheel Bracket
(Superseded to 603-05080A-0691)

$135.99

$

Usually ships in 3-6 days

0

2

MTD 603-05134-0691

Front Axle

$379.99

$

Usually ships in 3-6 days

0

3

MTD 710-0216

Hex Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

4

MTD 710-04576

Hex Cap Screw, 3/8-16 x 3.75

$4.99

$

Usually ships in 3-6 days

0

5

MTD 710-04652

Hex Cap Screw, 1/2-20 x 7.25
(Superseded to 710-11661)

$6.49

$

Usually ships in 3-6 days

0

6

MTD 710-06093

Hex Flange Screw, 3/8-16 x 2.00

$4.99

$

Usually ships in 3-6 days

0

7

MTD 710-3119

Hex Cap Screw, 3/8-16 x .750

$6.99

$

In Stock, only 1 left!

0

8

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 12

0

9

MTD 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

10

$5.99

$

In Stock, Qty 5

0

11

MTD 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

12

MTD 736-05033A

Wave Washer, 1.25 x 1.00 x .300

$4.99

$

In Stock, Qty 18

0

13

MTD 736-0745

Flat Washer, 1.010 x 1.56 x .060

$12.99

$

Usually ships in 3-6 days

0

14

MTD 738-05091

Shoulder Spacer, 2.50 x .200

$8.49

$

In Stock, only 2 left!

0

15

MTD 941-05022A

Ball Bearing

$20.99

$

In Stock, only 1 left!

0

16

MTD 750-04775A

Spacer, .51 x .75 x 5.825

$28.99

$

In Stock, Qty 20+

0

17

MTD 750-05572

Spacer, .76 x 1.23 x .63

$6.99

$

In Stock, only 1 left!

0

18

MTD 634-04629

Wheel Assembly, 13 x 5 x 6

Variations

MTD 634-04629-0499

Caster Wheel Assembly - CUB BEIGE (0499)

$177.99

$

Usually ships in 3-6 days

0

MTD 634-04629-0637

WHEEL ASM-CASTER - POWDER BLACK (0637)

$177.99

$

Usually ships in 3-6 days

0

MTD 634-04629-0662

WHEEL ASM-CASTER - OYSTER GRAY (0662)

$177.99

$

Usually ships in 3-6 days

0

MTD 634-04629-4028

Caster Wheel Assembly - SEARS YELLOW (4028)

$177.99

$

Usually ships in 3-6 days

0

$144.99

$

Usually ships in 3-6 days

0
