247.204240 (17ASDALD099) - Craftsman Z8600 Zero-Turn Mower (2015) Fenders & Floorboard Parts Diagram

Z8600 Zero-Turn Mower

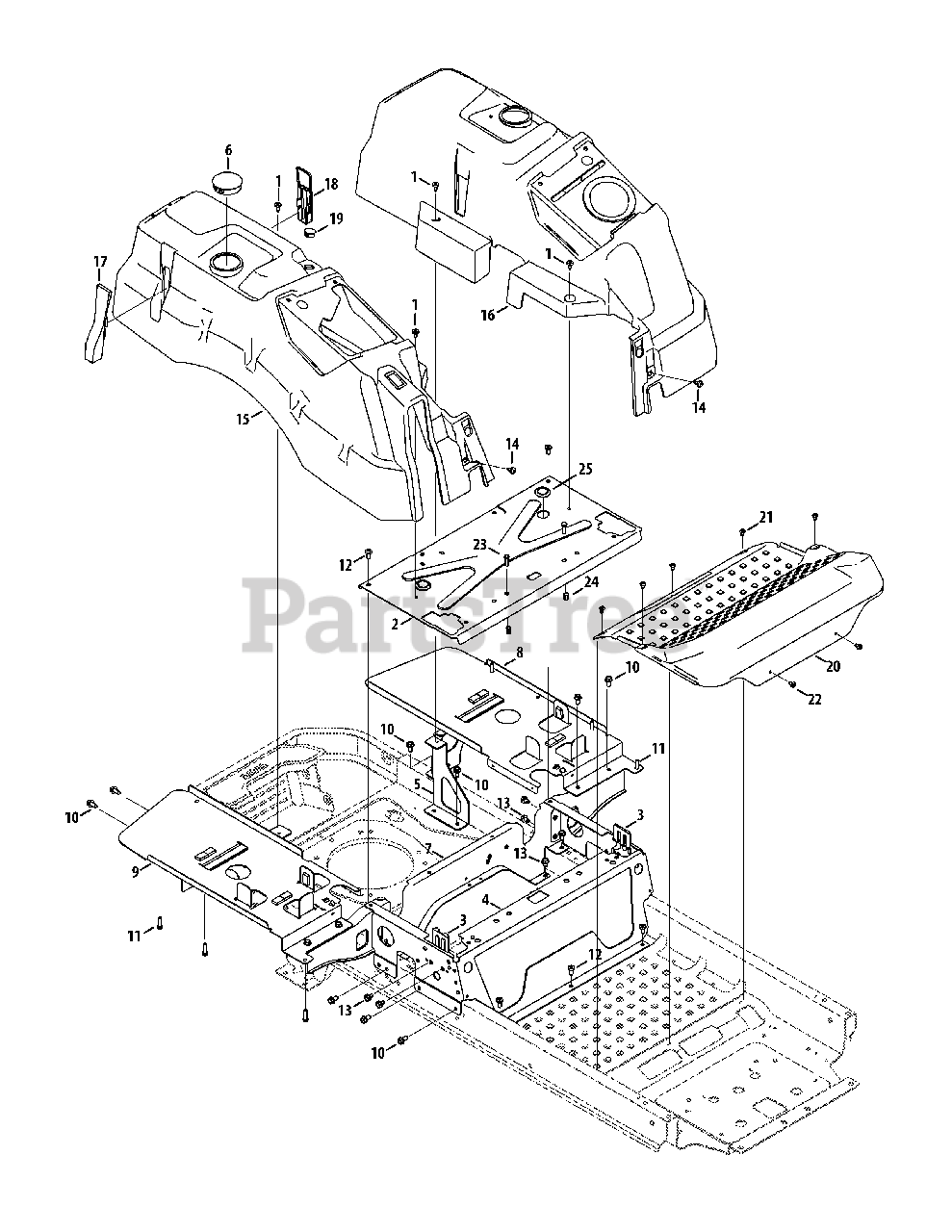

Fenders & Floorboard Parts Diagram

  • Title
1

MTD 738-05090

Shoulder Screw, .368 x .115, M6-1

$3.49

$

In Stock, Qty 20+

0

2

MTD 703-09045D-0691

Seatbox Plate
(Superseded to 703-09045G-0691)

$45.99

$

Usually ships in 3-6 days

0

3

MTD 703-09211A-0637

Lapbar Brace Bracket

$7.99

$

Usually ships in 3-6 days

0

4

MTD 703-09320-0691

Seat Frame
(Superseded to 703-09320F-0691)

$76.99

$

Usually ships in 3-6 days

0

5

MTD 703-09326A-0691

Rear Support Bracket, LH

$32.99

$

Usually ships in 3-6 days

0

5

MTD 703-09330A-0691

Rear Support Bracket, RH

$32.99

$

Usually ships in 3-6 days

0

6

MTD 731-10097

Plug, 2.50 Dia.

$8.49

$

Usually ships in 3-6 days

0

7

MTD 703-09332A-0691

Rear Seatbox Brace
(Superseded to 703-11179)

$47.99

$

Usually ships in 3-6 days

0

8

MTD 703-09404A-0691

Tank Support Plate, LH

$71.99

$

Usually ships in 3-6 days

0

9

MTD 703-09775-0691

Tank Support Plate, RH

$71.99

$

Usually ships in 3-6 days

0

10

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

In Stock, only 3 left!

0

12

MTD 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.49

$

In Stock, only 3 left!

0

13

MTD 710-0607

Hex Washer Screw, 5/16-18 x .50

$6.99

$

In Stock, Qty 11

0

14

MTD 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0

15

MTD 931-09529

RH Console

$116.99

$

Usually ships in 3-6 days

0

16

MTD 931-09543

LH Console

$116.99

$

Usually ships in 3-6 days

0

17

MTD 731-10094A

Outer Pod Plug

$7.99

$

Usually ships in 3-6 days

0

18

MTD 731-10095A

Inner Pod Plug

$6.99

$

Usually ships in 3-6 days

0

19

MTD 731-10096

Plug, .875 Dia.

$2.99

$

Usually ships in 3-6 days

0

20

MTD 703-08902A-0691

Floor Board

$167.99

$

Usually ships in 3-6 days

0

21

MTD 710-05070A

Screw, 1/4-20 x .50, Black

$6.99

$

In Stock, Qty 7

0

22

MTD 710-06096

Screw, 5/16-18, .750

$6.99

$

Usually ships in 3-6 days

0

23

MTD 710-0643

Hex Cap Screw, 5/16-18 x 1.00

$6.99

$

In Stock, Qty 5

0

24

MTD 728-04068

Nut, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

25

MTD 726-3045A

Button Plug

$4.99

$

In Stock, Qty 6

0
