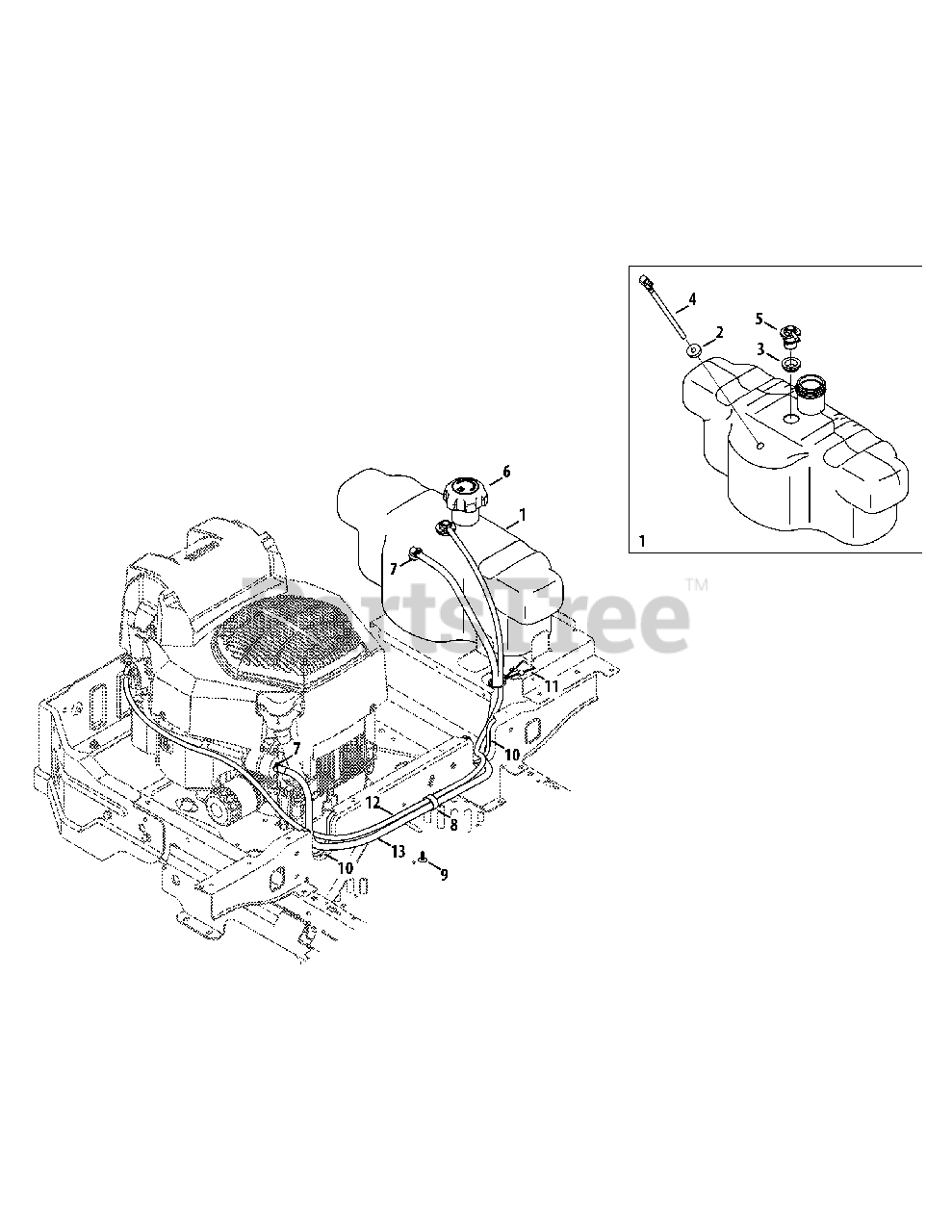

247.204221 (17ASDALC099) - Craftsman Z8400 Zero-Turn Mower (2015) Fuel Tank Parts Diagram

Z8400 Zero-Turn Mower

Fuel Tank Parts Diagram

  • Title
1

MTD 951-05137

Fuel Tank
(Superseded to 951-05137A)

$

$

Not available

2

MTD 935-0149

Fuel Tank Bushing

$2.99

$

In Stock, Qty 20+

0

3

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

4

MTD 751-10442

Fuel Pickup Fitting

$32.99

$

In Stock, only 1 left!

0

5

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 1 left!

0

6

MTD 951-12179B

Fuel Cap
(Superseded to 951-12179C)

$38.99

$

In Stock, only 3 left!

0

7

MTD 726-0205

Hose Clamp, .490 Dia.

$3.99

$

In Stock, Qty 18

0

8

MTD 726-04119

Hose Clamp, 1.0

$3.49

$

Usually ships in 3-6 days

0

9

MTD 726-3046

Ratchet Clip, .250

$3.99

$

In Stock, Qty 16

0

10

MTD 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

11

MTD 747-06306

Tank Support Rod

$5.49

$

Usually ships in 3-6 days

0

12

MTD 751-10349-45

Fuel Hose, Low Permeation, 1/4

$41.99

$

Usually ships in 3-6 days

0

13

MTD 751-12089-70

Vent Hose

$20.99

$

Usually ships in 3-6 days

0
