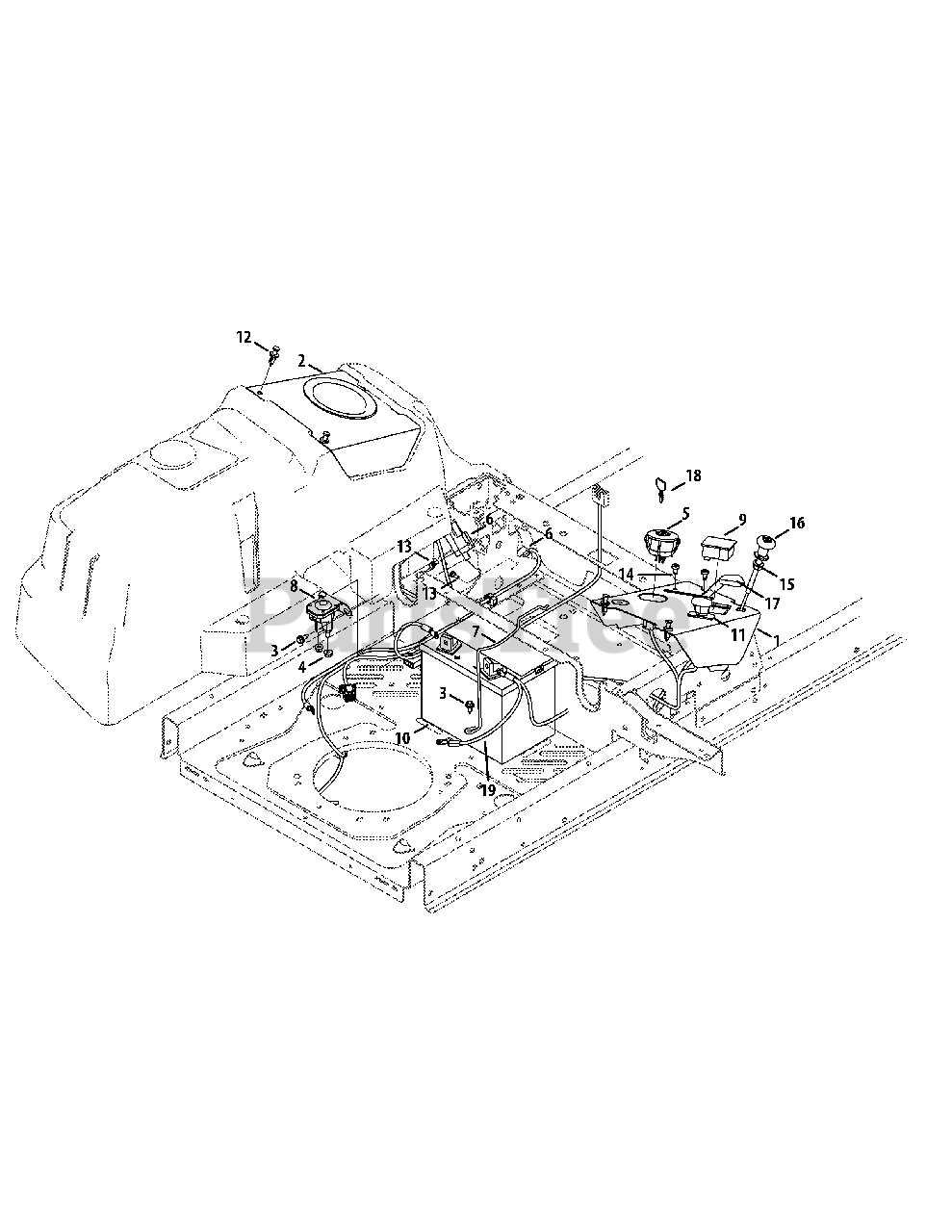

247.204221 (17ASDALC099) - Craftsman Z8400 Zero-Turn Mower (2015) Electrical Parts Diagram

Z8400 Zero-Turn Mower

Electrical Parts Diagram

  • Title

1

MTD 703-09378A-0691

Console Cover, RH

$53.99

$

Usually ships in 3-6 days

0

2

MTD 703-09338A-0691

Console Cover, LH

$43.99

$

Usually ships in 3-6 days

0

3

MTD 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

MTD 725-06102A

Key Switch
(Superseded to 725-13425)

$96.99

$

In Stock, Qty 20+

0

6

MTD 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 10

0

7

MTD 747-05685-0637

Battery Rod

$18.99

$

Usually ships in 3-6 days

0

8

MTD 725-06153

Solenoid
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 13

0

9

MTD 925-06170

Hour Meter/Service Minder
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

10

MTD 925-1707D

Battery

$

$

Not available

11

MTD 925-3233

Electric PTO Switch
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 6

0

12

MTD 728-0199

Plastic Rivet

$4.49

$

In Stock, Qty 20+

0

13

MTD 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

14

MTD 710-05070A

Screw, 1/4-20 x .50

$6.99

$

In Stock, Qty 7

0

15

MTD 912-3005

Flange Lock Nut, 3/8-16
(Superseded to 712-3005)

$6.99

$

Usually ships in 3-6 days

0

16

MTD 946-04214

Choke Cable

$47.99

$

In Stock, only 1 left!

0

17

MTD 946-05133

Throttle Cable

$47.99

$

In Stock, Qty 5

0

18

MTD 625-04124

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

19

MTD 925-06284

Harness Assembly
(Superseded to 925-06284B)

$204.99

$

Usually ships in 3-6 days

0
