247.204221 (17ASDALC099) - Craftsman Z8400 Zero-Turn Mower (2015) Deck Lift Parts Diagram

Z8400 Zero-Turn Mower

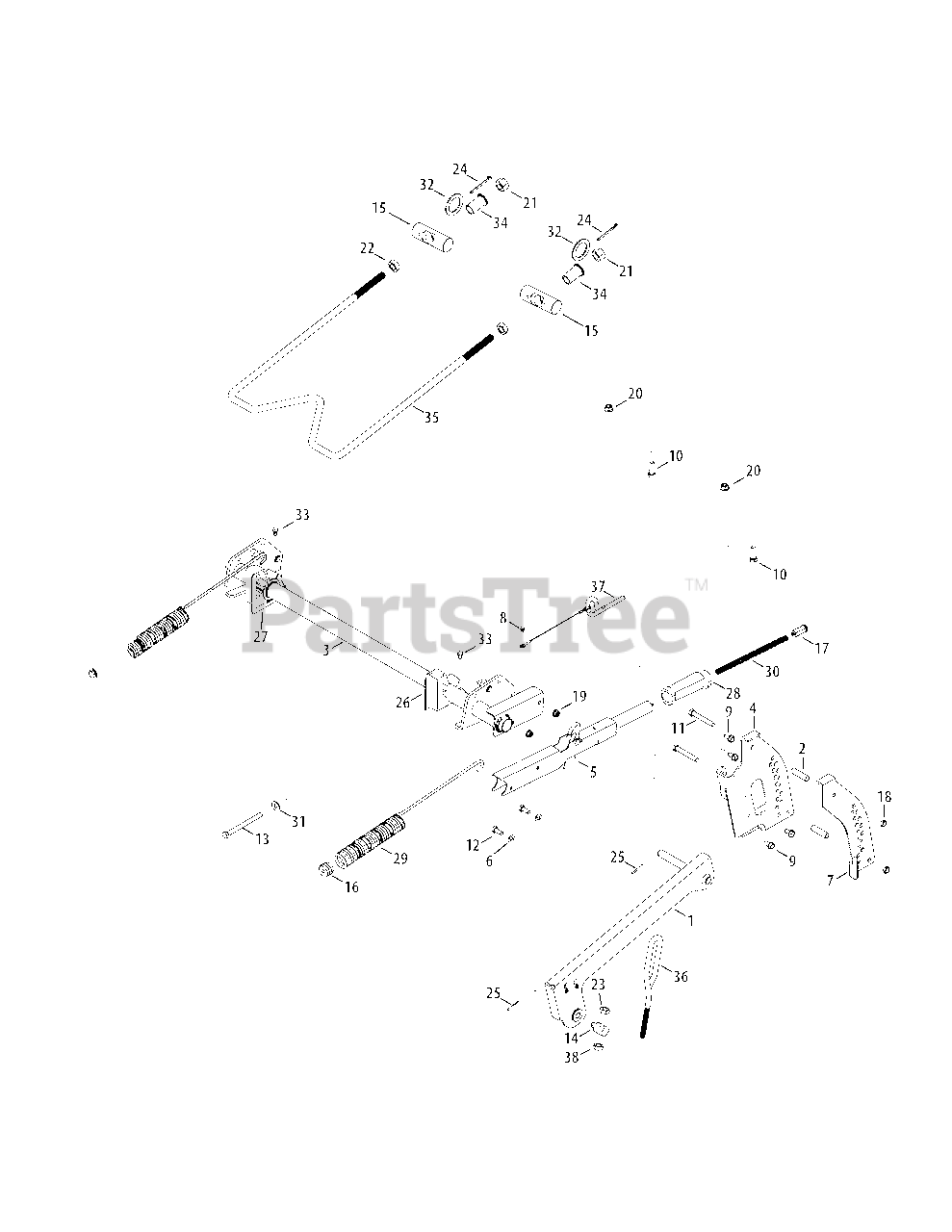

Deck Lift Parts Diagram

  • Title

1

MTD 603-05086A-0691

Lift Arm, RH

$55.99

$

Usually ships in 3-6 days

0

1

MTD 603-05087A-0691

Lift Arm, LH

$55.99

$

Usually ships in 3-6 days

0

2

MTD 750-06031

Spacer, .386 x .63 x 1.75

$5.49

$

Usually ships in 3-6 days

0

3

MTD 603-05088

Deck Lift Shift Assembly

$116.99

$

Usually ships in 3-6 days

0

4

MTD 603-05208-0691

Index Bracket Assembly
(Superseded to 603-05208A-0691)

$88.99

$

Usually ships in 3-6 days

0

5

MTD 903-05143A

Latch Handle Assembly

$89.99

$

In Stock, only 2 left!

0

6

MTD 932-0264

Flat Washer .330 ID x .630 OD

$4.99

$

In Stock, Qty 20+

0

7

MTD 703-09936-0691

Outer Index Bracket

$44.99

$

Usually ships in 3-6 days

0

8

MTD 910-0224

Screw, #10-16, .50

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0859

Hex Head Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 16

0

12

MTD 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-3279

Hex Screw, 3/8-16 x 4.25

$8.49

$

Usually ships in 3-6 days

0

14

MTD 711-06284

Ferrule, .496 x .528

$11.99

$

Usually ships in 3-6 days

0

15

MTD 711-06216A

Pivot Pin, 1.25

$31.99

$

Usually ships in 3-6 days

0

16

MTD 711-0635

Spring Insert

$44.99

$

In Stock, only 1 left!

0

17

MTD 711-0642A

Handle Button

$7.99

$

In Stock, Qty 12

0

18

MTD 712-0266A

Jam Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 11

0

19

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 12

0

21

MTD 712-05045A

Nylock Nut, 5/8-11

$3.99

$

In Stock, only 2 left!

0

22

MTD 912-3015

Jam Nut, 5/8-11
(Superseded to 712-3015)

$4.99

$

In Stock, only 2 left!

0

23

MTD 912-3048

Nut, Jam, 1/2-13
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 18

0

24

MTD 714-0211

Cotter Pin, 3/16 x 2.0

$4.49

$

In Stock, Qty 14

0

25

MTD 914-0470

Cotter Pin 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

26

MTD 731-09683

Deck Lift Bracket

$12.99

$

Usually ships in 3-6 days

0

27

MTD 731-09707

Deck Lift Bracket, LH

$12.99

$

Usually ships in 3-6 days

0

28

MTD 731-3158

Grip, Deck Lift Handle

$17.99

$

Usually ships in 3-6 days

0

29

MTD 732-05096

Extension Spring, 1.485 OD x 17.58

$34.99

$

Usually ships in 3-6 days

0

30

MTD 732-3097

Spring, Compression, .4 x 8.52

$14.99

$

In Stock, only 4 left!

0

31

MTD 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

32

MTD 736-05070

Flat Washer, 1.875 x 1.38 x .097

$3.99

$

Usually ships in 3-6 days

0

33

MTD 738-04278

Shoulder Screw, .500 x 1/4-20

$6.99

$

In Stock, Qty 5

0

34

MTD 741-05075A

Flange Bearing, .875 x .702 x 1.10

$5.49

$

In Stock, only 2 left!

0

35

MTD 747-05725A

Deck hanger Rod, 5/8

$56.99

$

In Stock, only 1 left!

0

36

MTD 747-06259A

Lift Adjust Link

$19.99

$

Usually ships in 3-6 days

0

37

MTD 747-06355

Lock Rod, .375

$32.99

$

Usually ships in 3-6 days

0

38

MTD 712-05046

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0
