247.204201 (17ASDALB099) - Craftsman Z8200 Zero-Turn Mower (2016) Seat Adjustment Parts Diagram
Z8200 Zero-Turn Mower

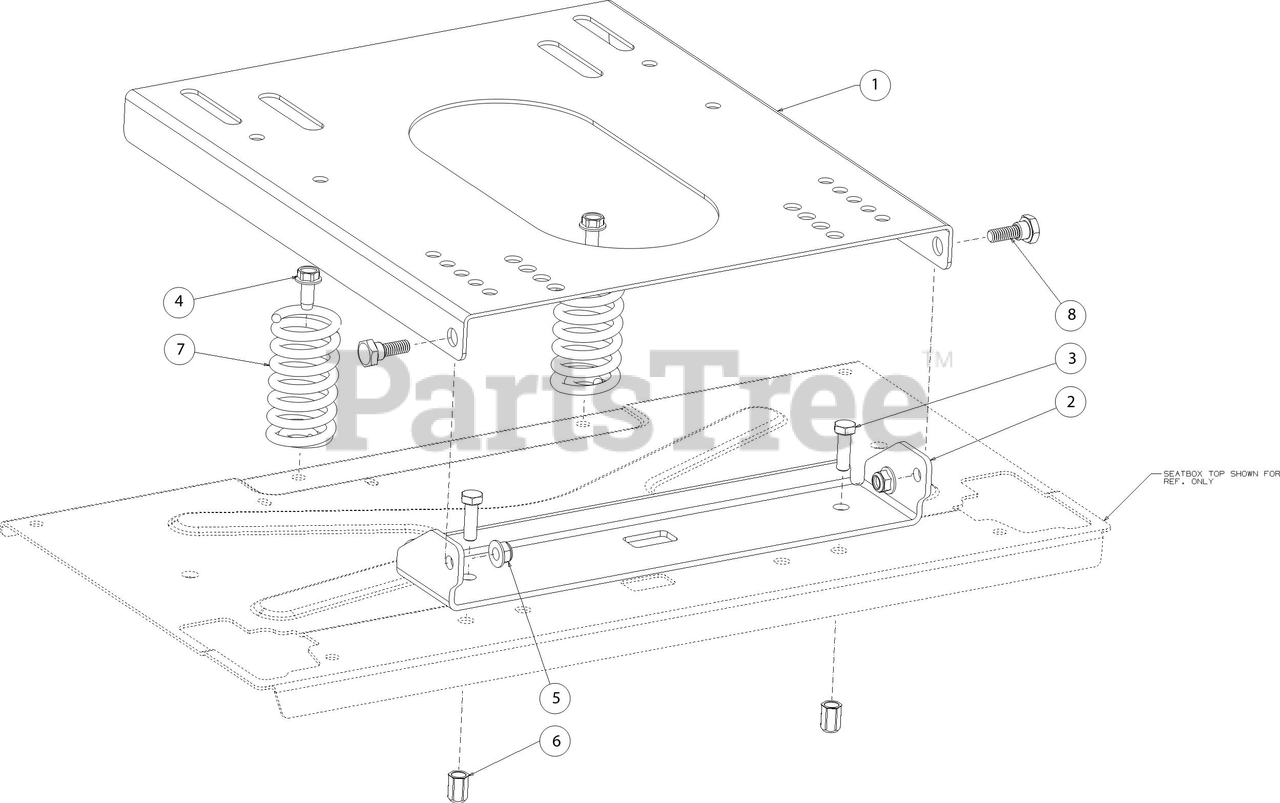

Seat Adjustment Parts Diagram
MTD 703-09603A-0691
SEAT PLATE DUAL KNOB BASE
$84.99
$
Usually ships in 3-6 days
MTD 703-09633-0691
SEAT PIVOT BRACKET
$29.99
$
Usually ships in 3-6 days
MTD 710-0643
SCREW 5/16-18 X 1.00 GR5
$6.99
$
In Stock, Qty 5
MTD 710-1260A
SCREW 5/16-18 X .750
$3.99
$
In Stock, Qty 20+
MTD 712-04063
FLANGE LOCK NUT 5/16-18
$3.99
$
In Stock, Qty 20+
MTD 728-04068
NUT RIVET 5/16-18
$4.49
$
Usually ships in 3-6 days
MTD 732-04508
COMPRESSION SPRING
$7.99
$
Usually ships in 3-6 days
$4.49
$
In Stock, Qty 20+
