247.204150 (17ARCACK099) - Craftsman Z6600 Zero-Turn Mower (2014) Lapbars Parts Diagram

Z6600 Zero-Turn Mower

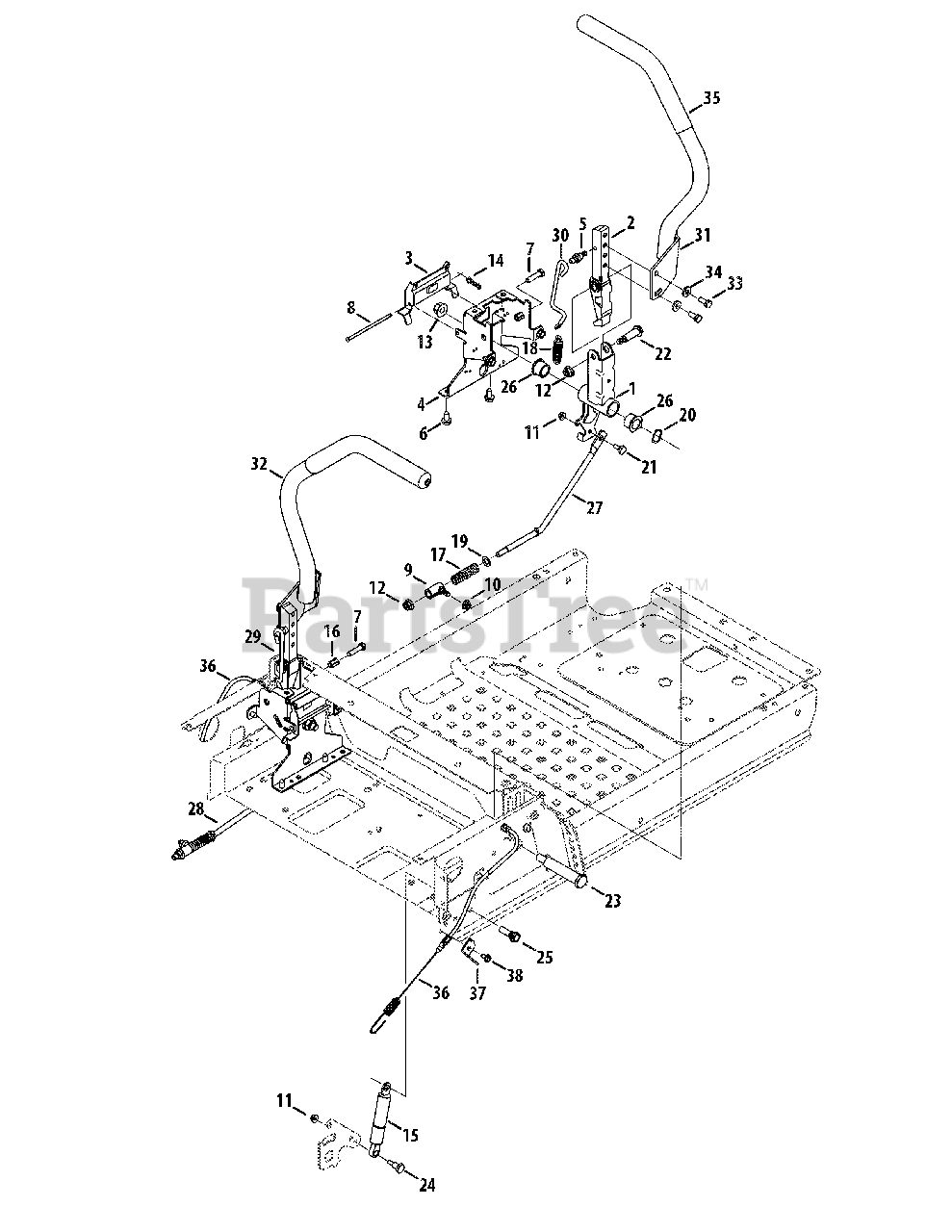

Lapbars Parts Diagram

  • Title

1

MTD 603-05033A-0637

Lap Bar Pivot Hub Assembly

$42.99

$

Usually ships in 3-6 days

0

2

MTD 941-00022

Lower Arm Asembly
(Superseded to 941-00022A)

$83.99

$

In Stock, only 3 left!

0

3

MTD 703-09069-0637

Brake Cable Actuator Lever

$6.49

$

Usually ships in 3-6 days

0

4

MTD 703-09325A-0637

Lap Bar Pivot Support Bracket
(Superseded to 703-09325C-0637)

$32.99

$

Usually ships in 3-6 days

0

5

MTD 710-04471

Shoulder Screw, 5/16-18 x .48

$27.99

$

Usually ships in 3-6 days

0

6

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

MTD 711-06068

Pin, .188 x 4.1

$6.99

$

Usually ships in 3-6 days

0

9

MTD 711-06094A

Shoulder Ferrule, 3/8 x .420

$15.99

$

In Stock, only 1 left!

0

10

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

11

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

14

MTD 714-04040

Cotter Pin

$1.49

$

In Stock, Qty 20+

0

15

MTD 727-04400A

Dampener Cylinder, .87 x 7.06

$63.99

$

In Stock, only 1 left!

0

16

MTD 728-05012

Lock Nut Rivet, 5/16-18

$5.49

$

Usually ships in 3-6 days

0

17

MTD 732-05075

Compression Spring

$4.49

$

In Stock, only 2 left!

0

18

MTD 732-1162

Extension Spring, .560 x 2.31250 x .105

$8.99

$

In Stock, only 3 left!

0

19

MTD 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

20

MTD 736-0621

Wave Washer, .785 x 1.00 x .012

$17.99

$

In Stock, Qty 11

0

21

MTD 938-0255

Shoulder Screw, .375 x .181

$5.49

$

In Stock, Qty 8

0

22

MTD 738-05025

Shoulder Screw, .498 x 1.290

$7.49

$

Usually ships in 3-6 days

0

23

MTD 738-05033

Shoulder Bolt, 1/2-13 x .75 x 3.25

$16.99

$

In Stock, only 3 left!

0

24

MTD 738-05034

Shoulder Screw, .395 x .56

$7.49

$

In Stock, only 1 left!

0

25

MTD 738-05074

Shoulder Screw, .395 x .83

$8.99

$

In Stock, only 1 left!

0

26

MTD 741-04050

Flange Bearing, .75 x 1.00 x .73

$4.49

$

Usually ships in 3-6 days

0

27

MTD 747-06149A

RH Hydro Control Rod

$15.99

$

Usually ships in 3-6 days

0

28

MTD 747-06160A

LH Hydro Control Rod

$15.99

$

Usually ships in 3-6 days

0

29

MTD 747-06294

LH Detent Rod

$11.99

$

Usually ships in 3-6 days

0

30

MTD 747-06295

RH Detent Rod

$11.99

$

In Stock, only 1 left!

0

31

MTD 603-05124-0637

RH Lapbar Lever Assembly
(Superseded to 603-05342A-0637)

$75.99

$

In Stock, only 2 left!

0

32

MTD 603-05126-0637

LH Lapbar Lever Assembly
(Superseded to 603-05343A-0637)

$75.99

$

In Stock, only 1 left!

0

33

MTD 710-1880

Hex Screw, 5/16-18 x .75

$4.99

$

In Stock, Qty 11

0

34

MTD 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

35

MTD 720-05063

Grip

$28.99

$

Usually ships in 3-6 days

0

36

MTD 946-05008

Parking Brake Cable

$35.99

$

In Stock, Qty 7

0

37

MTD 703-09220-0637

Parking Brake Cable Bracket

$4.49

$

Usually ships in 3-6 days

0

38

MTD 710-0599

Hex Washer Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0
