247.204150 (17ARCACK099) - Craftsman Z6600 Zero-Turn Mower (2014) Fenders Parts Diagram

Z6600 Zero-Turn Mower

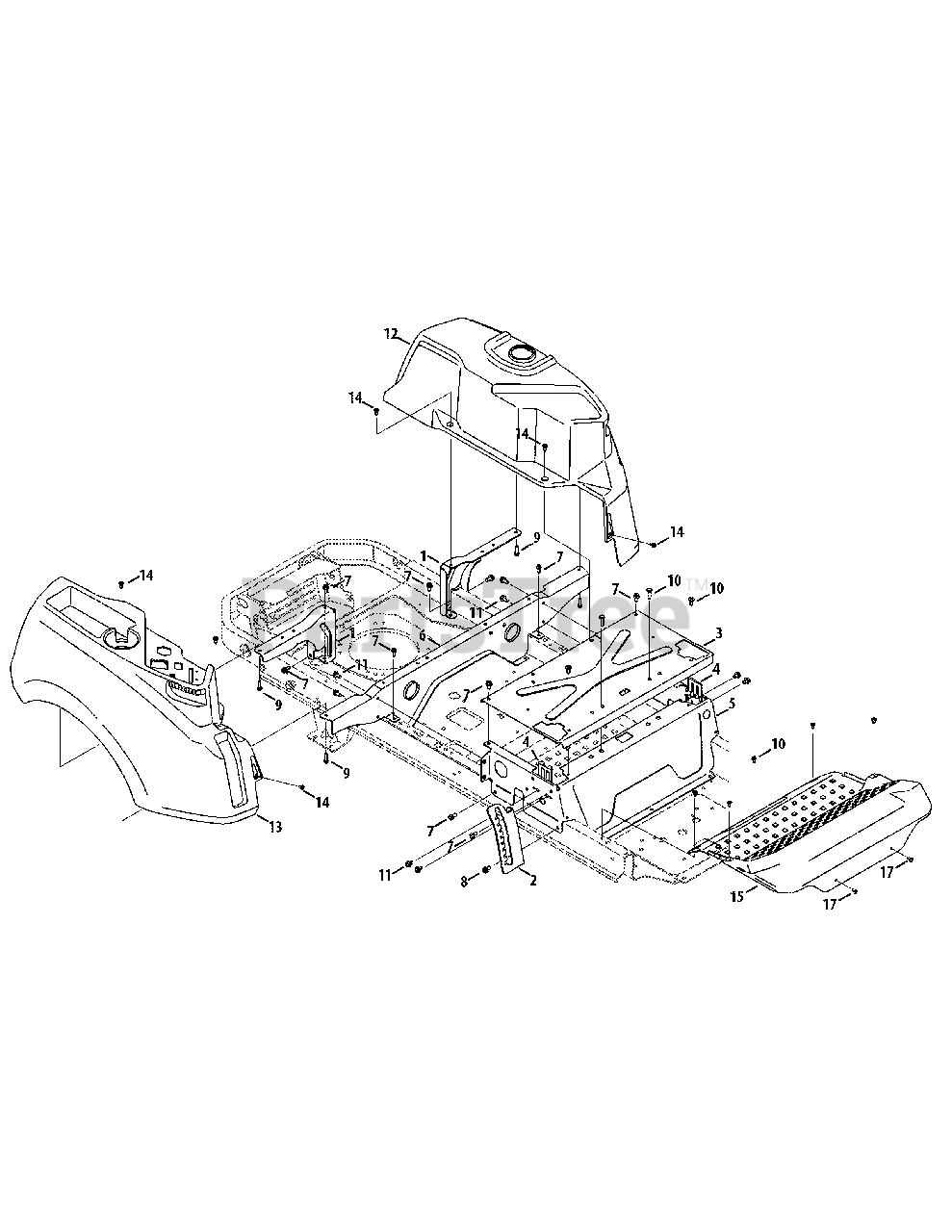

Fenders Parts Diagram

  • Title

1

MTD 703-08720A-4044

Rear Tank Bracket
(Superseded to 703-08720B-4044)

$30.99

$

Usually ships in 3-6 days

0

2

MTD 703-08762C

Height Index Bracket

$16.99

$

In Stock, only 1 left!

0

3

MTD 703-09211A-0637

Lap Bar Bracket Brace

$7.99

$

Usually ships in 3-6 days

0

4

MTD 703-09332A-4044

Rear Seatbox Brace
(Superseded to 703-11179)

$47.99

$

Usually ships in 3-6 days

0

5

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-04683A

Hex Washer Screw, 3/8-16 x 1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

8

MTD 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

Usually ships in 3-6 days

0

9

MTD 710-05424

Screw, 5/16-18 x .750

$3.49

$

In Stock, only 3 left!

0

10

MTD 710-0607

Hex Washer Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

11

MTD 710-0607

Hex Washer Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

12

MTD 931-08687A

LH Console
(Superseded to 931-08687B)

$116.99

$

In Stock, only 1 left!

0

13

MTD 931-08771A

RH Console
(Superseded to 931-13513)

$99.99

$

In Stock, Qty 5

0

14

MTD 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0

15

MTD 703-08902A-4044

Floor Board

$167.99

$

Usually ships in 3-6 days

0

16

MTD 710-05070

Screw, 1/4-20 x .5
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

17

MTD 710-06096

Screw, 5/16-18 x .750

$6.99

$

Usually ships in 3-6 days

0
