247.204122 (17AKCACS299) - Craftsman Z6000 Zero-Turn Mower (2015) Fuel Tank Parts Diagram

Z6000 Zero-Turn Mower

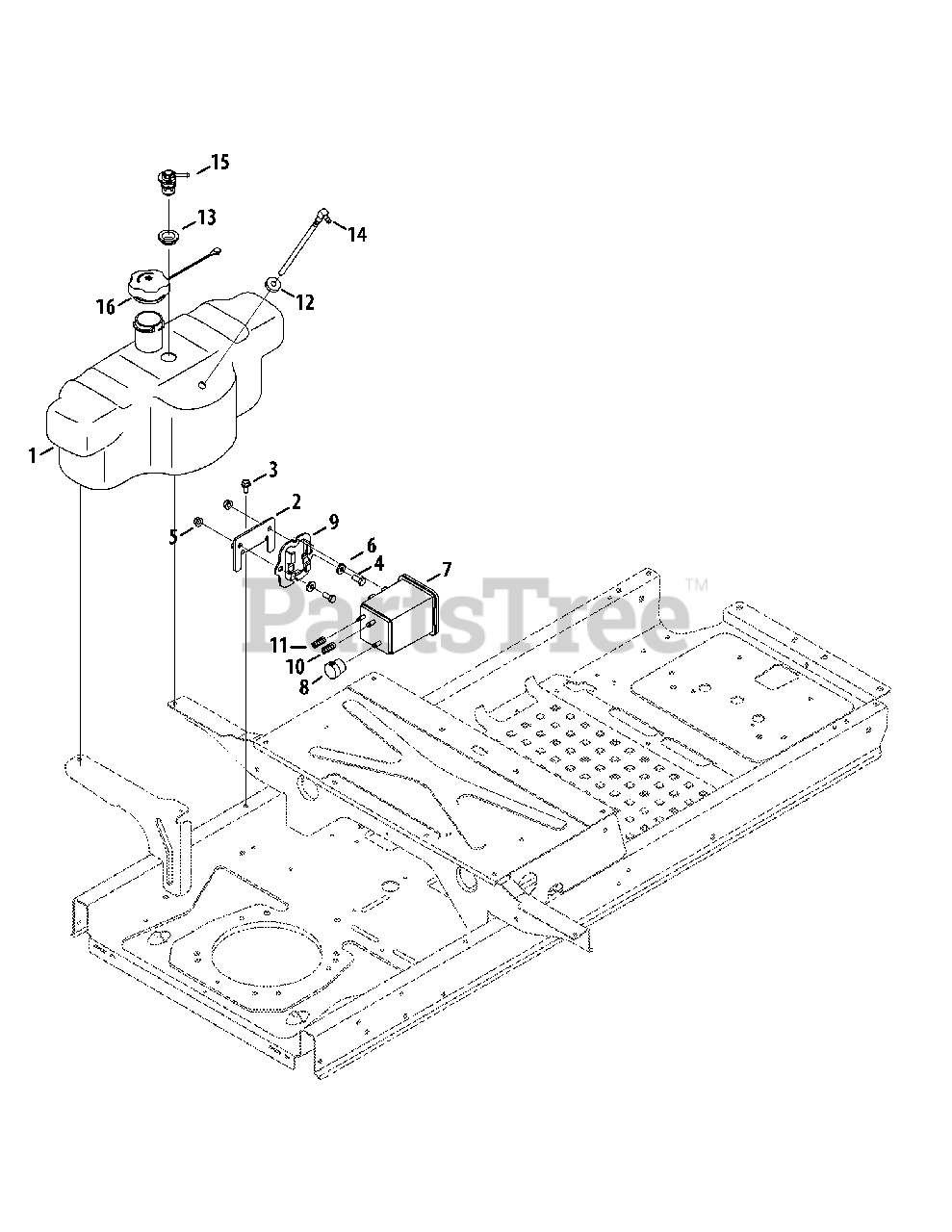

Fuel Tank Parts Diagram

  • Title

1

MTD 951-05137

Fuel Tank
(Superseded to 951-05137A)

$

$

Not available

2

MTD 703-08769-0637

Carbon Canister Bracket
(Superseded to 703-08769A-0637)

$16.99

$

Usually ships in 3-6 days

0

3

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

7

MTD 951-10589

Carbon Canister

$72.99

$

Usually ships in 3-6 days

0

8

MTD 951-10590

Cannister Filter Vent

$15.99

$

Usually ships in 3-6 days

0

9

MTD 951-10610

Cannister Adapter Bracket

$23.99

$

Usually ships in 3-6 days

0

10

MTD 751-10750-28

Low Perm Fuel Hose 7/32 Yellow

$

$

Not available

11

MTD 751-10749-30

Vent Hose, Carb

$36.99

$

Usually ships in 3-6 days

0

12

MTD 935-0149

Fuel Tank Bushing

$2.99

$

In Stock, Qty 20+

0

13

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

14

MTD 751-10442

Fuel Pickup Fitting

$32.99

$

In Stock, only 1 left!

0

15

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 1 left!

0

16

MTD 951-12426A

Fuel Cap
(Superseded to 951-12426B)

$41.99

$

Usually ships in 3-6 days

0
