247.204111 (17AKCACS099) - Craftsman Z6000 Zero-Turn Mower (2015) Fuel Tank Parts Diagram

Z6000 Zero-Turn Mower

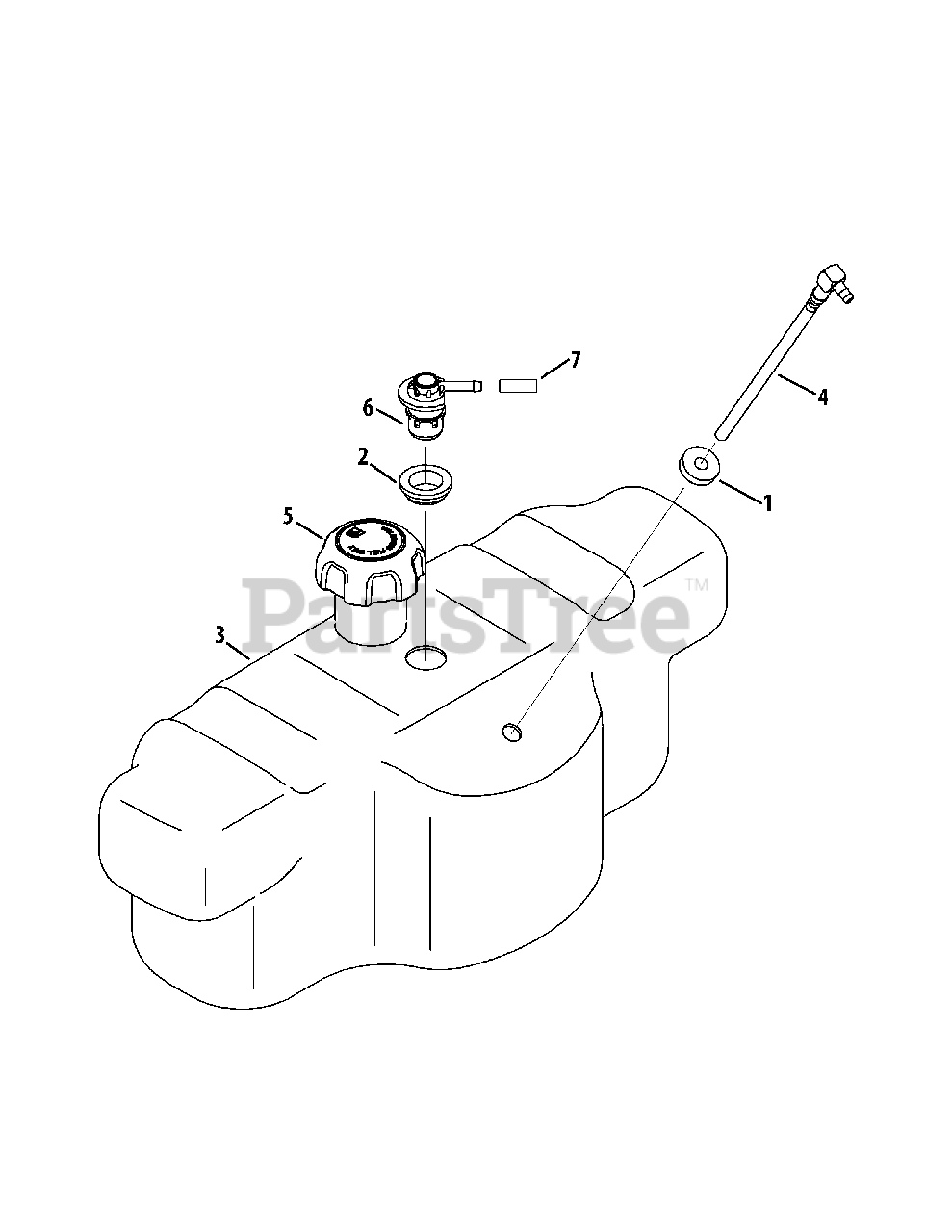

Fuel Tank Parts Diagram

  • Title
1

MTD 935-0149

Fuel Tank Bushing

$2.99

$

In Stock, Qty 20+

0

2

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

3

MTD 951-05137

Fuel Tank
(Superseded to 951-05137A)

$

$

Not available

4

MTD 751-10442

Fuel Pick-Up Fitting

$32.99

$

In Stock, Qty 20+

0

5

MTD 951-12179B

Fuel Cap
(Superseded to 951-12179C)

$38.99

$

In Stock, only 2 left!

0

6

MTD 751-12118

Fuel Rollover Valve

$35.99

$

In Stock, only 1 left!

0

7

MTD 751-12089-45

Vent Hose

$12.99

$

In Stock, only 1 left!

0
