247.204111 (17AKCACS099) - Craftsman Z6000 Zero-Turn Mower (2015) Engine Accessories Parts Diagram

Z6000 Zero-Turn Mower

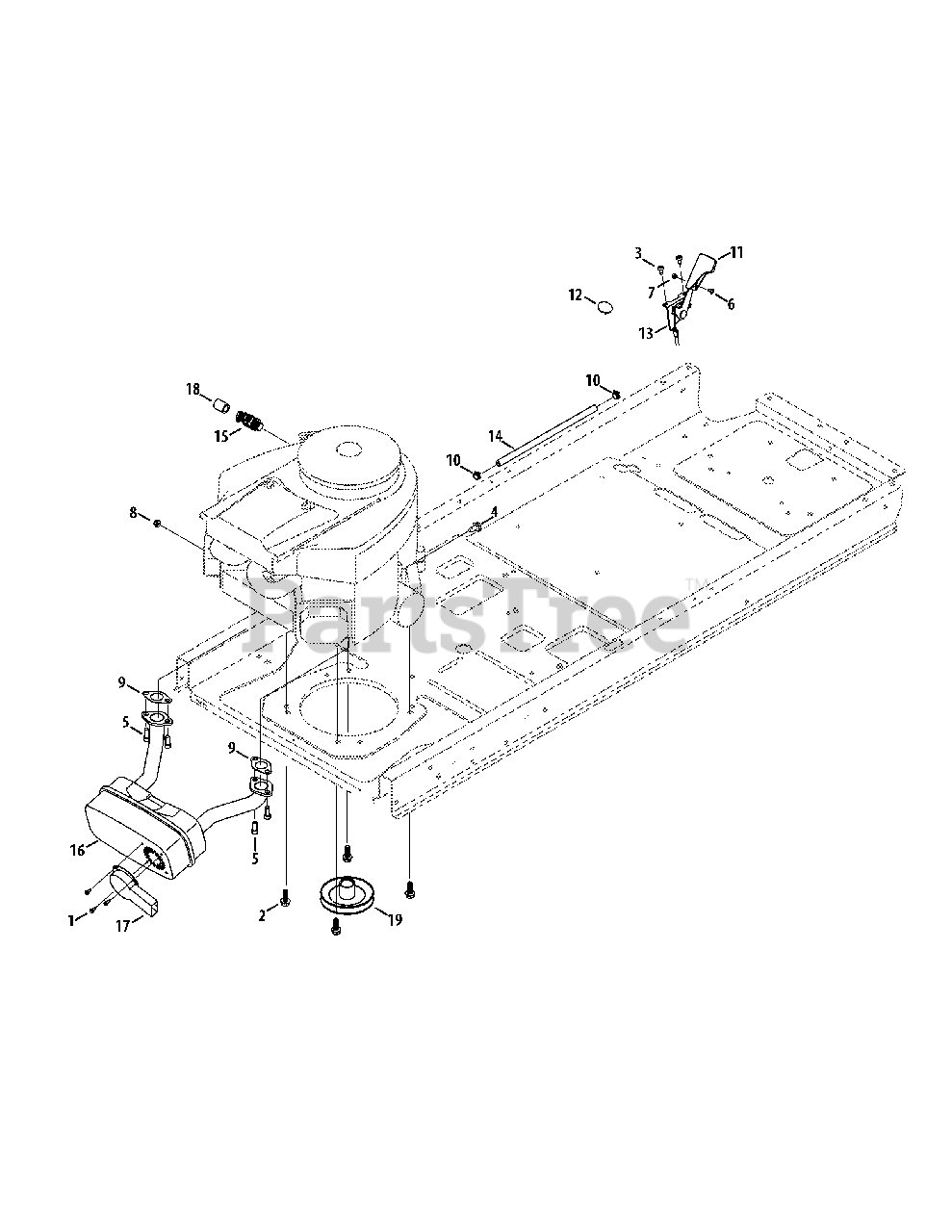

Engine Accessories Parts Diagram

  • Title

1

MTD 710-0227

Hex Washer Screw, #8-18 x .500

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-04683C

Hex Washer Screw, 3/8-16 x 1.000

$6.49

$

In Stock, only 4 left!

0

3

MTD 710-05070A

Screw, 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

4

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1314A

Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-3217

Machine Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

7

MTD 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 10

0

8

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

MTD 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

10

MTD 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 20+

0

11

MTD 731-09637

Throttle Knob

$8.49

$

In Stock, only 4 left!

0

12

MTD 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

13

MTD 946-05130

Throttle/Choke Cable

$44.99

$

Usually ships in 3-6 days

0

14

MTD 751-10349-28

Low-Permeation Fuel Hose

$41.99

$

In Stock, only 1 left!

0

15

MTD 951-10517A

Oil Drain

$24.99

$

In Stock, only 1 left!

0

16

MTD 751-10542A

Muffler
(Superseded to 951-10542E)

$142.99

$

In Stock, only 2 left!

0

17

MTD 751-11053A

Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

18

MTD 751-3141-14

Oil Drain Extension Hose

$11.99

$

In Stock, Qty 7

0

19

MTD 756-04494

Engine Pulley
(Superseded to 756-04494C)

$35.99

$

In Stock, Qty 16

0
