247.204100 (17ARCBDQ099) - Craftsman ZS6700 Zero-Turn Mower (2016) Electrical Parts Diagram

ZS6700 Zero-Turn Mower

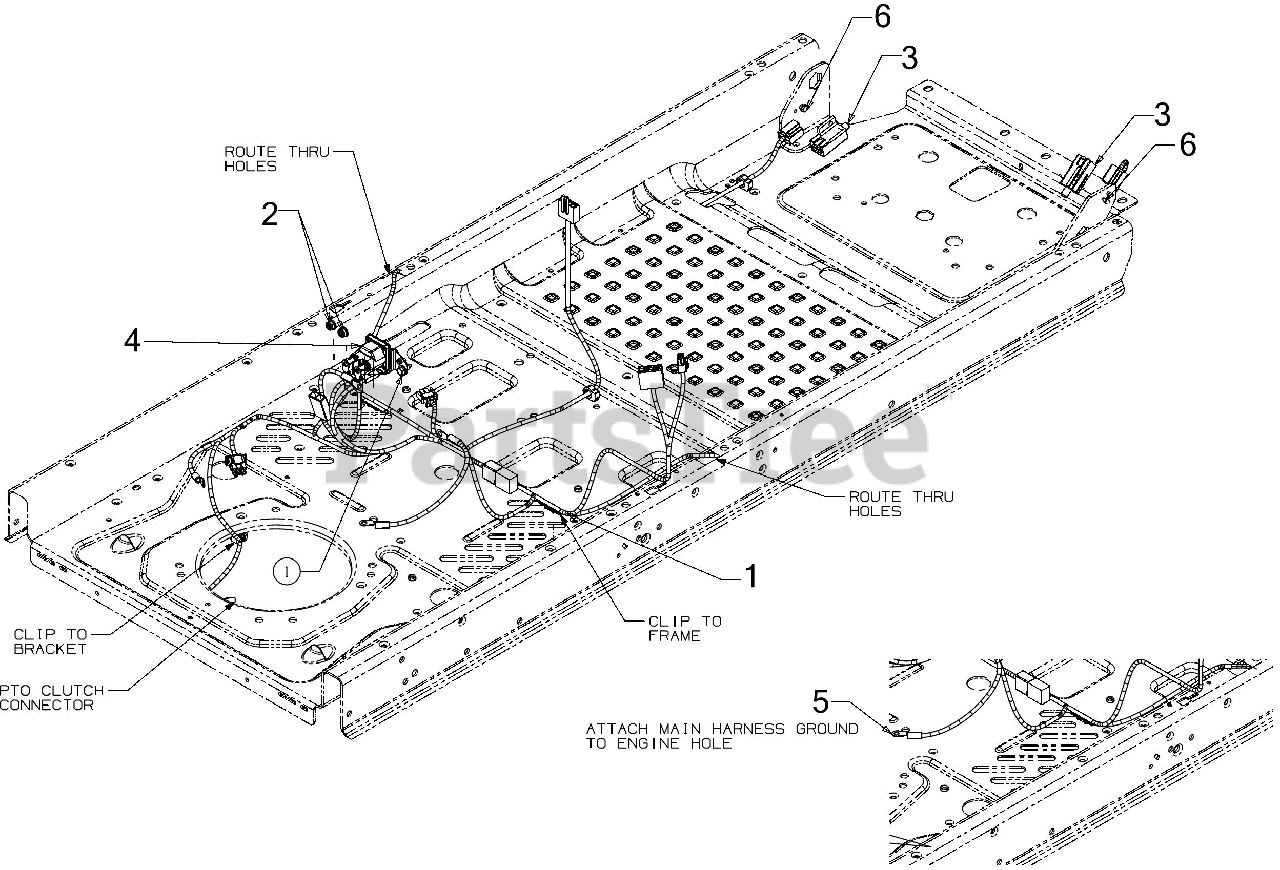

Electrical Parts Diagram

  • Title
1

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

2

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

3

MTD 725-04363

INTERLOCK SWITCH (NO/NC)

$15.99

$

In Stock, Qty 8

0

4

MTD 725-06153

SOLENOID-12V 100A
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 13

0

5

MTD 925-06725A

MAIN HARNESS (E-PTO/PBS/RMC)

$181.99

$

In Stock, only 1 left!

0

6

MTD 738-04237A

SHOULDER SCREW

$6.49

$

In Stock, Qty 7

0
