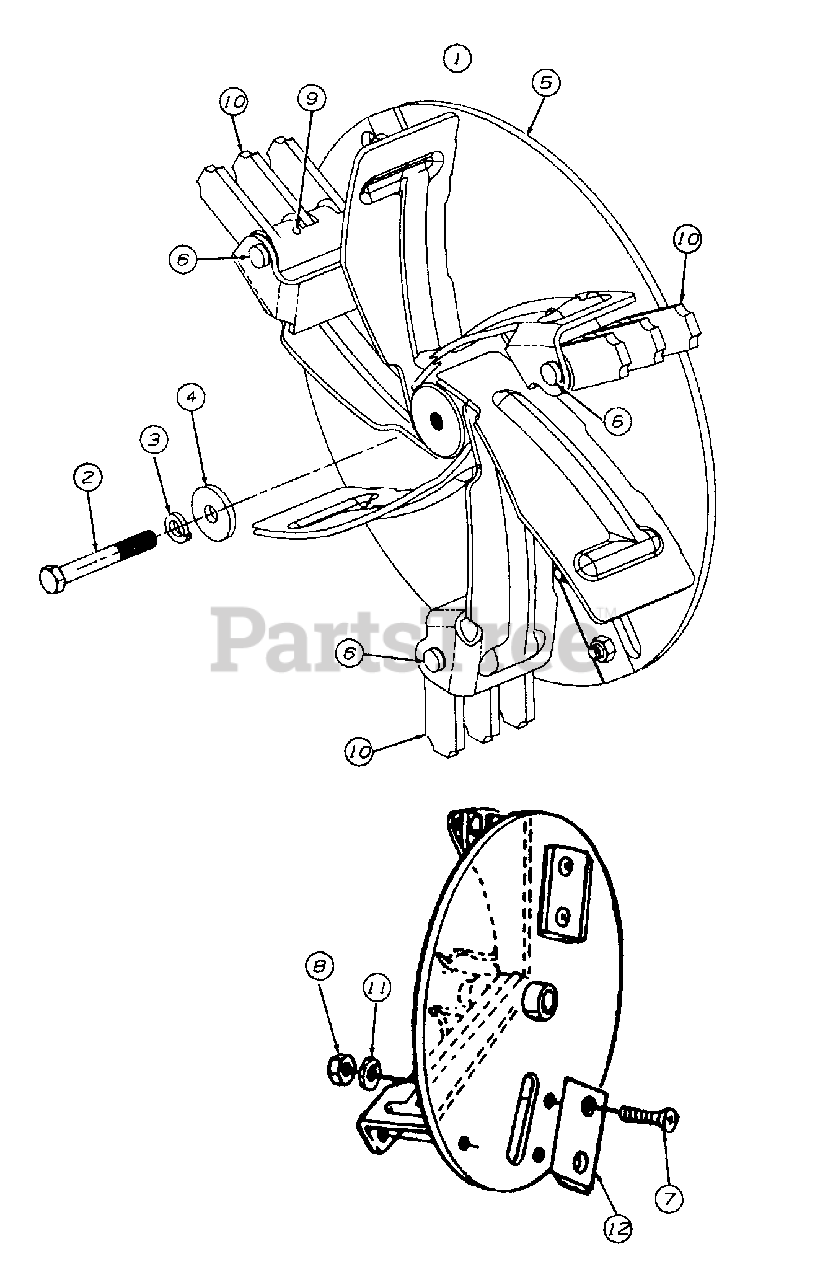

  • Title

1

MTD 681-0108

IMPELLER ASS'Y COMP.
(Superseded to 981-04090)

$372.99

$

Usually ships in 3-6 days

0

(203B)

Note: INCL. REF. NOS. 2 THRU 12)

$

$

Not available

MTD 681-0051

IMPELLER ASS'Y COMP. (103A)
(Superseded to 981-04090)

Note: INCL. REF. NOS. 2 THRU 12

$372.99

$

Usually ships in 3-6 days

0

2

MTD 710-1273

SCREW-HEX

$7.99

$

Usually ships in 3-6 days

0

3

MTD 736-0217

WASHER-LOCK

$4.49

$

In Stock, Qty 8

0

4

MTD 736-0247

WASHER-FLAT

$9.49

$

In Stock, Qty 14

0

5

MTD 681-0595

IMPELLER

Note: NEW PART

$

$

Currently unavailable

6

MTD 711-0833B

PIN-CLEVIS
(Superseded to 911-0833B)

$12.99

$

In Stock, Qty 5

0

7

MTD 710-1054

SCREW-FLAT HEAD

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0411

NUT-HEX LOCK

$4.49

$

In Stock, Qty 20+

0

9

MTD 715-0162

PIN-ROLL SPRING
(Superseded to 915-0162)

$5.49

$

In Stock, only 3 left!

0

10

MTD 719-0329

BLADE-FLAIL

$31.99

$

In Stock, Qty 5

0

11

MTD 736-0119

WASHER-LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 781-0490

BLADE-CHIPPER
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 9
