247-203B401 - MTD Shredder Vacuum (1997) (Yard-Man) Front Wheel Bracket Assembly Parts Diagram

Shredder Vacuum

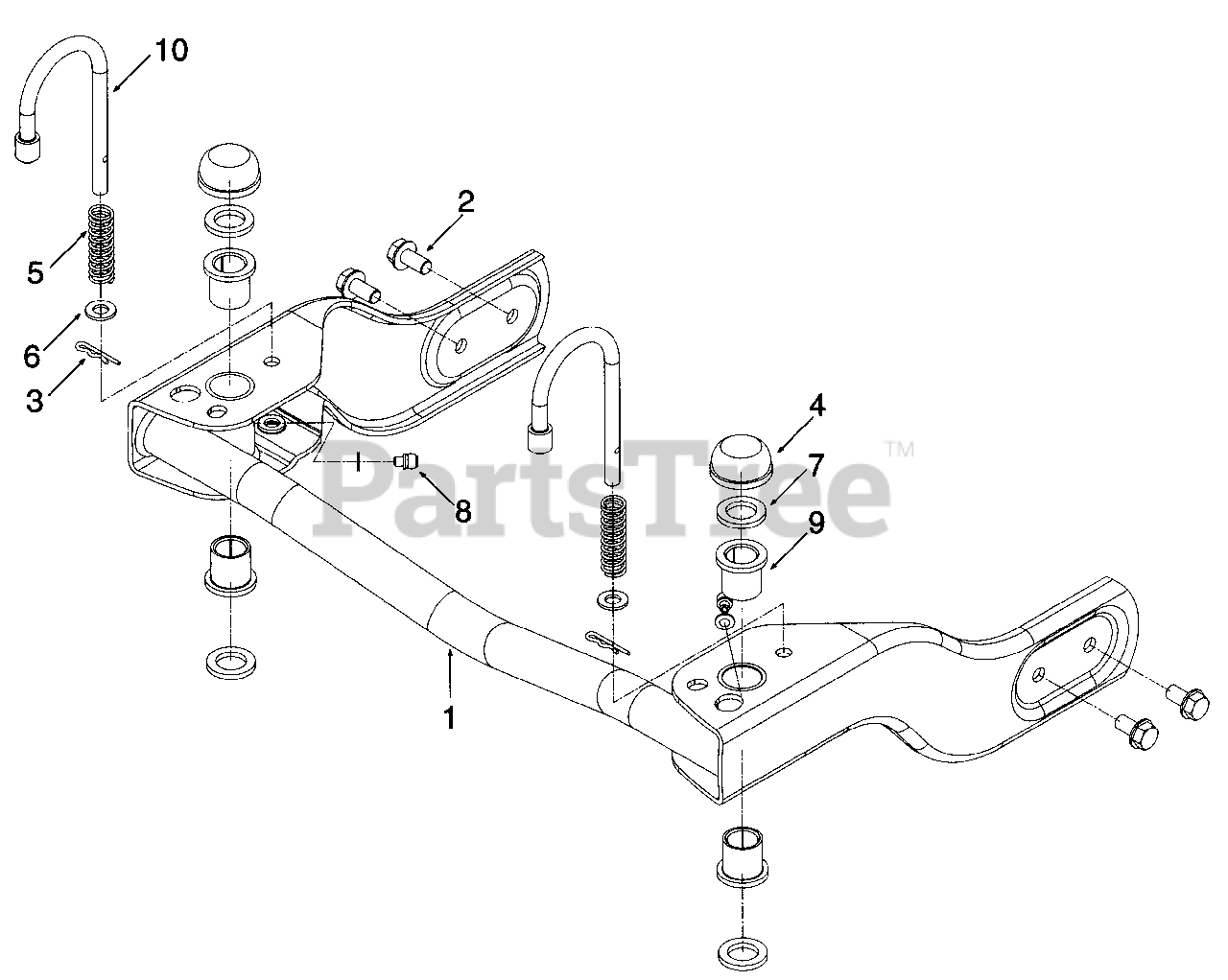

Front Wheel Bracket Assembly Parts Diagram

  • Title
1

MTD 681-0087

FRONT WHEEL BRACKET ASSEMBLY

Variations

MTD 681-0087-0483

BRACKET ASSY-FRONT WHEEL - CHARCOAL GRAY (0483)

$188.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0498

BRACKET ASSY-FRONT WHEEL - OLD CUB YELLOW (0498)

$233.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0637

BRACKET ASSY-FRONT WHEEL - POWDER BLACK (0637)

$233.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0638

BRACKET ASSY-FRONT WHEEL - MTD/TROY-BILT RED (0638)

$216.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0650

BRACKET ASSY-FRONT WHEEL - RED METALLIC (0650)

$188.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0662

BRACKET ASSY-FRONT WHEEL - OYSTER GRAY (0662)

$188.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0665

BRACKET ASSY-FRONT WHEEL - YARDMAN GREEN (0665)

$188.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0691

BRACKET ASSY-FRONT WHEEL - BLACK JACK (0691)

$233.99

$

Usually ships in 3-6 days

0

MTD 681-0087-0716

BRACKET ASSY-FRONT WHEEL - CUB YELLOW-99 (0716)

$216.99

$

Usually ships in 3-6 days

0

$188.99

$

Usually ships in 3-6 days

0

2

MTD 710-0604

HEX WASH HD TT -TAP SCR. 5/16-18 x .62 LG.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

3

MTD 714-0104

INTERNAL COTTER PIN .072 x 1.75 LG.

$4.49

$

In Stock, Qty 20+

0

4

MTD 726-0214

PUSH CAP 5/8

$10.99

$

In Stock, only 3 left!

0

5

MTD 732-0306

COMPRESSION SPRING .406 x .531 x 1.75 LG.
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

6

MTD 736-0264

FLAT WASHER .330 ID x .630 x .06

$6.99

$

In Stock, only 1 left!

0

7

MTD 736-0366

FLAT WASHER 5/8 ID 1.00 OD

$4.49

$

In Stock, only 2 left!

0

8

MTD 737-3000

FITTING 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

9

MTD 741-0487A

FLANGE BEARING .632 ID
(Superseded to 741-0487C)

Note: New Part

$7.49

$

Usually ships in 3-6 days

0

10

MTD 747-0924

LOCK PIN/FRONT WHEEL

Note: New Part

$20.99

$

In Stock, only 1 left!

0
