247.203791 (13AP79XT099) - Craftsman T1900 Lawn Tractor (2015) Hood & Grille Parts Diagram

T1900 Lawn Tractor

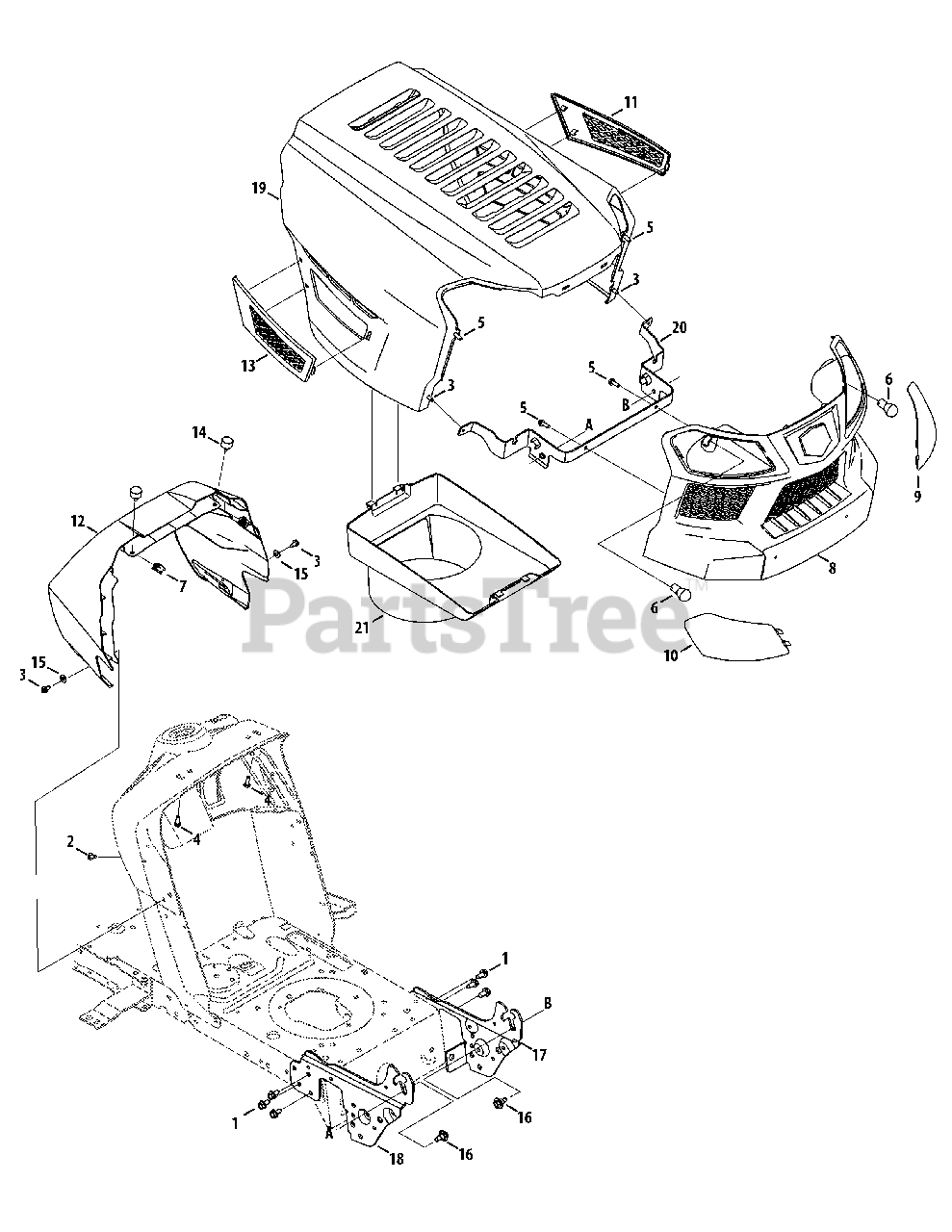

Hood & Grille Parts Diagram

  • Title

1

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-05070A

Self-Tap Screw, 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

3

MTD 710-1652

Self-Tap Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0642

Self-Tap Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0895

Plastic Screw, 1/4-10 x .75

$6.49

$

In Stock, Qty 5

0

6

MTD 925-0963

Headlight Bulb

$7.49

$

In Stock, only 4 left!

0

7

MTD 726-3054

U-Clip Nut

$4.99

$

Usually ships in 3-6 days

0

8

MTD 931-09556B

CPX Grill

$58.99

$

In Stock, only 1 left!

0

9

MTD 731-09756A

Grill Lens, LH

$9.49

$

Usually ships in 3-6 days

0

10

MTD 731-09757A

Grill Lens, RH

$9.49

$

Usually ships in 3-6 days

0

11

MTD 731-09781

Side Cover, LH

$6.49

$

In Stock, Qty 8

0

12

MTD 731-09787

Dash Collar

$25.99

$

In Stock, only 1 left!

0

13

MTD 731-09799

Side Cover, RH

$6.49

$

In Stock, only 1 left!

0

14

MTD 735-05066

Bumper, .70 DIA X .53

$5.49

$

In Stock, only 1 left!

0

15

MTD 936-0463

Flat Washer, .25 X.630 X.0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

16

MTD 738-04091A

Shoulder Screw, .43 x .29, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

17

MTD 783-05327B-0637

Pivot Support Bracket, LH

$40.99

$

Usually ships in 3-6 days

0

18

MTD 783-05328A-0637

Pivot Support Bracket, RH
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

19

MTD 783-08259-4044

Hood
(Superseded to 783-08259D-4044)

$148.99

$

In Stock, only 1 left!

0

20

MTD 783-08491-4044

Grill Pivot Bracket
(Superseded to 783-08491A-4044)

$23.99

$

Usually ships in 3-6 days

0

21

MTD 931-10874

Plenum
(Superseded to 931-10874A)

$50.99

$

Usually ships in 3-6 days

0
