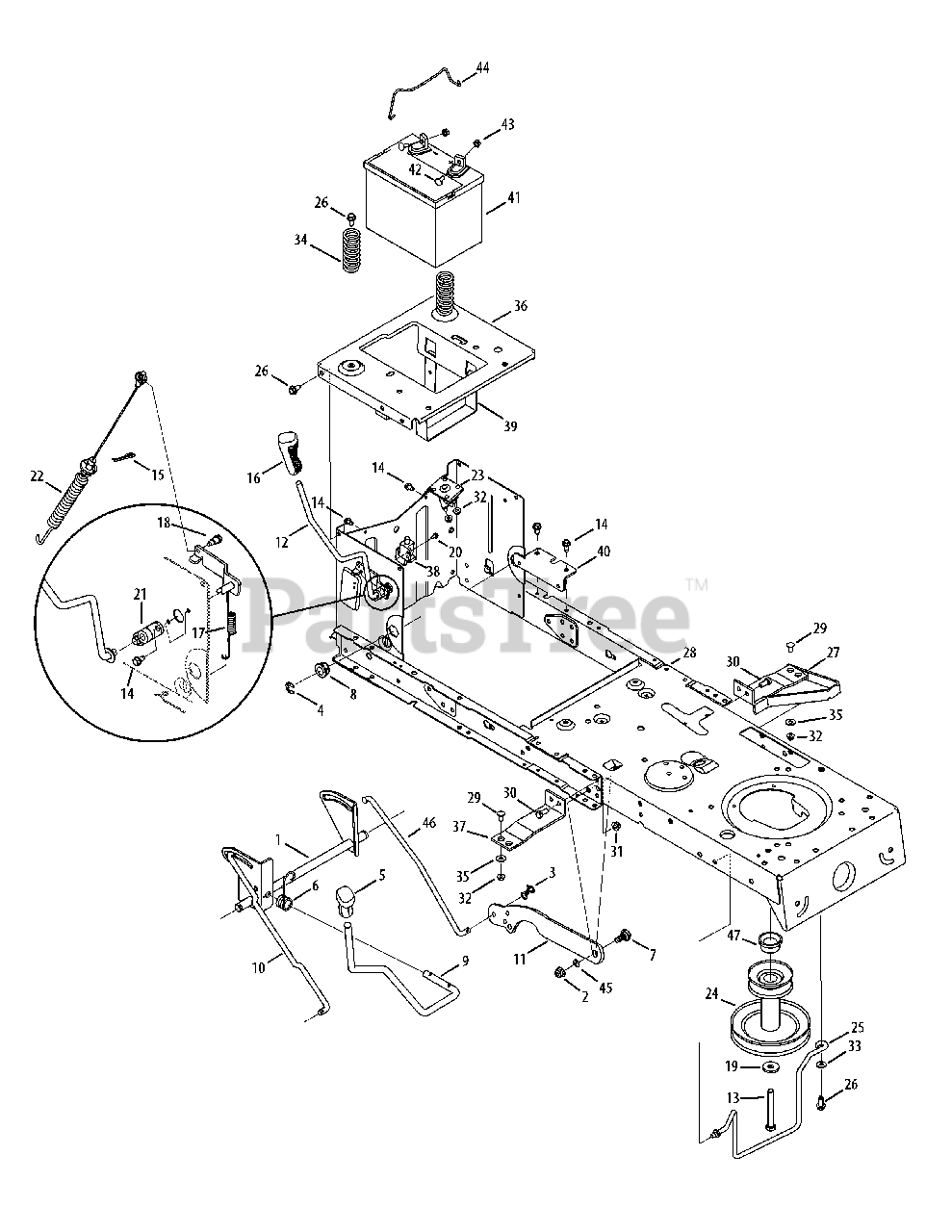

247.203791 (13AP79XT099) - Craftsman T1900 Lawn Tractor (2015) Frame, Battery & PTO Parts Diagram

T1900 Lawn Tractor

Frame, Battery & PTO Parts Diagram

  • Title

1

MTD 683-04334-0637

Lift Assembly

$54.99

$

In Stock, only 2 left!

0

2

MTD 712-04065

Nut, Hex Flange Insert Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

3

MTD 714-04040

Bow-Tie Pin, 91, RH

$1.49

$

In Stock, Qty 20+

0

4

MTD 716-0106A

E-ring, .625 Shaft

$5.49

$

In Stock, only 2 left!

0

5

MTD 720-0298

Grip, Handle

$43.99

$

Usually ships in 3-6 days

0

6

MTD 732-04438

Torsion Spring

$10.99

$

Usually ships in 3-6 days

0

7

MTD 938-0380

Shoulder Bolt, 3/8-16 x .50 x .270
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

8

MTD 941-0225

Bearing, Hex Flange,

$7.49

$

In Stock, Qty 20+

0

9

MTD 747-04653A

Deck Lift Handle

$45.99

$

In Stock, only 4 left!

0

10

MTD 747-06237A

Lift Rod, RH

$10.99

$

Usually ships in 3-6 days

0

11

MTD 783-0678C-0637

Lift Arm

$29.99

$

In Stock, only 1 left!

0

12

MTD 647-05041-0637

PTO Handle Assembly

$11.99

$

In Stock, only 1 left!

0

13

MTD 710-3157A

Screw, Hx. Hd., 7/16-20 x 3.25

$10.99

$

In Stock, Qty 20+

0

14

MTD 710-0599

Screw, Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

15

MTD 714-04040

Click Pin

$1.49

$

In Stock, Qty 20+

0

16

MTD 720-04049A

Handle Grip

$16.99

$

In Stock, only 1 left!

0

17

MTD 732-04276A

PTO Spring, Extension

$9.99

$

In Stock, only 1 left!

0

18

MTD 738-04425

Shoulder Bolt, 1/4-28 x .342 x .335

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0322

Washer, Flat, .450 x .250 x .164

$9.49

$

In Stock, Qty 8

0

20

MTD 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

21

MTD 741-04119A

PTO Bearing

$4.99

$

In Stock, Qty 10

0

22

MTD 946-05124A

Deck Engagement Cable

$24.99

$

In Stock, Qty 8

0

23

MTD 725-06153

12v. Solenoid
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 8

0

24

MTD 956-04067A

Engine Pulley
(Superseded to 956-04067B)

$81.99

$

In Stock, only 1 left!

0

25

MTD 747-04857

Belt Keeper Rod Assembly

$22.99

$

In Stock, Qty 11

0

26

MTD 710-04484

Screw, Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

27

MTD 683-04195-0637

Support Bracket Assembly

$42.99

$

Usually ships in 3-6 days

0

28

MTD 683-05139-0637

Rider Frame Assembly
(Superseded to 683-05139A-0637)

$208.99

$

Usually ships in 3-6 days

0

29

MTD 710-0703

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-3008

Screw, Hx. Hd., 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

31

MTD 712-04063

Nut, Hex Flange Insert Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-04064

Nut, Hex Flange Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

MTD 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

34

MTD 732-04035

Spring, Compress., 1.28 x 3.125

$10.99

$

In Stock, only 4 left!

0

35

MTD 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

36

MTD 783-04548D-0637

Seat Bracket Frame

$58.99

$

Usually ships in 3-6 days

0

37

MTD 783-04637-0637

Running Board Bracket

$16.99

$

Usually ships in 3-6 days

0

38

MTD 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 14

0

39

MTD 783-04869A-0637

Battery Bracket

$9.49

$

In Stock, Qty 20+

0

40

MTD 783-05389A-0637

Frame Brace Bracket

$8.49

$

Usually ships in 3-6 days

0

41

MTD 925-1707D

Battery

$

$

Not available

42

MTD 738-1132

Screw, Shoulder, .250 x .150

$5.49

$

In Stock, only 2 left!

0

43

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

44

MTD 683-04448-0637

Battery Rod

$10.99

$

In Stock, Qty 14

0

45

MTD 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

46

MTD 747-06253

Lift Rod, LH

$10.99

$

In Stock, only 1 left!

0

47

MTD 750-0956

Spacer, 1.010 x 1.400 x .825

$19.99

$

In Stock, only 2 left!

0
